NMB1.5 Series

Catalog

INDUCTIVE SEN 1.5MM PNP PTFE COA

Part	Sensor Type	Ingress Protection	Indicator	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Output Type	Material - Body	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Shielding	Sensing Distance
Pepperl+Fuchs, Inc. NMB1.5-8GM50-E2-C-FE-V1	Inductive	IP67	LED	Connector	-25 °C	75 °C	3-Wire PNP-NO	Stainless Steel	Cylinder Threaded - M8	10 VDC	30 VDC	Unshielded	0.059 "

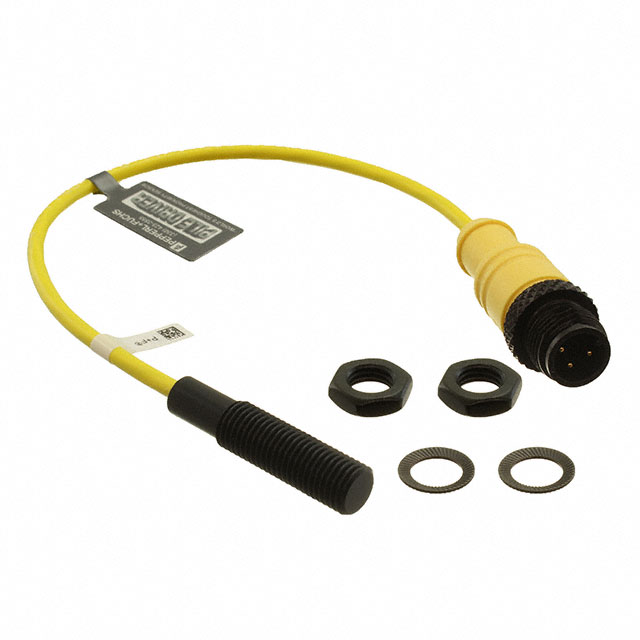

Pepperl+Fuchs, Inc. NMB1.5-8GM35-E2-C-FE-150MM-V1	Inductive	IP67	LED	Cable with Connector	-25 °C	75 °C	3-Wire PNP-NO	Stainless Steel	Cylinder Threaded - M8	10 VDC	30 VDC	Unshielded	0.059 "

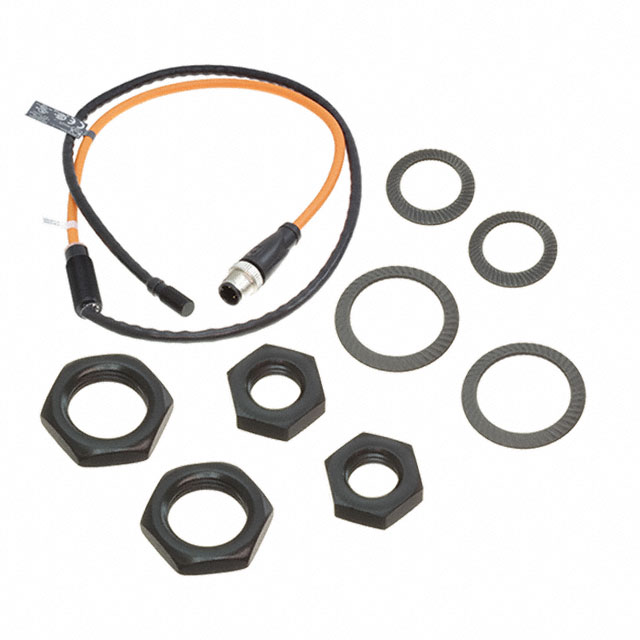

Pepperl+Fuchs, Inc. NMB1.5-8GM23-Z3-C-FE-850MM-V1	Inductive	IP67	LED	Cable with Connector	-25 °C	70 °C	2-Wire SCR-NO	Stainless Steel	Cylinder Threaded - M8	6 V	30 VDC	Unshielded	0.059 "

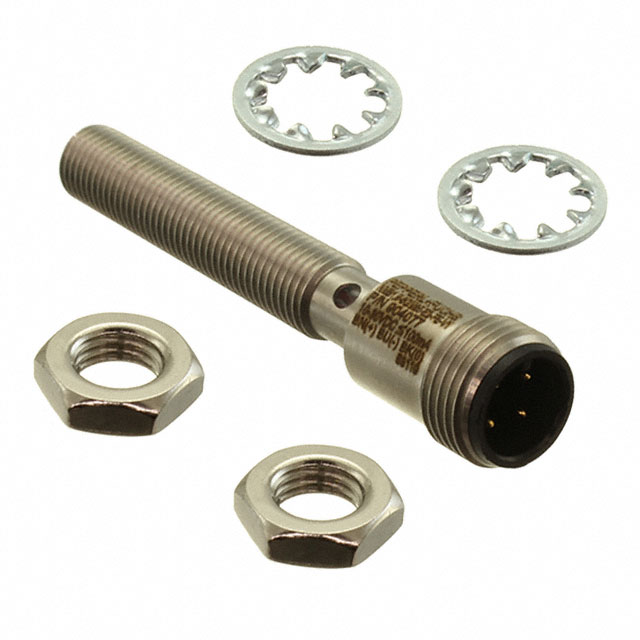

Pepperl+Fuchs, Inc. NMB1.5-8GM65-E2-FE-V1	Inductive	IP67	LED	Connector	-25 °C	70 °C	3-Wire PNP-NO	Stainless Steel	Cylinder Threaded - M8	10 VDC	30 VDC	Unshielded	0.059 "

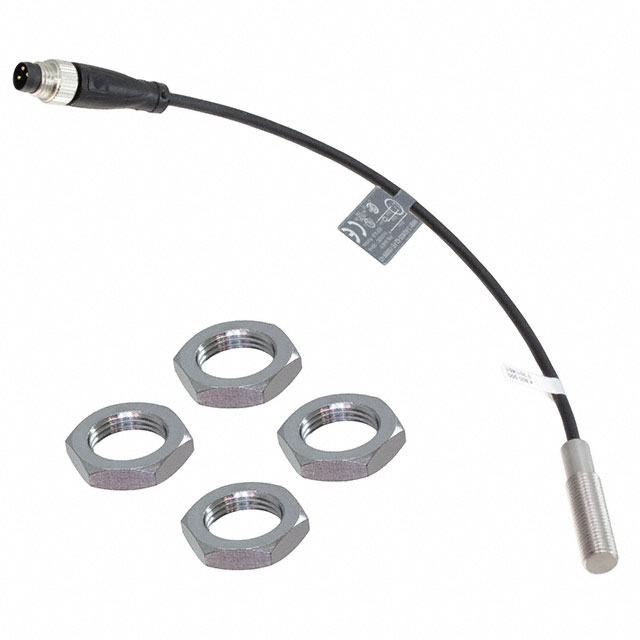

Pepperl+Fuchs, Inc. NMB1.5-8GM35-E2-FE-150MM-V3	Inductive	IP67	LED	Cable with Connector	-25 °C	70 °C	3-Wire PNP-NO	Stainless Steel	Cylinder Threaded - M8	10 VDC	30 VDC	Unshielded	0.059 "
Pepperl+Fuchs, Inc. NMB1.5-8GM35-E2-C-FE-150MM-V3	Inductive	IP67	LED	Cable with Connector	-25 °C	75 °C	3-Wire PNP-NO	Stainless Steel	Cylinder Threaded - M8	10 VDC	30 VDC	Unshielded	0.059 "
