MS27466T17B Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSNG MALE 55POS PNL MT

Part	Contact Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Housing Color	Qualification	Orientation	Ingress Protection	Grade	Shell Finish	Insert Material	Contact Size Options	Type	Mounting Feature	Contact Shape	Mounting Type	Number of Positions	Shielding	Connector Type	Note	Shell Material	Fastening Type	Applications	Termination	Contact Material	Contact Finish - Mating	Color	Contact Finish Thickness - Mating	Shell Size - Insert Length	Shell Size - Insert Width	Primary Material	Current Rating	Contact Size	Shell Size (MIL)	Voltage Rating	Material Flammability Rating
Amphenol Aerospace Operations MS27466T17B35PB-LC	Crimp	35	17	-65 °C	175 °C	Olive	MIL-DTL-38999 Series I	B	Environment Resistant	Military	Cadmium	Thermoplastic	22D	For Male Pins	Flange	Circular	Panel Mount	55	Unshielded	Receptacle Housing	Contacts Not Included	Aluminum Alloy	Bayonet Lock
Amphenol Aerospace Operations MS27466T17B8AB
Amphenol Aerospace Operations MS27466T17B35BB

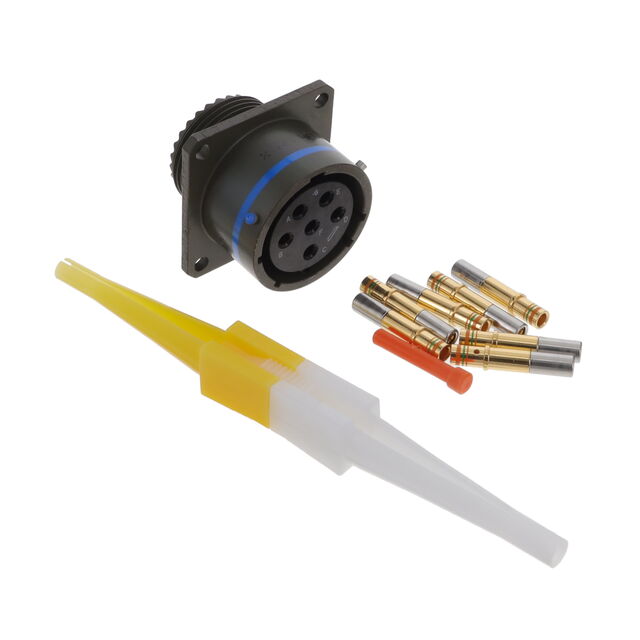

Amphenol Aerospace Operations MS27466T17B6S				-65 °C	175 °C		MIL-DTL-38999 Series I	N (Normal)	Environment Resistant	Military	Nickel Olive Drab Cadmium	Plastic			Flange		Panel Mount	6		Female Sockets Receptacle		Aluminum	Bayonet Lock	Automotive Aviation Military	Crimp	Copper Alloy	Gold	Olive Drab	50 µin	17 mm	6 mm	Metal
Amphenol Aerospace Operations MS27466T17B26P		26	17	-65 °C	175 °C		MIL-DTL-38999 Series I	N (Normal)	Environment Resistant	Military	Olive Drab Cadmium	Thermoplastic			Flange		Panel Mount	26		Male Pins Receptacle		Aluminum Alloy	Bayonet Lock	Aviation Communication Systems Marine Medical Military	Crimp	Copper Alloy	Gold	Olive Drab	50 µin			Metal	7.5 A
Amphenol Aerospace Operations MS27466T17B8PB-LC	Crimp			-65 °C	175 °C	Olive	MIL-DTL-38999 Series I	B	Environment Resistant	Military	Cadmium	Thermoplastic		For Male Pins	Flange	Circular	Panel Mount	8	Unshielded	Receptacle Housing	Contacts Not Included	Aluminum Alloy	Bayonet Lock							17 mm	8 mm			16 S
Amphenol Aerospace Operations MS27466T17B26SB		26	17	-65 °C	175 °C		MIL-DTL-38999 Series I	B	Environment Resistant	Military	Olive Green Cadmium	Thermoplastic			Flange		Panel Mount	26	Shielded	Female Sockets Receptacle		Aluminum Alloy	Bayonet Lock	Aviation Communication Systems Marine Medical Military	Crimp	Copper Alloy	Gold	Olive Green	50 µin			Metal	7.5 A		E
Amphenol Aerospace Operations MS27466T17B8AB	Crimp			-65 °C	175 °C	Olive	MIL-DTL-38999 Series I	B	Environment Resistant	Military	Cadmium	Thermoplastic		For Male Pins	Flange	Circular	Panel Mount	8	Unshielded	Receptacle Housing	Contacts Not Included	Aluminum Alloy	Bayonet Lock							17 mm	8 mm			16 S	E
Amphenol Aerospace Operations MS27466T17B35AB
Amphenol Aerospace Operations MS27466T17B6S				-65 °C	175 °C		MIL-DTL-38999 Series I	N (Normal)	Environment Resistant	Military	Nickel Olive Drab Cadmium	Thermoplastic			Flange		Panel Mount	6		Female Sockets Receptacle		Aluminum	Bayonet Lock	Aerospace Aviation Military	Crimp	Copper Alloy	Gold	Olive Drab	50 µin	17 mm	6 mm	Metal	23 A			500 V	UL94 V-0
