5226279 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

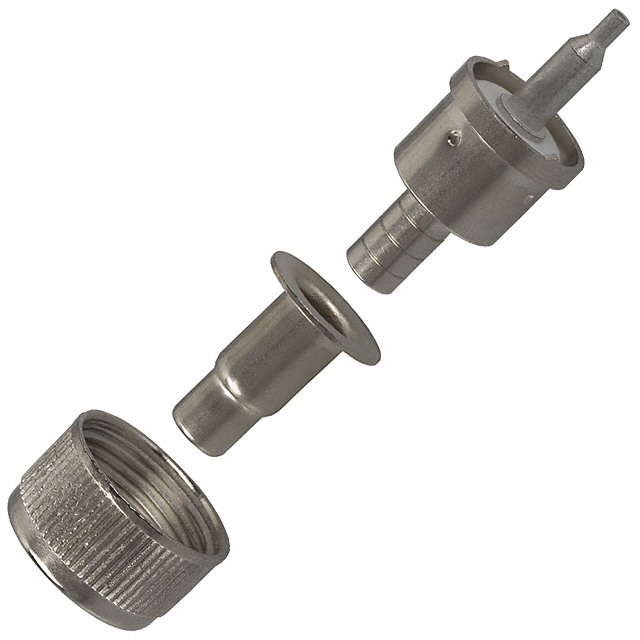

CONN UHF PLUG STR CRIMP
| Part | Includes | Includes Total Count | Body Material | Voltage Rating | Dielectric Material | Body Finish | Center Contact Plating | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Impedance | Frequency - Max | Housing Color | Number of Ports | Fastening Type | Connector Style | Mounting Type | Cable Group | Contact Termination | Connector Type | Shield Termination | Cable Group Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Collar Connector Ferrule | 3 pcs | Brass | 500 V | Polypropylene (PP) | Nickel | Tin | 500 cycles | -55 °C | 85 °C | Non-Constant | 500 MHz | Silver | 1 | Threaded | UHF | Free Hanging (In-Line) | 58A 58B 58C RG-58 | Crimp | Male Pin Plug | Crimp | |
 TE Connectivity AMP Connectors | Collar Connector Ferrule | 3 pcs | Brass | 500 V | Polypropylene (PP) | Nickel | Tin | 500 cycles | -55 °C | 85 °C | Non-Constant | 500 MHz | Silver | 1 | Threaded | UHF | Free Hanging (In-Line) | 213 RG-8 | Crimp | Male Pin Plug | Crimp | 8 A |
