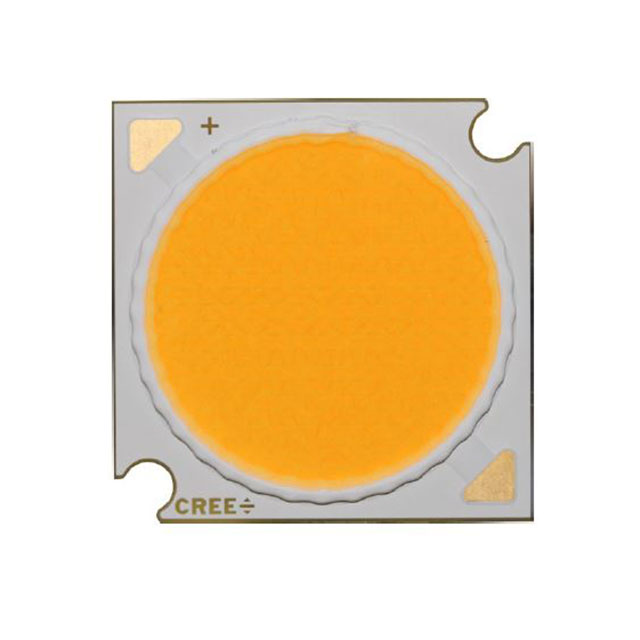

CMA3090 Series

Catalog

LED COB XLAMP WARM WHT SQU 2700K

...

Part	Type	Color	Viewing Angle	CRI (Color Rendering Index)	Height	Lumens/Watt	Luminous Flux (Typical)	Configuration	Current - Max	Light Emitting Surface (LES) Diameter	Voltage - Forward (Vf) (Typ)	Lens Type	CCT (K)	CCT Description	Temperature - Test	Current - Test	Size / Dimension Length	Size / Dimension Width	Luminous Flux
CreeLED, Inc. CMA3090-0000-000R0U0A27H	Chip On Board (COB)	Warm White	115 °	90	1.7 mm	116 lm/W	9461 lm	Square	2.4 A	23 mm	68 V	Flat	2700 K	2-Step MacAdam Ellipse	85 °C	1.2 A	27.35 mm	27.35 mm
CreeLED, Inc. CMA3090-0000-00PR0U0A35G	Chip On Board (COB)	Warm White	115 °	90	1.7 mm	138 lm/W		Square	2.4 A	23 mm	68 V	Flat	3500 K	3-Step MacAdam Ellipse	85 °C	1.2 A	27.35 mm	27.35 mm	11225 lm
CreeLED, Inc. CMA3090-0000-00PR0U0A40G	Chip On Board (COB)	Neutral White	115 °	90	1.7 mm	139 lm/W		Square	2.4 A	23 mm	68 V	Flat	4000 K	2-Step MacAdam Ellipse	85 °C	1.2 A	27.35 mm	27.35 mm	11382 lm
CreeLED, Inc. CMA3090-0000-000Q0H0A22G	Chip On Board (COB)	Warm White	115 °	80	1.7 mm	122 lm/W	9909 lm	Square	3.6 A	23 mm	45 V	Flat	2200 K	3-Step MacAdam Ellipse	85 °C	1.8 A	27.35 mm	27.35 mm
CreeLED, Inc. CMA3090-0000-000R0Z0A30H	Chip On Board (COB)	Warm White	115 °	95	1.7 mm	106 lm/W	8682 lm	Square	2.4 A	23 mm	68 V	Flat	3000 K	3-Step MacAdam Ellipse	85 °C	1.2 A	27.35 mm	27.35 mm
CreeLED, Inc. CMA3090-0000-000R0Z0A40H	Chip On Board (COB)		115 °		1.7 mm			Square	2.4 A	23 mm	68 V	Flat			85 °C	1.2 A	27.35 mm	27.35 mm
CreeLED, Inc. CMA3090-0000-00PQ0U0A31Q	Chip On Board (COB)	Warm White	115 °	90	1.7 mm			Square	3.6 A	23 mm	45 V	Flat	3100 K	3-Step MacAdam Ellipse	85 °C	1.8 A	27.35 mm	27.35 mm
CreeLED, Inc. CMA3090-0000-000R0U0A30Q	Chip On Board (COB)	Warm White	115 °	90	1.7 mm	121 lm/W	9909 lm	Square	2.4 A	23 mm	68 V	Flat	3000 K	3-Step MacAdam Ellipse	85 °C	1.2 A	27.35 mm	27.35 mm
CreeLED, Inc. CMA3090-0000-000Q0Z0A30H	Chip On Board (COB)	Warm White	115 °	95	1.7 mm	107 lm/W	8682 lm	Square	3.6 A	23 mm	45 V	Flat	3000 K	3-Step MacAdam Ellipse	85 °C	1.8 A	27.35 mm	27.35 mm
CreeLED, Inc. CMA3090-0000-00PR0U0A40G	Chip On Board (COB)	Neutral White	115 °	90	1.7 mm	139 lm/W		Square	2.4 A	23 mm	68 V	Flat	4000 K	2-Step MacAdam Ellipse	85 °C	1.2 A	27.35 mm	27.35 mm	11382 lm
