RTS712 Series

Catalog

CONN RCPT HSNG MALE 10POS PNL MT

Part	Material Flammability Rating	Type	Contact Type	Contact Size	Shell Material	Number of Positions	Orientation	Shell Size - Insert Width	Shell Size - Insert Length	Fastening Type	Includes Total Count	Includes	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Feature	Note	Ingress Protection IP Rating	Ingress Protection Description	Contact Shape	Housing Color	Connector Type	Shielding	Insert Material	Features	Position Types

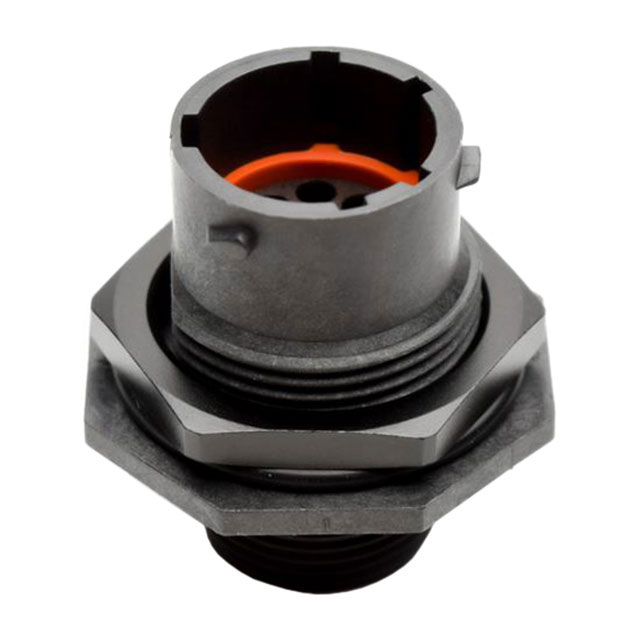

McGill Microwave Systems RTS712N10P03	UL94 V-0	For Male Pins	Crimp	20	Thermoplastic	10	N (Normal)	10 mm	12 mm	Bayonet Lock	4 pcs	Connector Gasket Nut O-Ring	Panel Mount	125 °C	-40 °C	Bulkhead Front Side Nut	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Black	Receptacle Housing	Unshielded	Thermoplastic

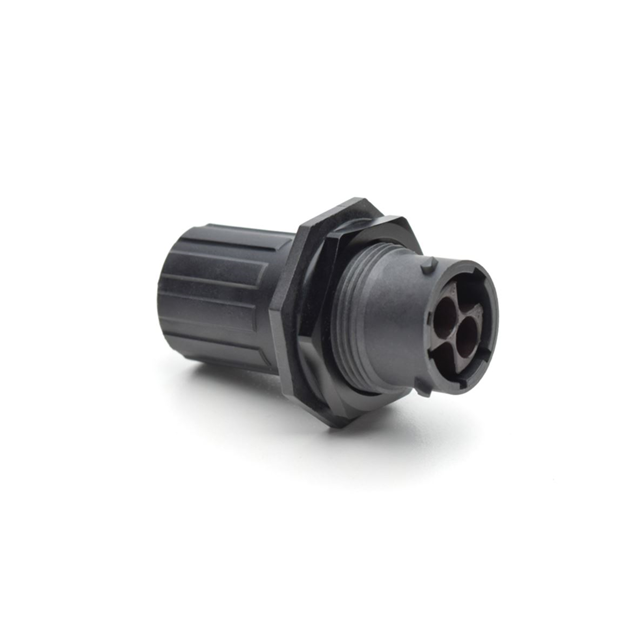

McGill Microwave Systems RTS712N2PHEC03	UL94 V-0	For Male Pins	Crimp	2.5 mm 20	Thermoplastic	4	N (Normal)	2 mm	12 mm	Bayonet Lock	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Panel Mount	125 °C	-40 °C	Bulkhead Front Side Nut	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Black	Receptacle Housing	Unshielded	Thermoplastic	Backshell
McGill Microwave Systems RTS712N4S03	UL94 V-0	For Female Sockets	Crimp	16 S	Thermoplastic	4	N (Normal)	4 mm	12 mm	Bayonet Lock	4 pcs	Connector Gasket Nut O-Ring	Panel Mount	125 °C	-40 °C	Bulkhead Front Side Nut	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Black	Receptacle Housing	Unshielded	Thermoplastic		PE

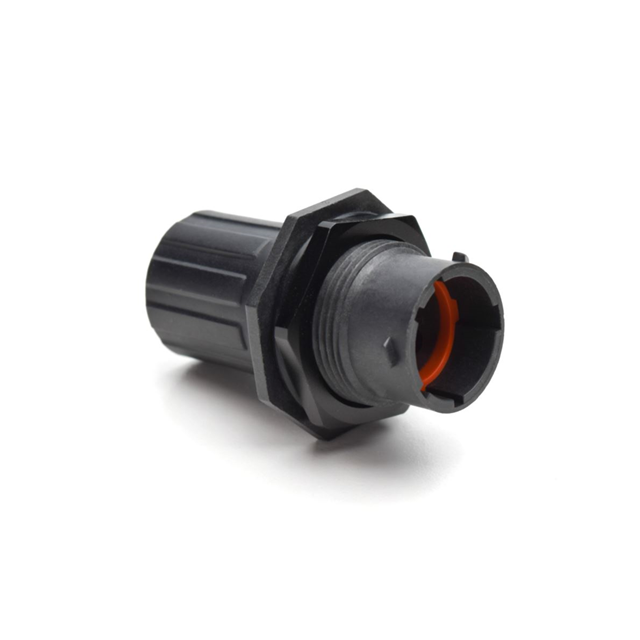

McGill Microwave Systems RTS712N3PHEC03	UL94 V-0	For Male Pins	Crimp	16 S	Thermoplastic	3	N (Normal)	3 mm	12 mm	Bayonet Lock	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Panel Mount	125 °C	-40 °C	Bulkhead Front Side Nut	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Black	Receptacle Housing	Unshielded	Thermoplastic	Backshell

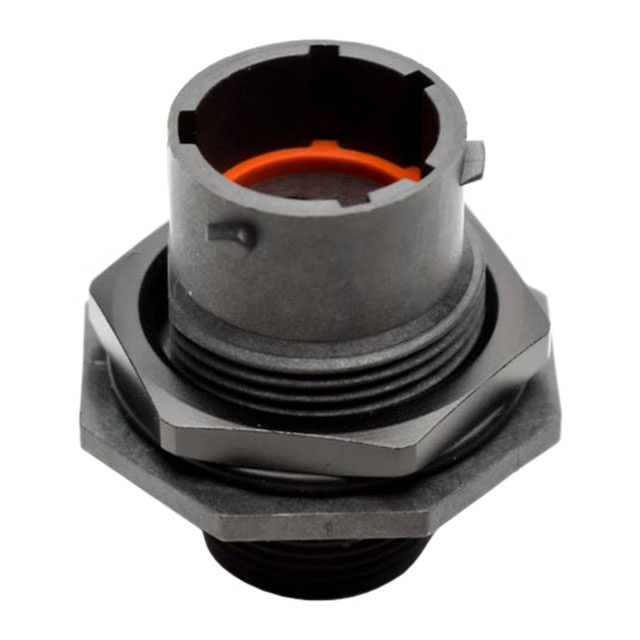

McGill Microwave Systems RTS712N3P03	UL94 V-0	For Male Pins	Crimp	16 S	Thermoplastic	3	N (Normal)	3 mm	12 mm	Bayonet Lock	4 pcs	Connector Gasket Nut O-Ring	Panel Mount	125 °C	-40 °C	Bulkhead Front Side Nut	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Black	Receptacle Housing	Unshielded	Thermoplastic

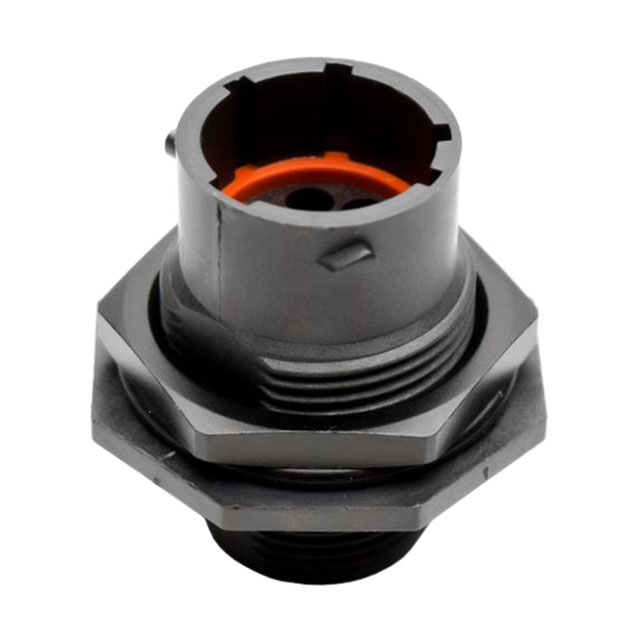

McGill Microwave Systems RTS712N8S03	UL94 V-0	For Female Sockets	Crimp	16 S	Thermoplastic	8	N (Normal)	8 mm	12 mm	Bayonet Lock	4 pcs	Connector Gasket Nut O-Ring	Panel Mount	125 °C	-40 °C	Bulkhead Front Side Nut	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Black	Receptacle Housing	Unshielded	Thermoplastic

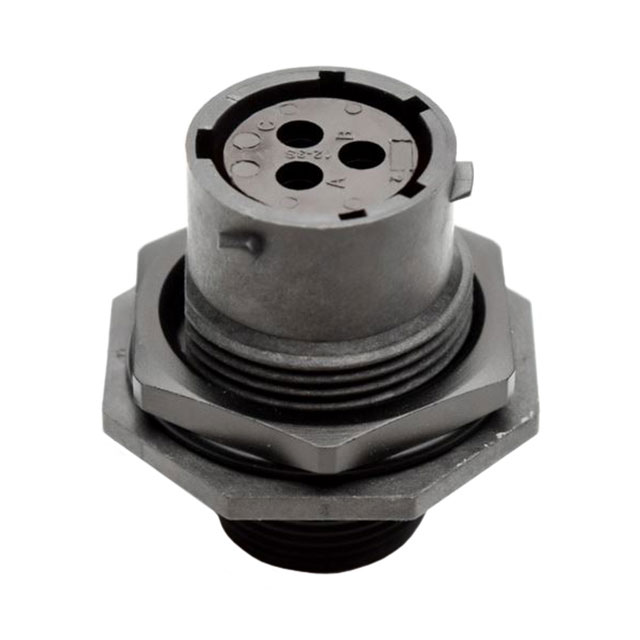

McGill Microwave Systems RTS712N3S03	UL94 V-0	For Female Sockets	Crimp	16 S	Thermoplastic	3	N (Normal)	3 mm	12 mm	Bayonet Lock	4 pcs	Connector Gasket Nut O-Ring	Panel Mount	125 °C	-40 °C	Bulkhead Front Side Nut	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Black	Receptacle Housing	Unshielded	Thermoplastic
McGill Microwave Systems RTS712N4P03	UL94 V-0	For Male Pins	Crimp	16 S	Thermoplastic	4	N (Normal)	4 mm	12 mm	Bayonet Lock	4 pcs	Connector Gasket Nut O-Ring	Panel Mount	125 °C	-40 °C	Bulkhead Front Side Nut	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Black	Receptacle Housing	Unshielded	Thermoplastic		PE
