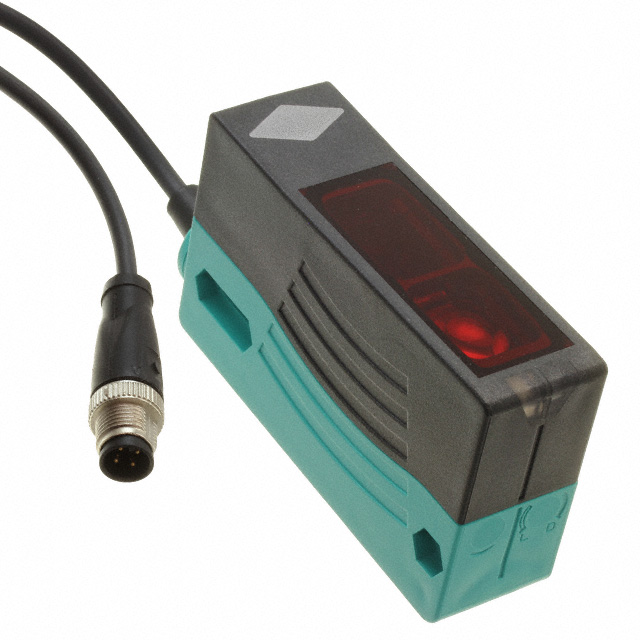

LD28-F1 Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K
PHOTOELECTRIC (AUTOMATION)
| Part | Adjustment Type | Ingress Protection | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Connection Method | Cable Length | Sensing Distance Minimum | Sensing Distance Maximum | Light Source | Sensing Method | Output Configuration | Response Time | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | Adjustable | IP67 | 10 VDC | 30 VDC | Cable with Connector | 9.06 in | 0 \ | 2559.055 \ | Red LED | Through-Beam | Light-ON\Dark-ON PNP - Open Collector | 20 ms | 60 °C | -40 °C |
