CLM3C Series

Catalog

LED AMBER DIFFUSED 2PLCC SMD

Part	Lens Transparency	Package Name	Voltage - Forward (Vf) (Typ)	Current - Test	Height (Max)	Color	Size / Dimension Width	Size / Dimension Length	Package / Case	Lens Style	Mounting Type	Wavelength - Dominant	Lens Color	Configuration	Millicandela Rating	Wavelength - Dominant (Color Temperature)
CreeLED, Inc. CLM3C-AKW-CUAVB253	Diffused	2-PLCC	2.1 V	20 mA	1.4 mm	Amber	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount	591 nm	White	Standard	700 mcd

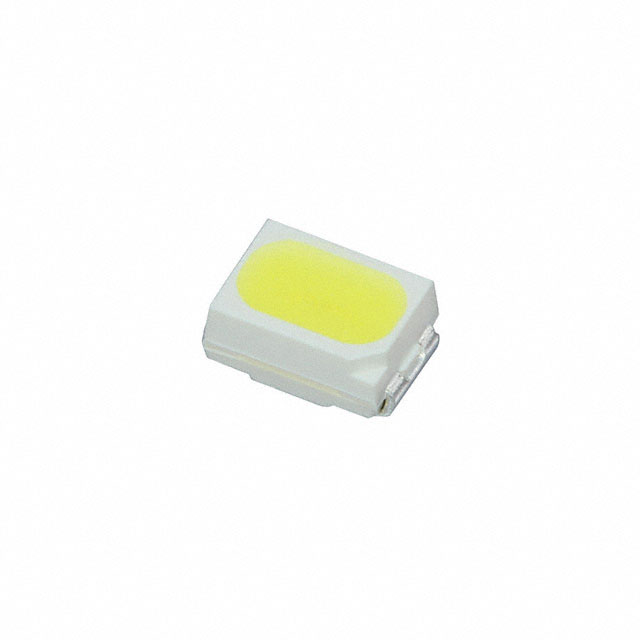

CreeLED, Inc. CLM3C-MKW-CWAXB133	Diffused	2-PLCC	3.2 V	20 mA	1.4 mm	Warm White	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount		Yellow	Standard	1960 mcd	3200 K
CreeLED, Inc. CLM3C-RKW-CUBVBAA3	Diffused	2-PLCC	2.1 V	20 mA	1.4 mm	Red	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount	624 nm	White	Standard	740 mcd
CreeLED, Inc. CLM3C-MKW-CWBXB233	Diffused	2-PLCC	3.2 V	20 mA	1.4 mm	Warm White	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount		Yellow	Standard	2100 mcd	3200 K
CreeLED, Inc. CLM3C-RKW-CUBWAAA3	Clear	2-PLCC	2.1 V	20 mA	1.4 mm	Red	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount	624 nm	Colorless	Standard	980 mcd
CreeLED, Inc. CLM3C-WKW-CXAYA453	Diffused	2-PLCC	3.2 V	20 mA	1.4 mm	Cool White	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount		Yellow	Standard	2675 mcd	5500 K
CreeLED, Inc. CLM3C-MKW-CWAXB233	Diffused	2-PLCC	3.2 V	20 mA	1.4 mm	Warm White	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount		Yellow	Standard	1960 mcd	3200 K
CreeLED, Inc. CLM3C-WKW-CWBYA453	Diffused	2-PLCC	3.2 V	20 mA	1.4 mm	Cool White	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount		Yellow	Standard	2475 mcd	5500 K
CreeLED, Inc. CLM3C-MKW-CWBXB233	Diffused	2-PLCC	3.2 V	20 mA	1.4 mm	Warm White	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount		Yellow	Standard	2100 mcd	3200 K
CreeLED, Inc. CLM3C-WKW-CWBYA453	Diffused	2-PLCC	3.2 V	20 mA	1.4 mm	Cool White	2 mm	2.7 mm	2-SMD J-Lead	Flat Top Rectangle	Surface Mount		Yellow	Standard	2475 mcd	5500 K
