IWTX Series
Manufacturer: Vishay Dale
Beta
⌘K
WIRELESS CHARGING COILS 6.3UH 5% WRLESS CHRG TRANSMITTR COIL/SHL
| Part | Type | Operating Temperature (Min) | Operating Temperature (Max) | Q | DC Resistance (DCR) | Inductance | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Current Rating | Function | Current - Saturation (Isat) | Tolerance | DC Resistance (DCR) (Max) | Size / Dimension Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

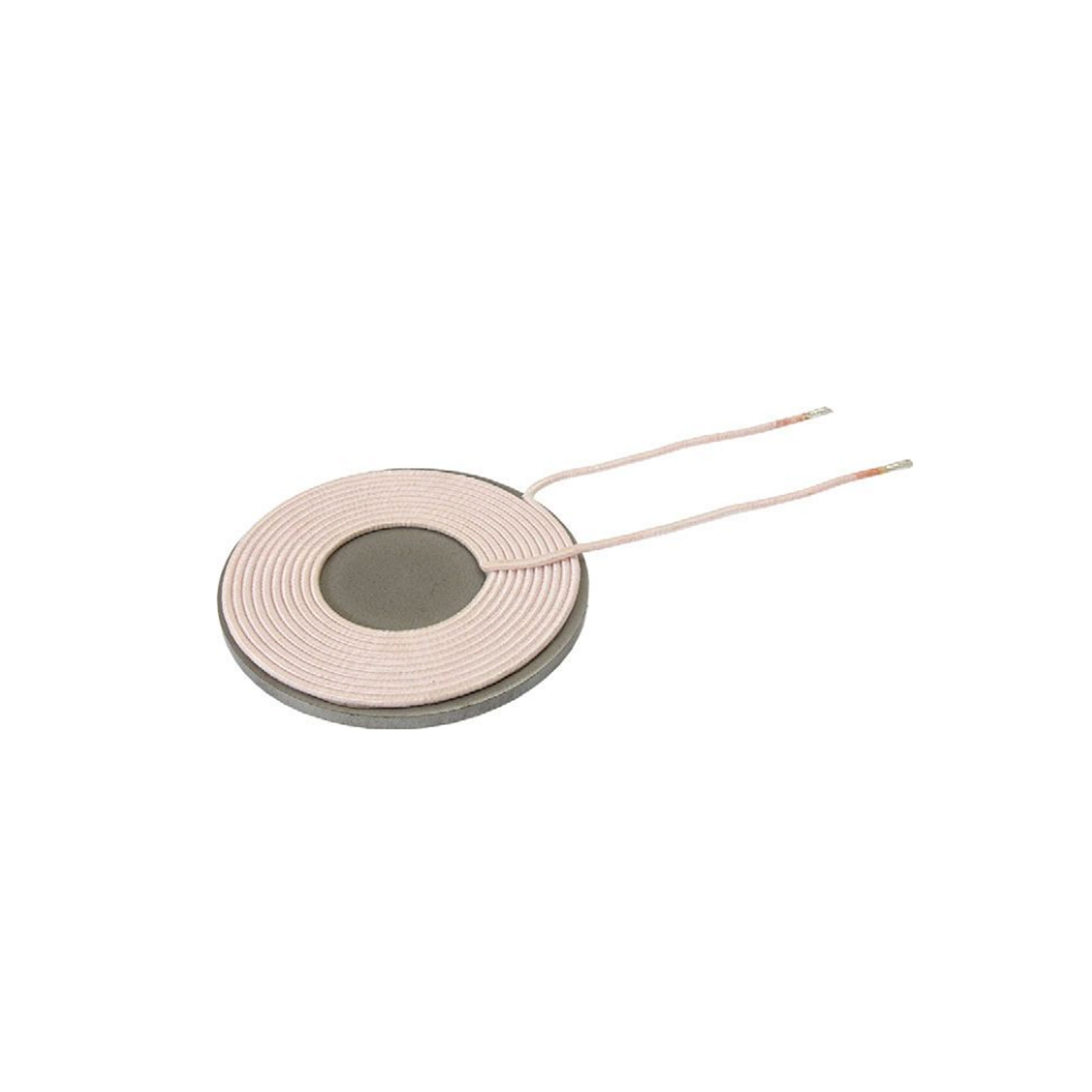

 Vishay Dale | 1 Coil 1 Layer | -40 °C | 105 °C | 190 | 40 mOhm | 6.3 µH | 1.81 in | 1.81 in | 0.22 in | 7 A | Transmitter | 22 A | 5 % | ||

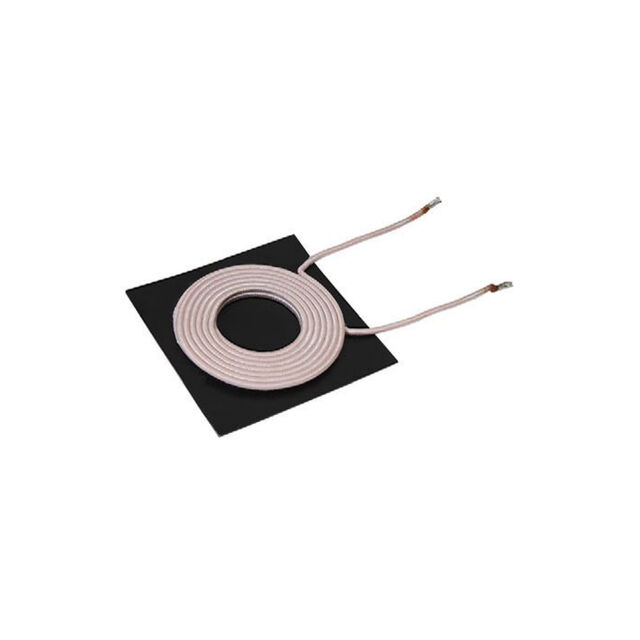

 Vishay Dale | 1 Coil 1 Layer | -40 °C | 85 °C | 200 | 10 µH | 0.26 in | 9 A | Transmitter | 10 % | 29.7 mOhm | 1.97 in | ||||
 Vishay Dale | 1 Coil 1 Layer | -40 °C | 85 °C | 200 | 10 µH | 0.18 in | 9 A | Transmitter | 10 % | 29.7 mOhm | 1.97 in |
