OLED-0 Series

Catalog

OLED DISPLAYS & ACCESSORIES 20X4 WHITE CHARACTER OLED

Part	Number of Characters	Display Type	Voltage - Supply	Character Width (Dots)	Character Height (Dots)	Display Mode	Dot Size Width	Dot Size Height	Interface	Character Height	Character Width	Text Color	Display Rows	Display Columns	Viewing Area Length	Viewing Area Width	Outline Length	Outline Height	Outline Width	Dot Pitch Width	Dot Pitch Height	Viewing Area Height	Graphics Color	Dot Pixels (Horizontal)	Dot Pixels (Vertical)
Vishay Dale O020N004BWPP5N0000	80 characters	OLED	5 VDC	5 Dots	8 Dots	Passive	0.54 mm	0.55 mm	SPI	4.75 mm	2.9 mm	White	4	20	70 mm	25.2 mm	98 mm	10 mm	60 mm
Vishay Dale O100H016BGPP5N0000		OLED - Passive Matrix					0.9 mm	1.06 mm	SPI							99 mm				0.96 mm	1.12 mm	24 mm	Green	100 pixels	16 pixels
Vishay Dale O100H016BLPP5N0000		OLED - Passive Matrix					0.9 mm	1.06 mm	SPI							99 mm				0.96 mm	1.12 mm	24 mm	Yellow	100 pixels	16 pixels
Vishay Dale O020N004BBPP5N0000	80 characters	OLED	5 VDC	5 Dots	8 Dots	Passive	0.54 mm	0.55 mm	SPI	4.75 mm	2.9 mm	Blue	4	20	70 mm	25.2 mm	98 mm	10 mm	60 mm

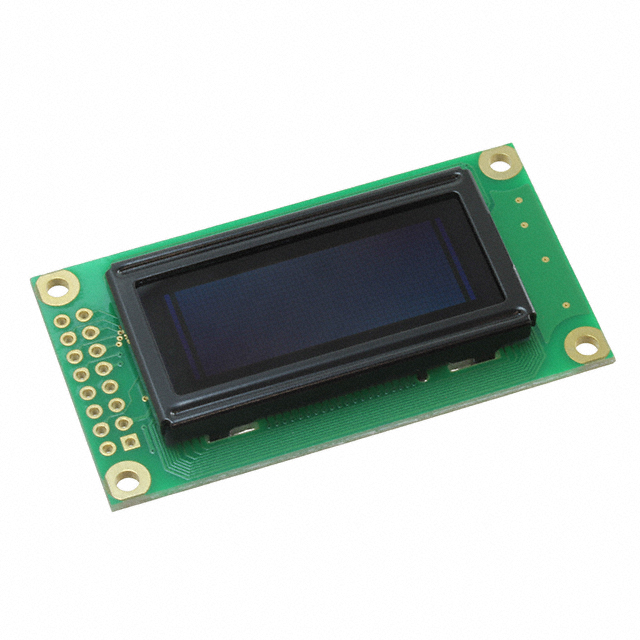

Vishay Dale O050H016ALPP5N0000		OLED - Passive Matrix					0.56 mm	0.66 mm	Parallel							38 mm				0.6 mm	0.7 mm	16 mm	Yellow	50 pixels	16 pixels
Vishay Dale O016N002CGPP5N0000	32 characters	OLED	5 VDC	5 Dots	8 Dots	Passive	0.55 mm	0.65 mm	SPI	5.55 mm	2.95 mm	Green	2	16	66 mm	16 mm	85 mm	10 mm	36 mm
