250 Series

Catalog

QUICK DISCONNECT TERMINAL 12-14AWG BRASS M 16MM TIN PACKAGE

Part	Tab Thickness	Contact Finish	Tab Width	Insulation	Tab Length	Mounting Type	Terminal Type	Gender	Termination	Contact Material	Length - Overall	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Terminal Angle	Termination Style	Function	Style	Features	Size
TE Connectivity AMP Connectors 62922-1	0.032 in	Tin	0.25 in	Non-Insulated	0.312 in	Free Hanging (In-Line)	Standard	Male	Crimp	Brass	0.63 in	12 AWG	16 AWG

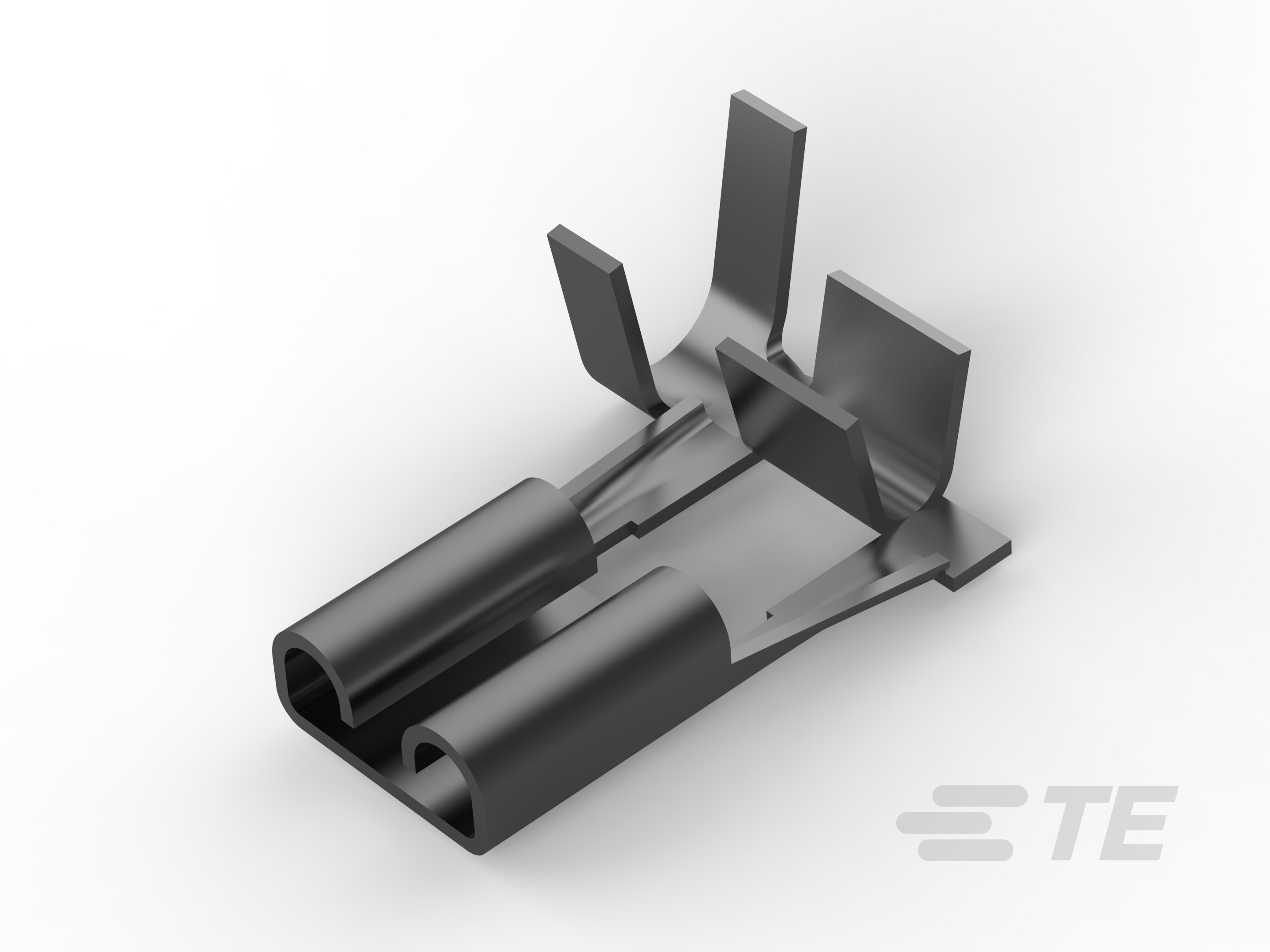

TE Connectivity AMP Connectors 63944-1	0.032 in	Tin	0.25 in	Non-Insulated	0.305 in	Free Hanging (In-Line) Right Angle	Angled Flag	Female	Crimp	Phosphor Bronze		12 AWG	16 AWG	90 °
TE Connectivity AMP Connectors 250-7X
TE Connectivity AMP Connectors 250-1X						Panel Mount									Screw Terminal	Multiple
TE Connectivity AMP Connectors 250-1X
TE Connectivity AMP Connectors 63133-3							Box IDC		Quick Connect			31 AWG	33 AWG				300	QC .250	3
TE Connectivity AMP Connectors 1494212-1	0.032 in		0.11 in	Non-Insulated	0.246 in	Free Hanging (In-Line)	Standard	Female	Crimp	Copper Alloy
