3011W1P Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

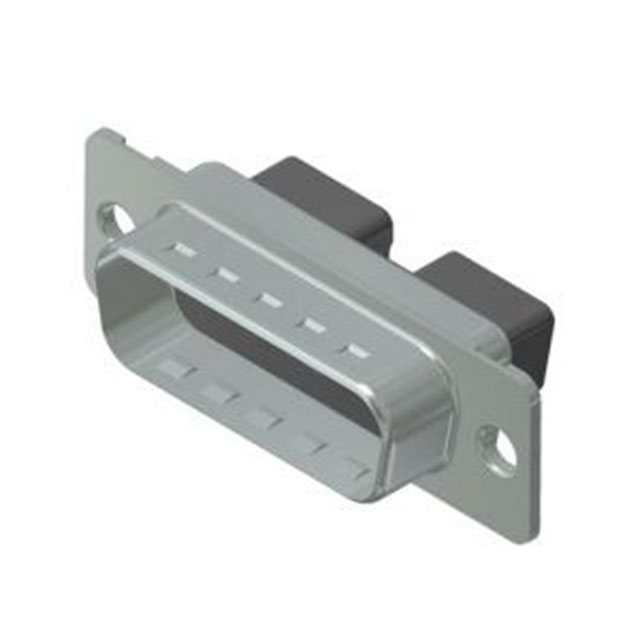

CONN PLUG MALE PINS 11POS
| Part | Connector Type | Dielectric Material | Mating Cycles | Color | Shell Finish Thickness | Number of Positions (Total) | Number of Positions (Normal) | Number of Positions (Power) | Number of Rows | Flange Feature | Finish | Shell Material | Contact Type | Mounting Type | Shell Size | Connector Layout | Part Code | Features | Connector Style | Ingress Protection | Contact Finish Thickness | Number of Positions (Special) | Position Types | Number of Positions (Standard) | Material Flammability Rating | Termination | Current Rating | Contact Finish | Voltage Rating | Operating Temperature (Max) | Operating Temperature (Min) | Contact Form | Contact Material | Wire Gauge | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Male Pins Plug | |||||||||||||||||||||||||||||||||||
McGill Microwave Systems | Male Pins Plug | |||||||||||||||||||||||||||||||||||
 McGill Microwave Systems | Plug for Male Contacts | Glass Filled Polybutylene Terephthalate (PBT) | 500 cycles | Black | 315 µin | 11 | 10 | 1 | 2 | Housing Shell (Unthreaded) | Tin-Nickel Plated | Steel | Power Signal | Through Hole | 2 | A DA | 11C1 11W1 | Grounding Indents | Combo D-Sub | IP20 | ||||||||||||||||
McGill Microwave Systems | Male Pins Plug | Glass Filled Polybutylene Terephthalate (PBT) | Green | 11 | 2 | Cable Side (4-40) | Tin Plated | Steel | Coax or Power Signal | Free Hanging (In-Line) | 2 | A DA | 11C1 11W1 | Grounding Indents | Combo D-Sub | IP20 | 8 µin | 1 | Coax Power | 10 | UL94 V-0 | Solder Cup | 7.5 A | Gold | 250 V | 125 °C | -55 °C | Machined | Copper Alloy | 20 AWG | ||||||
McGill Microwave Systems | Male Pins Plug | Glass Filled Polybutylene Terephthalate (PBT) | Green | 11 | 2 | Mating Side (4-40) | Tin Plated | Steel | Coax or Power Signal | Through Hole | 2 | A DA | 11C1 11W1 | Board Lock Grounding Indents | Combo D-Sub | IP20 | 0 | 1 | Coax Power | 10 | UL94 V-0 | Solder | Gold | Machined | Copper Alloy | Flash | Flash |
