Q-0D03I0 Series

Catalog

CBL ASSY BNC-SMB PLG-JACK 19.69"

Part	1st Connector Mounting Type	2nd Connector	Features	Cable Type	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	Frequency - Max	Length	1st Connector	Overall Impedance	Style	Color	Length (ft)

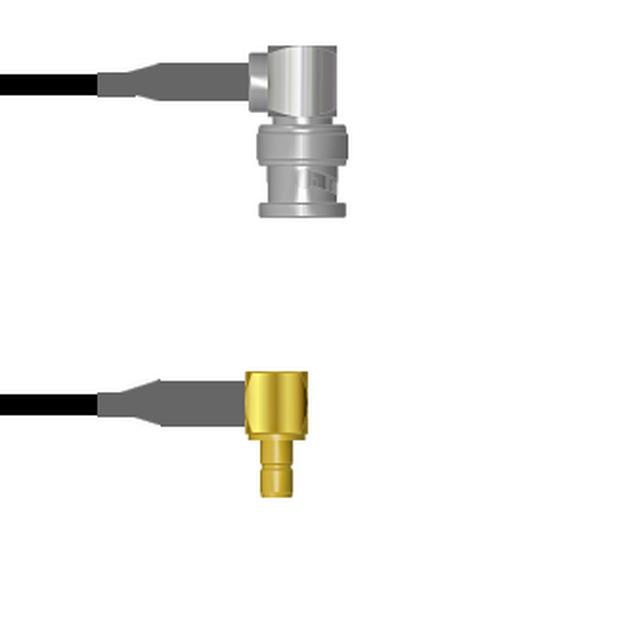

McGill Microwave Systems Q-0D03I00030.5M	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	174 RG	Female	Male	Free Hanging (In-Line)	4 GHz	19.69 in	BNC Plug Right Angle	50 Ohms	BNC SMB	Black
McGill Microwave Systems Q-0D03I0003003M	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	174 RG	Female	Male	Free Hanging (In-Line)	4 GHz	118.1 in	BNC Plug Right Angle	50 Ohms	BNC SMB	Black
McGill Microwave Systems Q-0D03I0003009i	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	174 RG	Female	Male	Free Hanging (In-Line)	4 GHz	228.6 mm	BNC Plug Right Angle	50 Ohms	BNC SMB	Black
McGill Microwave Systems Q-0D03I0003.75M	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	174 RG	Female	Male	Free Hanging (In-Line)	4 GHz	29.53 in	BNC Plug Right Angle	50 Ohms	BNC SMB	Black
McGill Microwave Systems Q-0D03I0003003i	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	174 RG	Female	Male	Free Hanging (In-Line)	4 GHz	3 "	BNC Plug Right Angle	50 Ohms	BNC SMB	Black

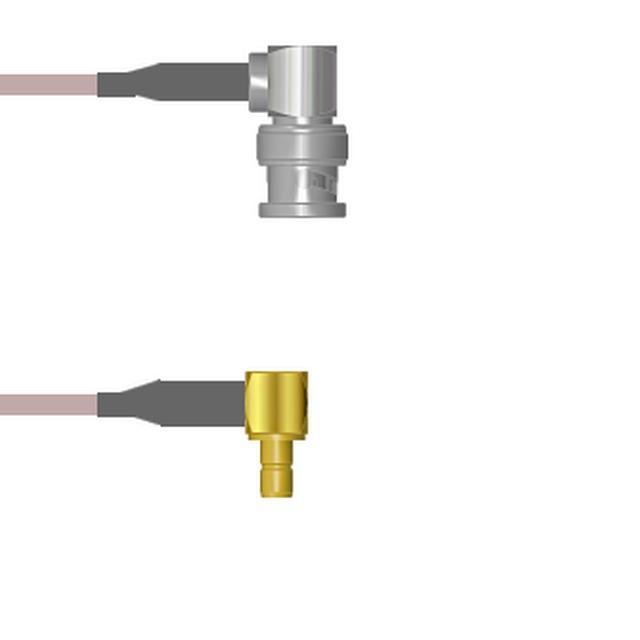

McGill Microwave Systems Q-0D03I0005036i	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	316 RG	Female	Male	Free Hanging (In-Line)	4 GHz	36 in	BNC Plug Right Angle	50 Ohms	BNC SMB	Copper
McGill Microwave Systems Q-0D03I0005048i	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	316 RG	Female	Male	Free Hanging (In-Line)	4 GHz	48 in	BNC Plug Right Angle	50 Ohms	BNC SMB	Copper
McGill Microwave Systems Q-0D03I0003002M	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	174 RG	Female	Male	Free Hanging (In-Line)	4 GHz		BNC Plug Right Angle	50 Ohms	BNC SMB	Black	6.6 ft
McGill Microwave Systems Q-0D03I0003072i	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	174 RG	Female	Male	Free Hanging (In-Line)	4 GHz	72 in	BNC Plug Right Angle	50 Ohms	BNC SMB	Black
McGill Microwave Systems Q-0D03I0005003M	Free Hanging (In-Line)	Right Angle SMB Jack	Shielded	316 RG	Female	Male	Free Hanging (In-Line)	4 GHz	118.1 in	BNC Plug Right Angle	50 Ohms	BNC SMB	Copper
