43-0010 Series

Catalog

SENSOR CONN, M12, R/A PLUG, 4POS, CABLE ROHS COMPLIANT: YES

Part	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert	Termination	Voltage Rating	Contact Material	Cable Opening (Min)	Cable Opening (Max)	Orientation	Material Flammability Rating	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Number of Positions	Connector Type	Mounting Type	Primary Material	Contact Finish - Mating	Insert Material	Shielding	Color	Features	Backshell Material, Plating

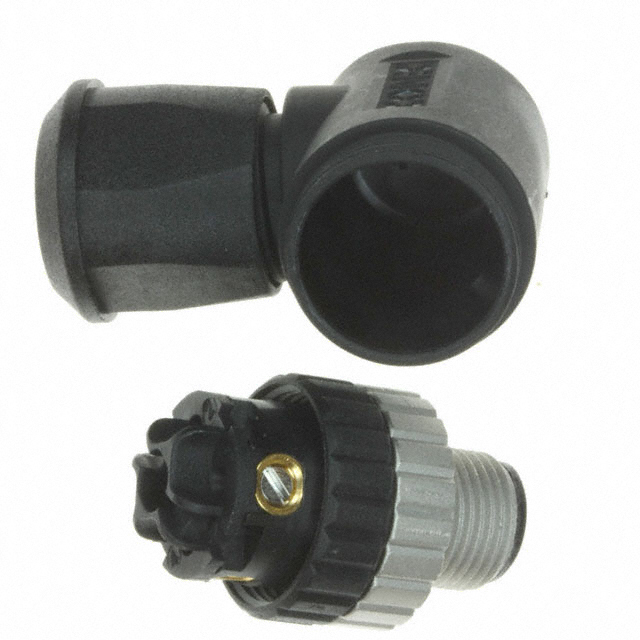

McGill Microwave Systems 43-00104	Glass Filled Nylon 6 Polyamide (PA6)	85 °C	-30 °C	M12-4	Screw	250 V	Copper Zinc	0.236 in	0.315 in	A	UL94	4 A	Dust Tight Waterproof	IP67	Threaded	4	Male Pins Receptacle	Free Hanging (In-Line) Right Angle	Plastic	Gold	Nylon 6 PA6 Polyamide	Unshielded	Black Silver
McGill Microwave Systems 43-00100	Glass Filled Nylon 6 Polyamide (PA6)	85 °C	-30 °C	M12-4	Screw	250 V	Copper Zinc	0.236 in	0.315 in	A	UL94	4 A	Dust Tight Waterproof	IP67	Threaded	4	Male Pins Receptacle	Free Hanging (In-Line)	Plastic	Gold	Nylon 6 PA6 Polyamide	Unshielded	Black Silver	Backshell	Glass Filled Nylon 6 Polyamide (PA6)
McGill Microwave Systems 43-00102	Glass Filled Nylon 6 Polyamide (PA6)	85 °C	-30 °C	M12-5	Screw	60 V	Copper Zinc	0.236 in	0.315 in	A	UL94	4 A	Dust Tight Waterproof	IP67	Threaded	5	Male Pins Receptacle	Free Hanging (In-Line)	Plastic	Gold	Nylon 6 PA6 Polyamide	Unshielded	Black Silver	Backshell	Glass Filled Nylon 6 Polyamide (PA6)
McGill Microwave Systems 43-00106	Glass Filled Nylon 6 Polyamide (PA6)	85 °C	-30 °C	M12-5	Screw	60 V	Copper Zinc	0.236 in	0.315 in	A	UL94	4 A	Dust Tight Waterproof	IP67	Threaded	5	Male Pins Receptacle	Free Hanging (In-Line) Right Angle	Plastic	Gold	Nylon 6 PA6 Polyamide	Unshielded	Black Silver
