31887 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

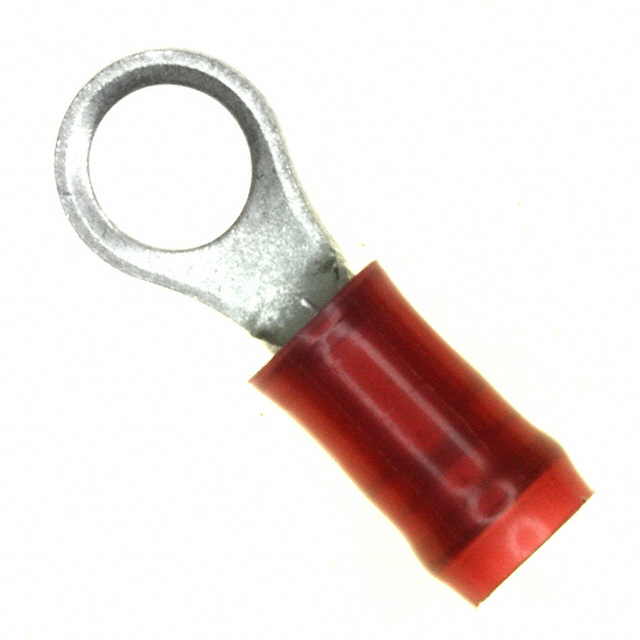

PIDG R 22-16 COMM 22-18 MIL 10
| Part | Termination | Length - Overall | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Insulation | Width - Outer Edges | Contact Finish | Thickness | Mounting Type | Features | Color | Terminal Type | Contact Material | Stud/Tab Size | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Crimp | 0.797 in | 16 AWG | 22 AWG | Insulated | 0.281 in | Tin | 0.031 in | Free Hanging (In-Line) | Serrated Termination | Red | Circular | Copper | 10 Stud | 0.105 in | 0.14 in | Nylon PA Polyamide |
