RTS714 Series

Catalog

CONN RCPT HSNG MALE 12POS PNL MT

Part	Ingress Protection IP Rating	Ingress Protection Description	Orientation	Type	Note	Shielding	Number of Positions	Shell Material	Contact Type	Includes Total Count	Includes	Mounting Feature	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert Width	Shell Size - Insert Length	Fastening Type	Contact Size	Insert Material	Mounting Type	Contact Shape	Housing Color	Connector Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Features	Voltage Rating	Voltage Rating (Type)	Color	Termination	Current Rating	Primary Material	Contact Finish - Mating	Contact Material	Applications

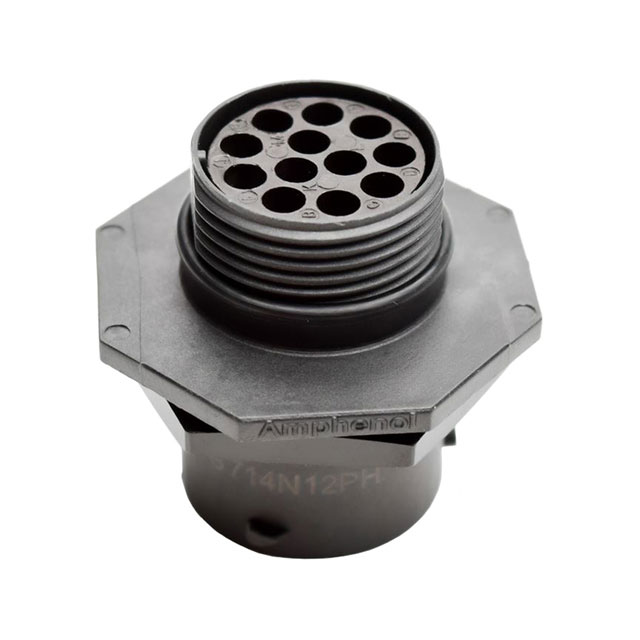

McGill Microwave Systems RTS714N12P03	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	For Male Pins	Contacts Not Included	Unshielded	12	Thermoplastic	Crimp	4 pcs	Connector Gasket Nut O-Ring	Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C	12 mm	14 mm	Bayonet Lock	16 S	Thermoplastic	Panel Mount	Circular	Black	Receptacle Housing
McGill Microwave Systems RTS714N8S03	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	For Female Sockets	Contacts Not Included	Unshielded	8	Thermoplastic	Crimp	4 pcs	Connector Gasket Nut O-Ring	Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C	8 mm	14 mm	Bayonet Lock	16 S	Thermoplastic	Panel Mount	Circular	Black	Receptacle Housing
McGill Microwave Systems RTS714N12S03	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	For Female Sockets	Contacts Not Included	Unshielded	12	Thermoplastic	Crimp	4 pcs	Connector Gasket Nut O-Ring	Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C	12 mm	14 mm	Bayonet Lock	16 S	Thermoplastic	Panel Mount	Circular	Black	Receptacle Housing
McGill Microwave Systems RTS714N19PHEC03	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	For Male Pins	Contacts Not Included	Unshielded	19	Thermoplastic	Crimp	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C			Bayonet Lock	20	Thermoplastic	Panel Mount	Circular	Black	Receptacle Housing	19	14 S	Backshell
McGill Microwave Systems RTS714ND19P0332	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)			Unshielded	19	Thermoplastic				Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C			Bayonet Lock		Thermoplastic	Panel Mount Through Hole			Male Pins Receptacle	19	14 S	Board Lock	250 V	DC	Black	Solder	7.5 A	Plastic	Gold	Copper Alloy	Automation Industrial Instrumentation Marine Telecom Transportation
McGill Microwave Systems RTS714N3P03	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	For Male Pins	Contacts Not Included	Unshielded	3	Thermoplastic	Crimp	4 pcs	Connector Gasket Nut O-Ring	Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C	3 mm	14 mm	Bayonet Lock	8	Thermoplastic	Panel Mount	Circular	Black	Receptacle Housing
McGill Microwave Systems RTS714N4P03	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	For Male Pins	Contacts Not Included	Unshielded	4	Thermoplastic	Crimp	4 pcs	Connector Gasket Nut O-Ring	Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C	4 mm	14 mm	Bayonet Lock	2.5 mm	Thermoplastic	Panel Mount	Circular	Black	Receptacle Housing
McGill Microwave Systems RTS714N19P03	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	For Male Pins	Contacts Not Included	Unshielded	19	Thermoplastic	Crimp	4 pcs	Connector Gasket Nut O-Ring	Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C			Bayonet Lock	20	Thermoplastic	Panel Mount	Circular	Black	Receptacle Housing	19	14 S
McGill Microwave Systems RTS714ND12S0332	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)			Unshielded	12	Thermoplastic				Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C	12 mm	14 mm	Bayonet Lock		Thermoplastic	Panel Mount Through Hole			Female Sockets Receptacle			Board Lock	500 V	DC	Black	Solder	13 A	Plastic	Gold	Copper Alloy	Automation Industrial Instrumentation Marine Telecom Transportation

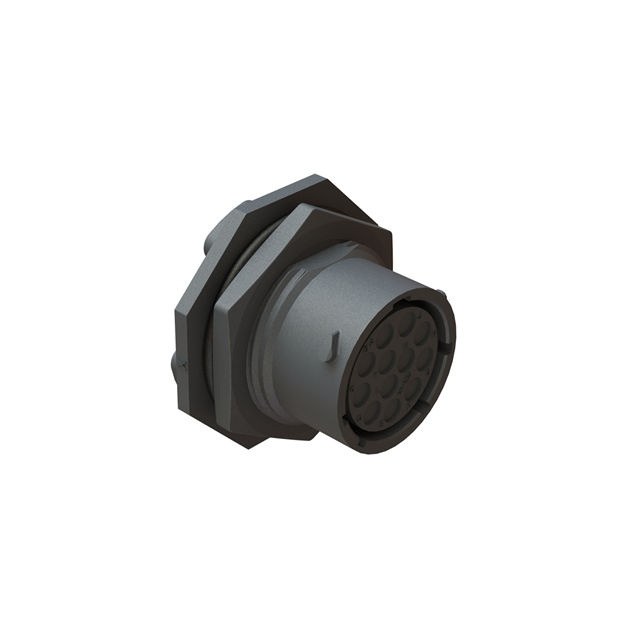

McGill Microwave Systems RTS714ND12S03	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)			Unshielded	12	Thermoplastic				Bulkhead Front Side Nut	UL94 V-0	125 °C	-40 °C	12 mm	14 mm	Bayonet Lock		Thermoplastic	Panel Mount Through Hole			Female Sockets Receptacle			Board Guide	500 V	DC	Black	Solder	13 A	Plastic	Gold	Copper Alloy	Automation Industrial Instrumentation Marine Telecom Transportation
