PCL400 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

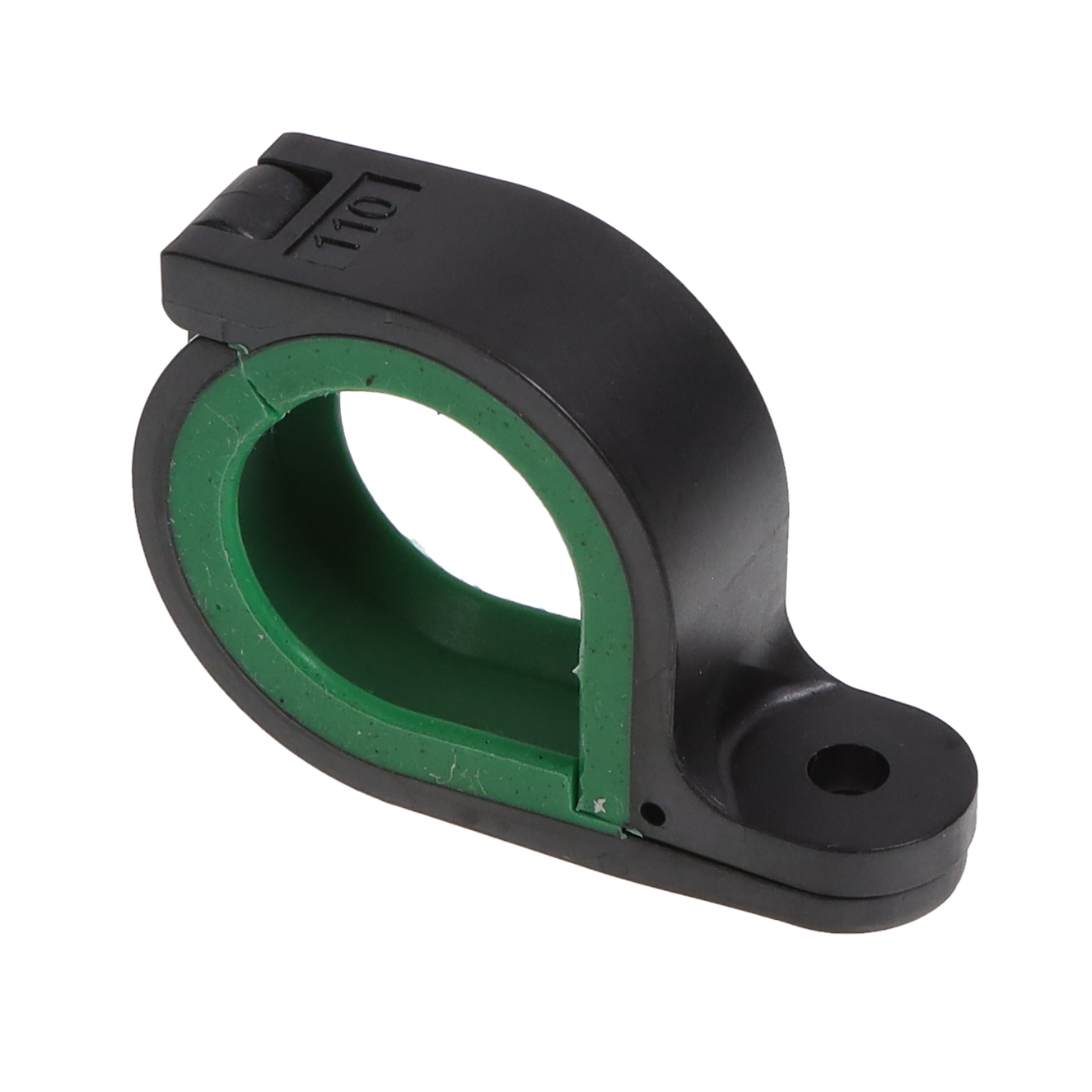

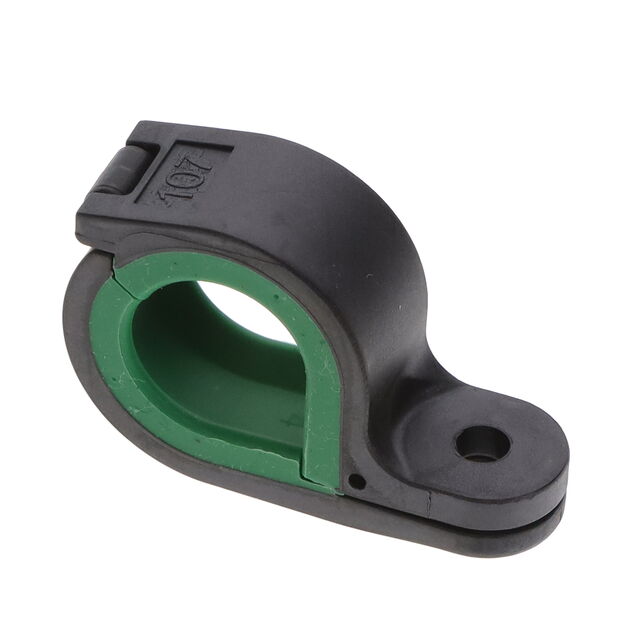

CBL CLAMP P-TYPE FASTENER
| Part | Bundle Center to Mounting Center | Screw Size | Mounting Type | Panel Hole Size | Opening Size | Width | Type Attributes | Features | Color | Type | Length | Height | Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 1.07 in | 10-32 | Fastener | 0.2 in | 0.969 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 2.12 in | 1.48 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
 McGill Microwave Systems | 0.93 in | 10-32 | Fastener | 0.2 in | 0.689 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 1.84 in | 1.2 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
 McGill Microwave Systems | 0.59 in | 10-32 | Fastener | 0.2 in | 0.125 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 1.18 in | 0.642 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
 McGill Microwave Systems | 1.02 in | 10-32 | Fastener | 0.2 in | 0.876 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 2.03 in | 1.39 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
 McGill Microwave Systems | 0.85 in | 10-32 | Fastener | 0.2 in | 0.594 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 1.7 in | 1.05 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
 McGill Microwave Systems | 0.64 in | 10-32 | Fastener | 0.2 in | 0.219 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 1.27 in | 0.71 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
McGill Microwave Systems | 1.23 in | 10-32 | Fastener | 0.2 in | 1.251 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 2.45 in | 1.82 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
McGill Microwave Systems | 1.39 in | 10-32 | Fastener | 0.2 in | 1.532 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 2.78 in | 2.14 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
 McGill Microwave Systems | 1.18 in | 10-32 | Fastener | 0.2 in | 1.157 in | 0.6 in | Hinged | Corrosion Resistant Non-Conductive Protective Coating | Black Light Green | Clamp P-Type | 2.36 in | 1.76 in | Polyetheretherketone (PEEK) | UL94 HB UL94 V-0 |
