ELFH112 Series

Catalog

.200"/5.08MM R/A HDR OPEN ENDS H

Part	Termination Style	Header Orientation Angle	Header Orientation	Pitch	Mounting Type	Number of Positions	Number of Levels	Current - UL	Contact Mating Finish	Voltage - UL	Type	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Color	Features	Contact Tail Length	Insulation Height	Contact Material	Housing Material	Material Flammability Rating
McGill Microwave Systems ELFH1124G
McGill Microwave Systems ELFH11210	Solder	90 °	Right Angle	5.08 mm	Through Hole	11	1	15 A	Tin	300 V	Header Male Pins Shrouded (4 Side)	11	-40 °C	105 °C	Black
McGill Microwave Systems ELFH11230E

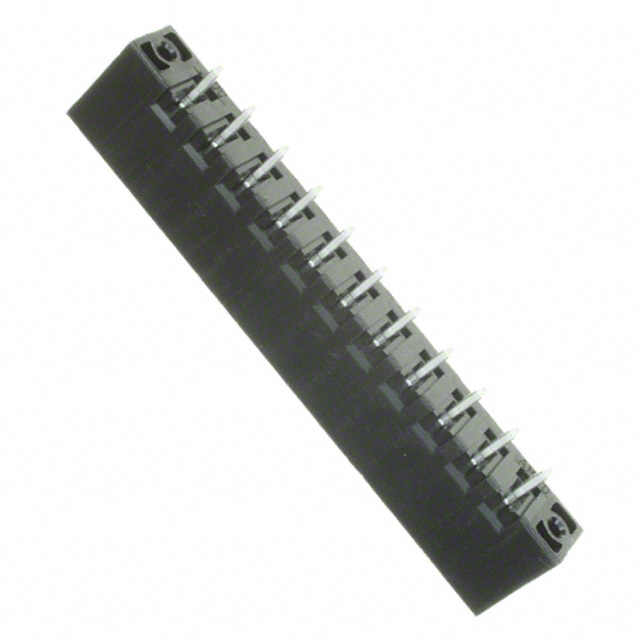

McGill Microwave Systems ELFH11250E	Solder		Vertical	5.08 mm	Through Hole	11	1	15 A	Tin	300 V	Header Male Pins Shrouded (4 Side)	11	-40 °C	105 °C	Black	Mating Flange
McGill Microwave Systems ELFH1122G
McGill Microwave Systems ELFH11290	Solder		Vertical	5.08 mm	Through Hole	11	1	15 A	Tin	300 V	Header Male Pins Shrouded (2 Side)	11	-40 °C	105 °C	Black
McGill Microwave Systems ELFH11260	Solder		Vertical	5.08 mm	Through Hole	11	1	15 A	Tin	300 V	Header Male Pins Shrouded (2 Side)	11	-40 °C	105 °C	Black		0.155 in	0.475 in	Brass	PBT Polybutylene Terephthalate	UL94 V-0
McGill Microwave Systems ELFH11250	Solder		Vertical	5.08 mm	Through Hole	11	1	15 A	Tin	300 V	Header Male Pins Shrouded (4 Side)	11	-40 °C	105 °C	Black			0.319 in	Brass	PBT Polybutylene Terephthalate	UL94 V-0
McGill Microwave Systems ELFH11210E	Solder	90 °	Right Angle	5.08 mm	Through Hole	11	1	15 A	Tin	300 V	Header Male Pins Shrouded (4 Side)	11	-40 °C	105 °C	Black	Mating Flange	0.155 in	0.319 in	Brass	PBT Polybutylene Terephthalate	UL94 V-0
McGill Microwave Systems ELFH11230	Solder	90 °	Right Angle	5.08 mm	Through Hole	11	1	15 A	Tin	300 V	Header Male Pins Shrouded (4 Side)	11	-40 °C	105 °C	Black			0.319 in	Brass	Nylon 4/6 PA46 Polyamide	UL94 V-0
