BZ Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

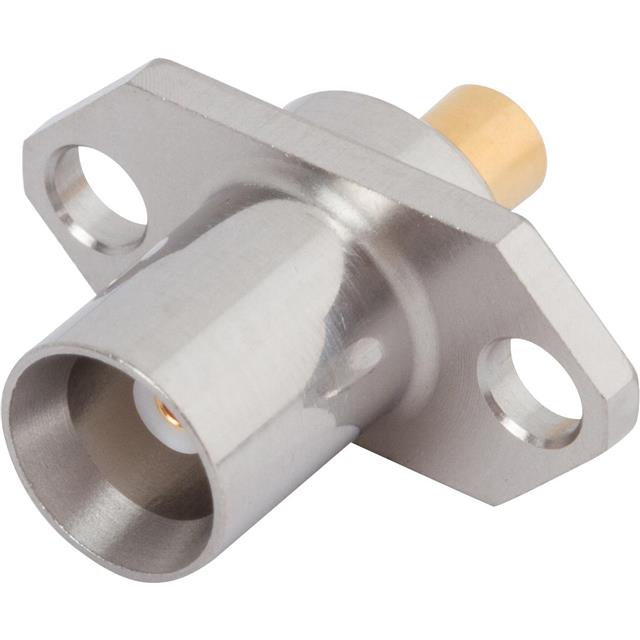

RF CONNECTORS / COAXIAL CONNECTORS BZ F FLANG MNT CONN 2HOLE FOR .141 CABLE
| Part | Body Material | Center Contact Plating | Dielectric Material | Mating Cycles | Connector Style | Impedance | Housing Color | Fastening Type | Shield Termination | Connector Type | Frequency - Max | Center Contact Material | Mounting Type | Cable Group | Cable Group Diameter (Default) | Mounting Feature | Number of Ports | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | BZ | 50 Ohm | Silver | Snap-On | Solder | Female Socket Jack | 18 GHz | Beryllium Copper | Panel Mount | RG-402 | 0.141 in | Flange | 1 | Solder |

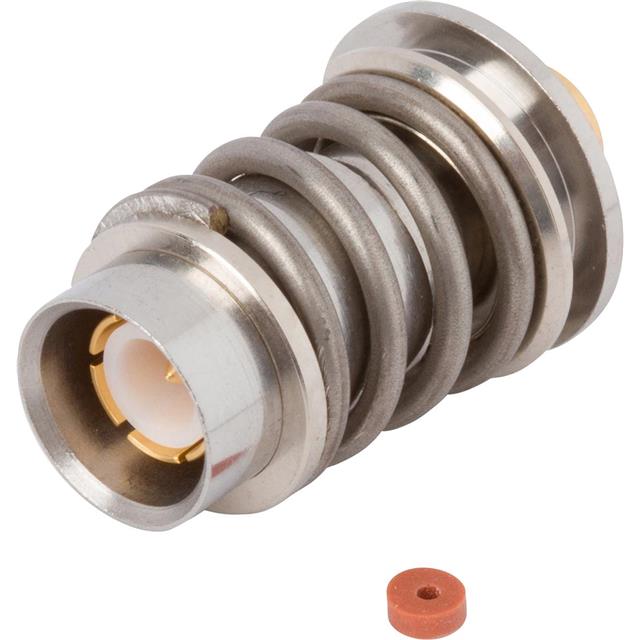

 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | BZ | 50 Ohm | Silver | Snap-On | Solder | Male Pin Plug | 2 GHz | Beryllium Copper | Panel Mount | RG-405 | 0.085 in | Bulkhead | 1 | Solder |
