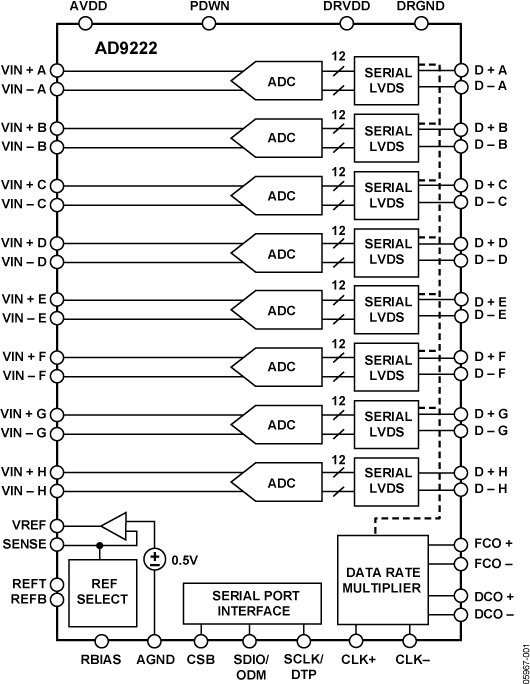

AD9222 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC ADC 12BIT 8CH 40MSPS 64LFCSP

Part	Number of Bits	Package / Case	Number of A/D Converters	Operating Temperature (Min)	Operating Temperature (Max)	Data Interface	Mounting Type	Sampling Rate (Per Second)	Package Length	Package Name	Package Width	Configuration	Reference Type	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Ratio - ADC	Ratio - S/H	Input Type	Number of Inputs	Features	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Architecture
Analog Devices Inc./Maxim Integrated AD9222BCPZ-40	12 bits	64-VFQFN Exposed Pad CSP	8 count	-40 °C	85 °C	SPI	Surface Mount	40 MHz	9 mm	64-LFCSP-VQ	9 mm
Analog Devices Inc./Maxim Integrated AD9222ABCPZ-40	12 bits	64-VFQFN Exposed Pad CSP	8 count	-40 °C	85 °C	LVDS - Serial	Surface Mount	40 MHz	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	Internal	1.9 V	1.7 V	1	1	Differential Single Ended	8	Simultaneous Sampling	1.7 V	1.9 V	Pipelined
Analog Devices Inc./Maxim Integrated AD9222ABCPZ-65	12 bits	64-VFQFN Exposed Pad CSP	8 count	-40 °C	85 °C	LVDS - Serial	Surface Mount	65 MHz	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	Internal	1.9 V	1.7 V	1	1	Differential Single Ended	8	Simultaneous Sampling	1.7 V	1.9 V	Pipelined
Analog Devices Inc./Maxim Integrated AD9222ABCPZRL7-50	12 bits	64-VFQFN Exposed Pad CSP	8 count	-40 °C	85 °C	LVDS - Serial	Surface Mount	50 MHz	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	Internal	1.9 V	1.7 V	1	1	Differential Single Ended	8	Simultaneous Sampling	1.7 V	1.9 V	Pipelined
Analog Devices Inc./Maxim Integrated AD9222ABCPZ-50	12 bits	64-VFQFN Exposed Pad CSP	8 count	-40 °C	85 °C	LVDS - Serial	Surface Mount	50 MHz	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	Internal	1.9 V	1.7 V	1	1	Differential Single Ended	8	Simultaneous Sampling	1.7 V	1.9 V	Pipelined
