481 Series

Catalog

SPECIALTY FUSES 125V 2A ALARM IND W/MARK

Part	DC Cold Resistance	Melting I²t	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Features	Applications	Response Time	Breaking Capacity	Mounting Type	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage Rating - DC	Fuse Type	Voltage Rating - AC	Current Rating	Breaking Capacity (AC)	Breaking Capacity (DC)

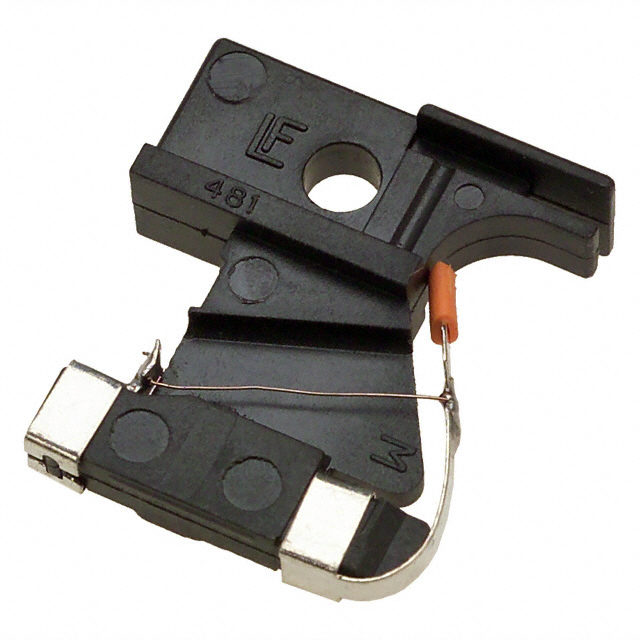

LITTELFUSE 0481002.HXM	0.12 Ohms	5.29	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	2 A
LITTELFUSE 048102.5VXP	0.0904 Ohms	9.46	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	2.5 A

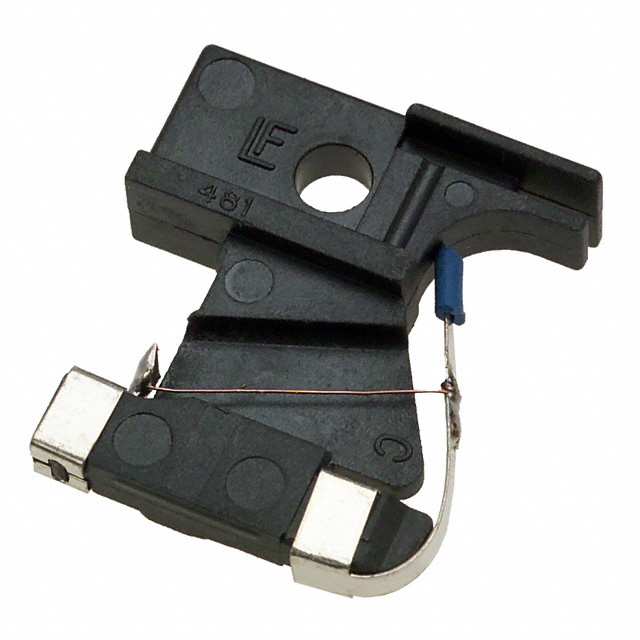

LITTELFUSE 0481003.HXL	67 mOhms	11.2	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	3 A

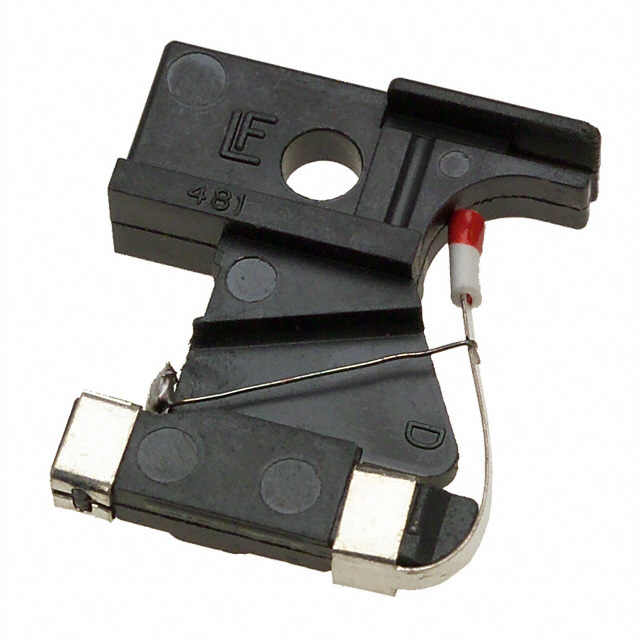

LITTELFUSE 0481010.HXESD	0.008 Ohms	115.3	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	10 A

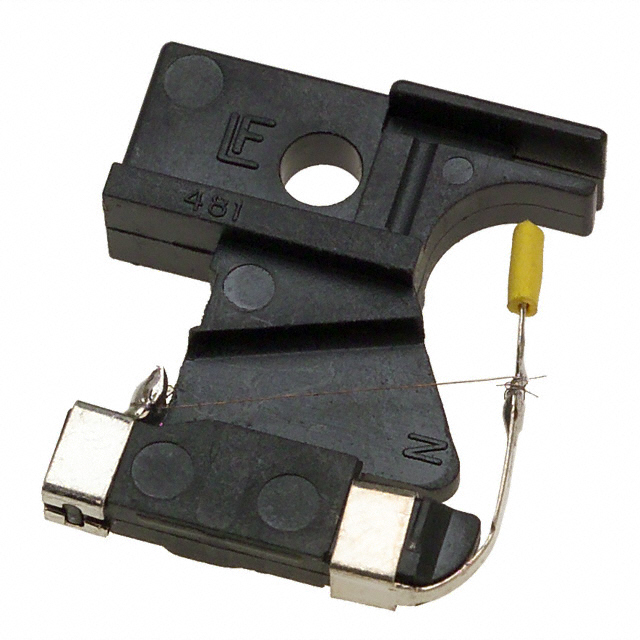

LITTELFUSE 048101.5H	0.385 Ohms	2.55	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	1.5 A

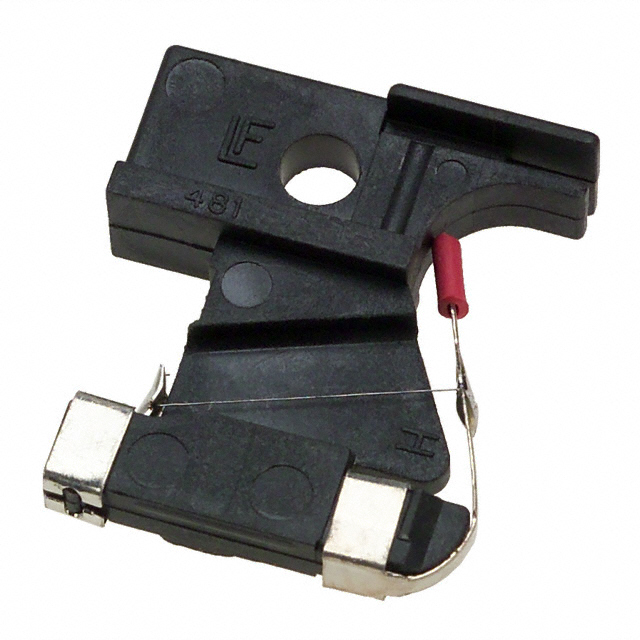

LITTELFUSE 0481.500H	1.52 Ohms	0.139	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	0.5 A
LITTELFUSE 048107.5VXP	0.0113 Ohms	42.8	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	7.5 A
LITTELFUSE 0481.500HXL	1.52 Ohms	0.139	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	0.5 A
LITTELFUSE 0481020.V	0.00394 Ohms	570	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow		Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	20 A	300 A	200 A
LITTELFUSE 0481005.VXP	0.0285 Ohms	26.2	Alarm Indicator	125 °C	-55 °C	CSA UR	Indicating	Telecom	Fast Blow	300 A	Requires Holder	0.665 in	0.772 in	0.228 in	125 V	Indicating Fuse	125 V	5 A
