97-4106A22 Series

Catalog

CONN PLUG HSNG MALE 19POS INLINE

Part	Shell Size - Insert Width	Shell Size - Insert Length	Contact Type	Note	Shielding	Orientation	Material Flammability Rating	Contact Size	Fastening Type	Features	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Qualification	Number of Positions	Connector Type	Type	Shell Material	Contact Shape	Housing Color
Amphenol Aerospace Operations 97-4106A22-14P-417	14 mm	22 mm	Crimp	Contacts Not Included	Unshielded	N (Normal)	UL94 V-0	16 S	Threaded	Backshell Coupling Nut	Free Hanging (In-Line)	125 °C	-55 °C	Bright Chromate Clear Cadmium	MIL-5015 Derivative	19	Plug Housing	For Male Pins	Aluminum Alloy	Circular
Amphenol Aerospace Operations 97-4106A22-14P-662	14 mm	22 mm	Crimp	Contacts Not Included	Unshielded	N (Normal)	UL94 V-0	16 S	Threaded	Backshell Coupling Nut	Free Hanging (In-Line)	125 °C	-55 °C	Cadmium Chromate	MIL-5015 Derivative	19	Plug Housing	For Male Pins	Aluminum Alloy	Circular	Olive Drab

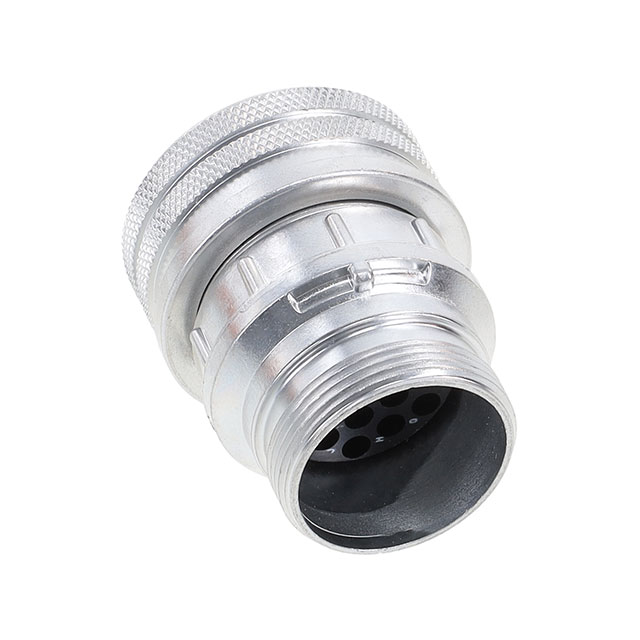

Amphenol Aerospace Operations 97-4106A22-14P	14 mm	22 mm	Crimp	Contacts Not Included	Unshielded	N (Normal)	UL94 V-0	16 S	Threaded	Backshell Coupling Nut	Free Hanging (In-Line)	125 °C	-55 °C	Bright Chromate Clear Cadmium	MIL-5015 Derivative	19	Plug Housing	For Male Pins	Aluminum Alloy	Circular
Amphenol Aerospace Operations 97-4106A22-14S-662	14 mm	22 mm	Crimp	Contacts Not Included	Unshielded	N (Normal)	UL94 V-0	16 S	Threaded	Backshell Coupling Nut	Free Hanging (In-Line)	125 °C	-55 °C	Cadmium Chromate	MIL-5015 Derivative	19	Plug Housing	For Female Sockets	Aluminum Alloy	Circular	Olive Drab
