AC3M Series

Catalog

PLASTIC PLUG STR CORD 3 PIN BULK

Part	Shell Material	Shell Finish	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Shell Size - Insert	Connector Type	Contact Material	Backshell Material, Plating	Number of Positions	Cable Opening (Max)	Cable Opening (Min)	Features	Current Rating	Termination	Mounting Type	Fastening Type	Contact Finish - Mating	Ingress Protection	Material Flammability Rating	Color	Primary Material	Shielding	Contact Finish Thickness - Mating	Insert Material	Mounting Feature

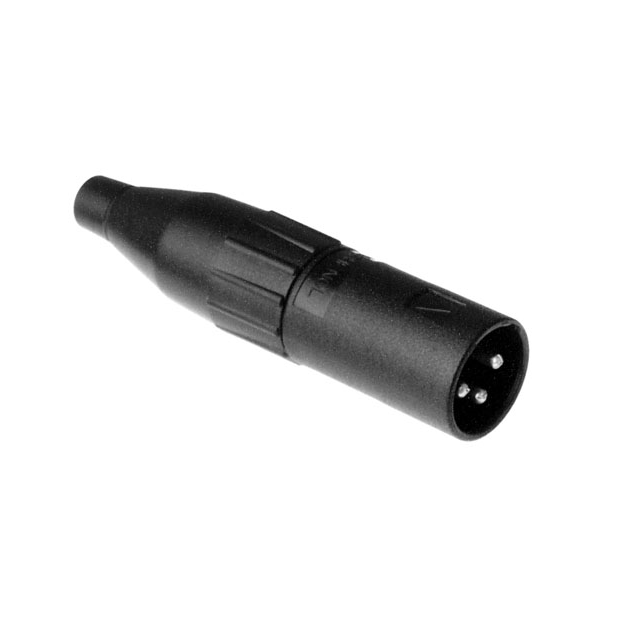

McGill Microwave Systems AC3MCP BULK	Thermoplastic	Black	Keyed	-25 °C	75 °C	Audio	XLR	Male Pins Receptacle	Phosphor Bronze	Polyphenylene Ether (PPE)	3	0.255 in	0.118 in	Backshell Cable Clamp	15 A	Solder Cup	Free Hanging (In-Line)	Latch Holder	Silver	IP40	UL94 V-0	Black	Plastic	Unshielded

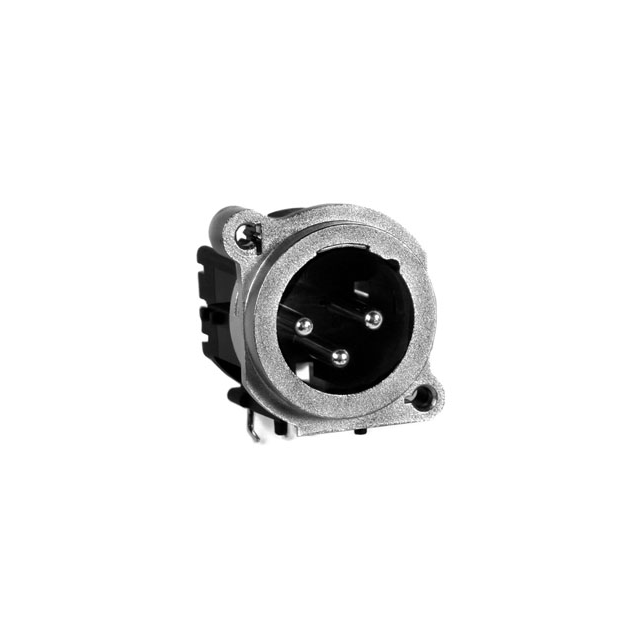

McGill Microwave Systems AC3MBH-AU-PRE	Thermoplastic		Keyed	-25 °C	75 °C	Audio	XLR	Male Pins Receptacle	Brass		3			Board Guide	6 A	Solder	Panel Mount Right Angle Through Hole	Latch Lock	Gold	IP40	UL94 V-0	Black Silver	Plastic	Unshielded	1.97 µin	Glass Filled Nylon 6/6 PA66 Polyamide	Flange
McGill Microwave Systems AC3M	Zinc Die Cast	Nickel	Keyed	-25 °C	75 °C		XLR	Male Pins Receptacle			3			Backshell Cable Clamp		Solder Cup	Free Hanging (In-Line)	Latch Holder	Silver	IP40		Silver	Metal
McGill Microwave Systems AC3MBV3-AU-PRE

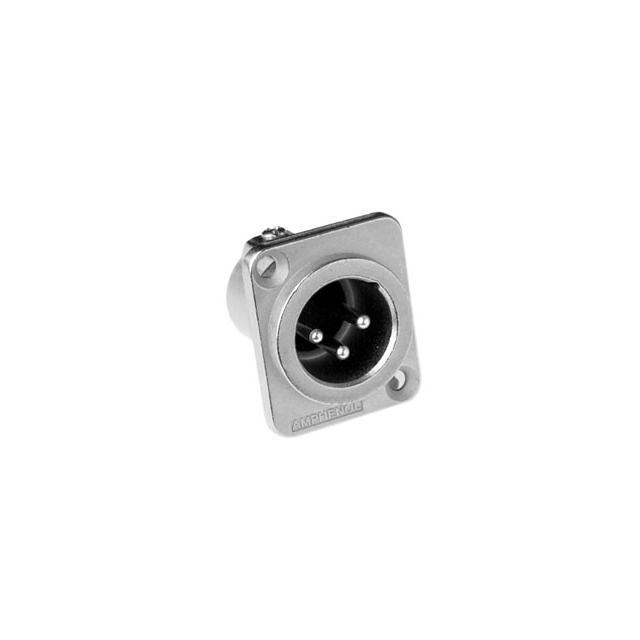

McGill Microwave Systems AC3MMDZ BULK	Zinc Die Cast	Nickel	Keyed	-25 °C	75 °C	Audio	XLR	Male Pins Receptacle	Brass		3			Ground	15 A	Solder Cup	Panel Mount	Push-Pull	Silver	IP40	UL94 V-0	Silver	Metal	Shielded		Glass Filled Nylon 6/6 PA66 Polyamide	Flange
McGill Microwave Systems AC3MMB BULK	Zinc Die Cast	Black	Keyed	-25 °C	75 °C	Audio	XLR	Male Pins Receptacle	Brass	Polyphenylene Ether (PPE)	3	0.255 in	0.118 in	Backshell Cable Clamp	15 A	Solder Cup	Free Hanging (In-Line)	Latch Holder	Silver	IP40	UL94 V-0	Black	Metal	Unshielded

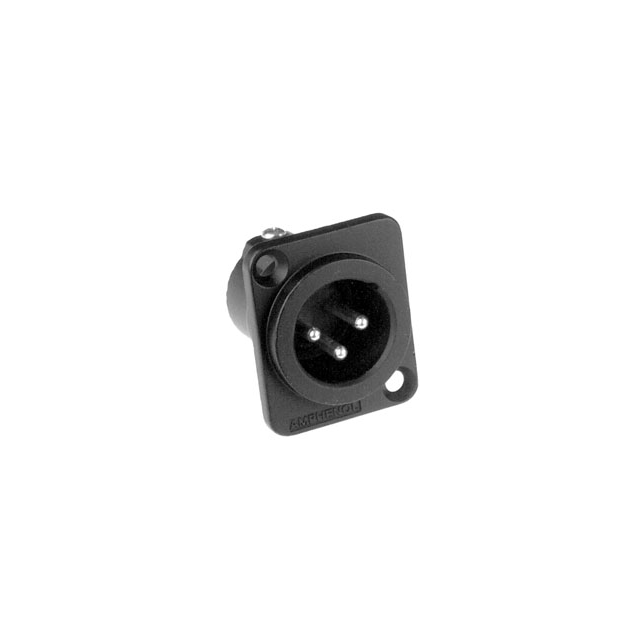

McGill Microwave Systems AC3MMDZB BULK	Zinc Die Cast	Black	Keyed	-25 °C	75 °C	Audio	XLR	Male Pins Receptacle	Brass		3				15 A	Solder Cup	Panel Mount	Push-Pull	Silver	IP40	UL94 V-0	Black	Metal	Unshielded		Glass Filled Nylon 6/6 PA66 Polyamide	Flange
McGill Microwave Systems AC3MBHL-AU-PRE
McGill Microwave Systems AC3MAV1-AU-PRE
McGill Microwave Systems AC3MB BULK	Zinc Die Cast	Black	Keyed	-25 °C	75 °C	Audio	XLR	Male Pins Receptacle	Phosphor Bronze	Polyphenylene Ether (PPE)	3	0.255 in	0.118 in	Backshell Cable Clamp	15 A	Solder Cup	Free Hanging (In-Line)	Latch Holder	Silver	IP40	UL94 V-0	Black	Metal	Unshielded
