AHDPBS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN BACKSH SZ18 BLK 1 7/16-12
| Part | For Use With/Related Products | Includes | Includes Total Count | Type | Thread Size (Class) | Thread Size (Nominal) | Thread Pitch (TPI) | Diameter - Outside | Shielding | Shell Size - Insert | Shell Size - Insert | Cable Exit Angle | Color | Cable Opening (Min) | Cable Opening (Max) | Material | Ingress Protection Description | Ingress Protection IP Rating | Cable Opening | Primary Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

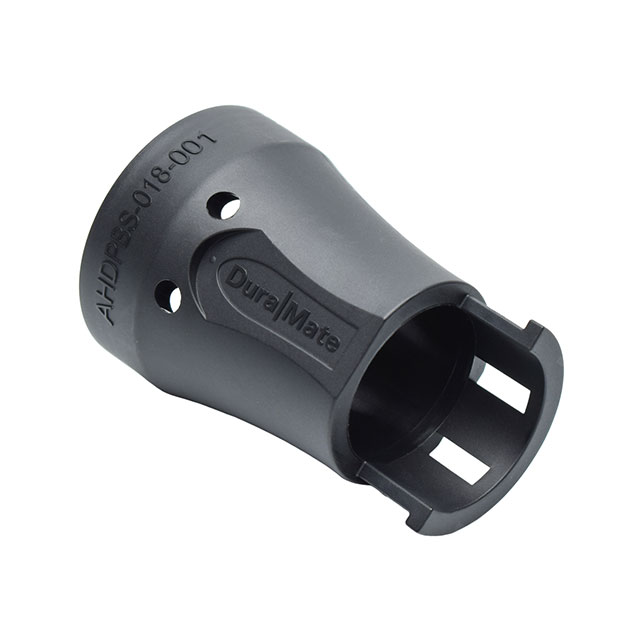

 McGill Microwave Systems | AHDP Series | Backshell Cage Clamp Compression Nut Rubber Ring | 4 pcs | Backshell | UN-2B | 1.4375 in | 12 TPI | 1.535 in | Unshielded | 18 | 18 | 180 ° | Black | 0.472 in | 0.63 in | Thermoplastic | |||||
 McGill Microwave Systems | AHDP Series Connector with WTA Modification | Backshell | UN | 1.4375 in | 12 TPI | 1.551 in | Unshielded | 18 | 18 | 180 ° | Black | Thermoplastic | Dust Tight Waterproof | IP67 | 0.925 in | ||||||
 McGill Microwave Systems | AHDP04/06-18-*P/S-WTA | Backshell Conduit Adapter | 1.614 in | Unshielded | 18 | 18 | 180 ° | Black | Thermoplastic | Dust Tight Water Resistant Waterproof | IP67 IP69K | 1.138 in | |||||||||
 McGill Microwave Systems | AHDP Series Connector with WTA Modification | Backshell | 1.614 in | Unshielded | 18 | 18 | 180 ° | Black | Thermoplastic | Dust Tight Waterproof | IP68 | 1.138 in | Plastic | Snap-On |
