TV06 Series

Catalog

TERM BLOCK 6POS 55DEG 5MM PCB

Part	Screw Thread	Screw Plating	Screw Material	Operating Temperature (Min)	Operating Temperature (Max)	Torque - Screw	Clamp Material	Clamp Plating	Housing Material	Number of Levels	Mounting Type	Positions Per Level	Current	Pitch	Wire Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Mating Orientation (Angle) (Alternate)	Mating Orientation (Description)	Mating Orientation (Angle)	Color	Voltage	Contact Material	Shell Material	Shell Finish	Fastening Type	Termination	Number of Positions	Position Types	Ingress Protection IP Rating	Ingress Protection Description	Contact Finish - Mating	Applications	Shell Size - Insert	Shell Size - Insert	Primary Material	Features	Connector Type	Plating
McGill Microwave Systems TV0651500000G	M3	Zinc Plated	Steel	-40 °C	115 °C	0.4 Nm	Brass	Nickel Plated	Thermoplastic	1	Through Hole	6	10 A	0.197 in	Rising Cage Clamp Screw	26 AWG	14 AWG	125 °	Angle with Board	55 °	Green	300 V

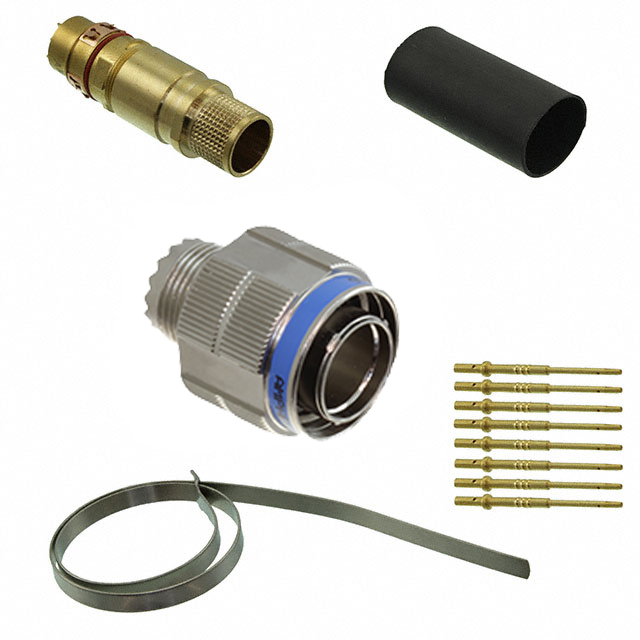

McGill Microwave Systems TV06UCOMCF11P				-55 °C	125 °C						Free Hanging (In-Line)										Silver		Brass	Aluminum	Nickel	Threaded	Crimp	8	Data	IP68	Dust Tight Waterproof	Gold	Aviation Marine Military	11	11	Metal	Coupling Nut Heat Shrink	Male Pins Plug
McGill Microwave Systems TV0631500000G	M2	Zinc Plated	Steel	-40 °C	115 °C	0.2 Nm	Brass	Nickel Plated	Thermoplastic	1	Through Hole	6	10 A	0.15 in	Rising Cage Clamp Screw	28 AWG	16 AWG	125 °	Angle with Board	55 °	Green	300 V	Brass																Tin Plated
