CL1F3 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLG HSG FMALE 18POS INLINE

Part	Contact Type	Ingress Protection IP Rating	Ingress Protection Description	Material Flammability Rating	Mounting Type	Connector Type	Number of Positions	Contact Size	Type	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Note	Housing Color	Contact Shape	Fastening Type	Shell Size - Insert Width	Shell Size - Insert Length	Features	Shielding	Insert Material	Orientation	Ingress Protection
Amphenol Aerospace Operations CL1F3103	Crimp Solder Cup	IP68	Dust Tight Waterproof	UL94 V-0	Free Hanging (In-Line)	Plug Housing	18	16 S	For Female Sockets	125 °C	-40 °C	Halogen Free Thermoplastic	Contacts Not Included	Black	Circular	Twist Latch	1 mm	3 mm	Coupling Nut	Unshielded	Thermoplastic	Keyed
Amphenol Aerospace Operations CL1F3201	Crimp Solder Cup	IP67	Dust Tight Waterproof	UL94 V-0	Free Hanging (In-Line)	Plug Housing	31	20	For Female Sockets	125 °C	-40 °C	Halogen Free Thermoplastic	Contacts Not Included	Black	Circular	Twist Latch	2 mm	3 mm	Coupling Nut	Unshielded	Thermoplastic	Keyed
Amphenol Aerospace Operations CL1F3100	Crimp Solder Cup			UL94 V-0	Free Hanging (In-Line)	Plug Housing	18	16 S	For Female Sockets	125 °C	-40 °C	Halogen Free Thermoplastic	Contacts Not Included	Black	Circular	Twist Latch	1 mm	3 mm	Coupling Nut	Unshielded	Thermoplastic	Keyed	IP40
Amphenol Aerospace Operations CL1F3200	Crimp Solder Cup			UL94 V-0	Free Hanging (In-Line)	Plug Housing	31	20	For Female Sockets	125 °C	-40 °C	Halogen Free Thermoplastic	Contacts Not Included	Black	Circular	Twist Latch	2 mm	3 mm	Coupling Nut	Unshielded	Thermoplastic	Keyed	IP40
Amphenol Aerospace Operations CL1F3101	Crimp Solder Cup	IP67	Dust Tight Waterproof	UL94 V-0	Free Hanging (In-Line)	Plug Housing	18	16 S	For Female Sockets	125 °C	-40 °C	Halogen Free Thermoplastic	Contacts Not Included	Black	Circular	Twist Latch	1 mm	3 mm	Coupling Nut	Unshielded	Thermoplastic	Keyed

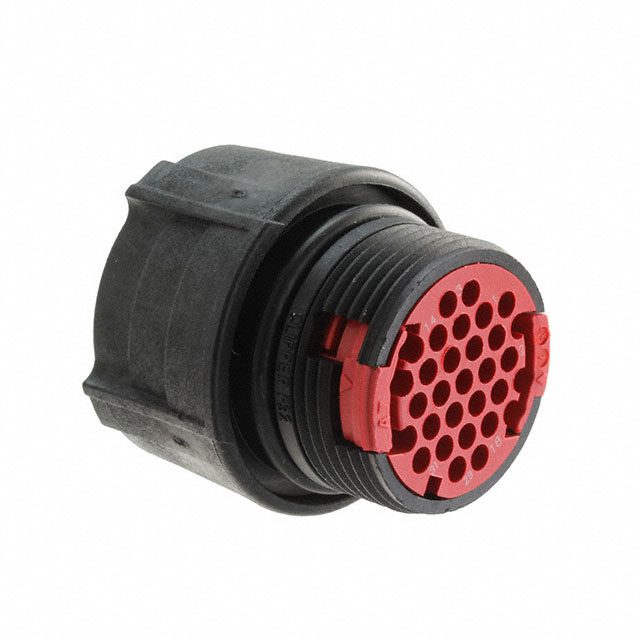

Amphenol Aerospace Operations CL1F3203	Crimp Solder Cup	IP68	Dust Tight Waterproof	UL94 V-0	Free Hanging (In-Line)	Plug Housing	31	20	For Female Sockets	125 °C	-40 °C	Halogen Free Thermoplastic	Contacts Not Included	Black	Circular	Twist Latch	2 mm	3 mm	Coupling Nut	Unshielded	Thermoplastic	Keyed
