V704 Series

Catalog

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 8A; 300V

Part	Termination Style	Color	Number of Levels	Type	Contact Mating Finish	Voltage - UL	Mounting Type	Positions Per Level	Current - UL	Number of Positions	Pitch	Header Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Contact Material	Contact Tail Length	Housing Material	Material Flammability Rating	Features	Header Orientation Angle

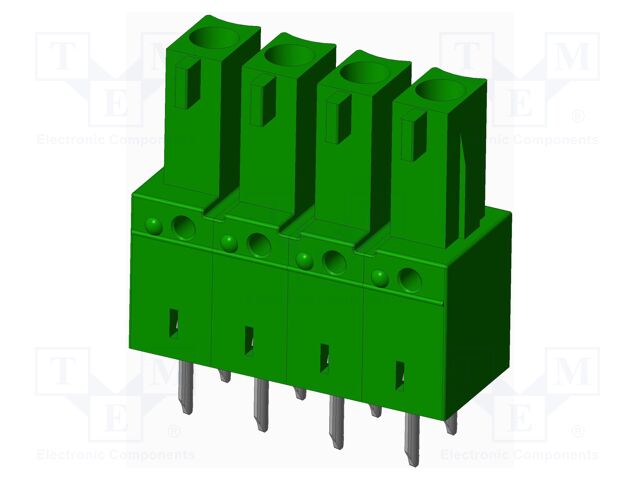

McGill Microwave Systems V70431500000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	8 A	4	0.15 in	Vertical	-40 °C	115 °C	0.571 in	Phosphor Bronze	0.134 in	Thermoplastic	UL94 V-0

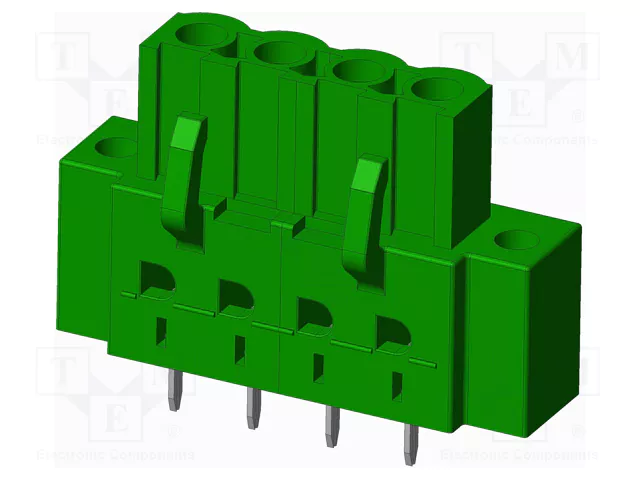

McGill Microwave Systems V70432500000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	8 A	4	0.15 in	Vertical	-40 °C	115 °C	0.571 in	Phosphor Bronze	0.134 in	Thermoplastic	UL94 V-0	Mating Flange

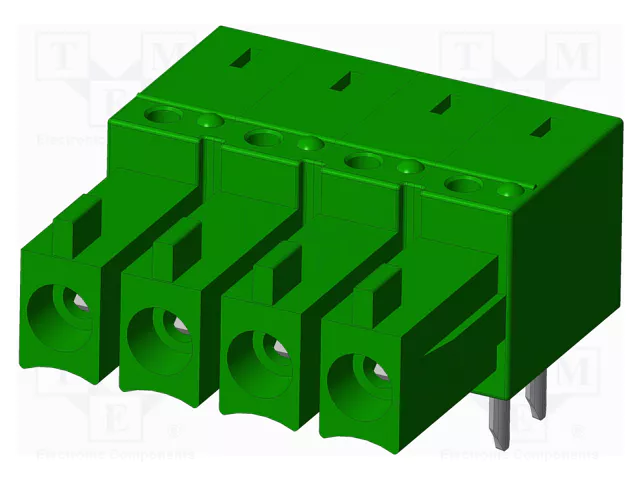

McGill Microwave Systems V70412510000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	4 A	4	0.138 in	Right Angle	-40 °C	115 °C	0.268 in	Phosphor Bronze	0.134 in	Thermoplastic	UL94 V-0	Mating Flange	90 °
McGill Microwave Systems V70402510000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	20 A	4	0.3 in	Right Angle	-40 °C	115 °C		Copper	0.138 in	Thermoplastic	UL94 V-0	Mating Flange Retention Latches	90 °
McGill Microwave Systems V704A2510000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	10 A	4	0.295 in	Right Angle	-40 °C	115 °C		Phosphor Bronze	0.138 in	Thermoplastic	UL94 V-0	Mating Flange Retention Latches	90 °
McGill Microwave Systems V70472500000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	10 A	4	0.197 in	Vertical	-40 °C	115 °C	0.748 in	Phosphor Bronze	0.138 in	Thermoplastic	UL94 V-0	Mating Flange Retention Latches
McGill Microwave Systems V704A1500000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	10 A	4	0.295 in	Vertical	-40 °C	115 °C	0.748 in	Phosphor Bronze	0.138 in	Thermoplastic	UL94 V-0	Retention Latches
McGill Microwave Systems V70432510000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	8 A	4	0.15 in	Right Angle	-40 °C	115 °C	0.268 in	Phosphor Bronze	0.134 in	Thermoplastic	UL94 V-0	Mating Flange	90 °
McGill Microwave Systems V70452510000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	20 A	4	5.08 mm	Right Angle	-40 °C	115 °C		Copper	0.138 in	Thermoplastic	UL94 V-0	Mating Flange Retention Latches	90 °
McGill Microwave Systems V70411510000G	Solder	Green	1	Female Sockets Header	Tin	300 V	Through Hole	4	4 A	4	0.138 in	Right Angle	-40 °C	115 °C	0.26 in	Phosphor Bronze	0.134 in	Thermoplastic	UL94 V-0		90 °
