2921-61 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN SMA 0HZ TO 18GHZ 50OHM CLAMP ST CABLE MOUNT F GOLD OVER NICKEL
| Part | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Body Finish | Body Material | Dielectric Material | Frequency - Max | Housing Color | Number of Ports | Connector Type | Shield Termination | Cable Group Diameter (Semi Rigid) | Cable Group | Fastening Type | Contact Termination | Mounting Feature | Connector Style | Center Contact Material | Mounting Type | Impedance | Cable Group Size | For Use With/Related Products | Accessory Type | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

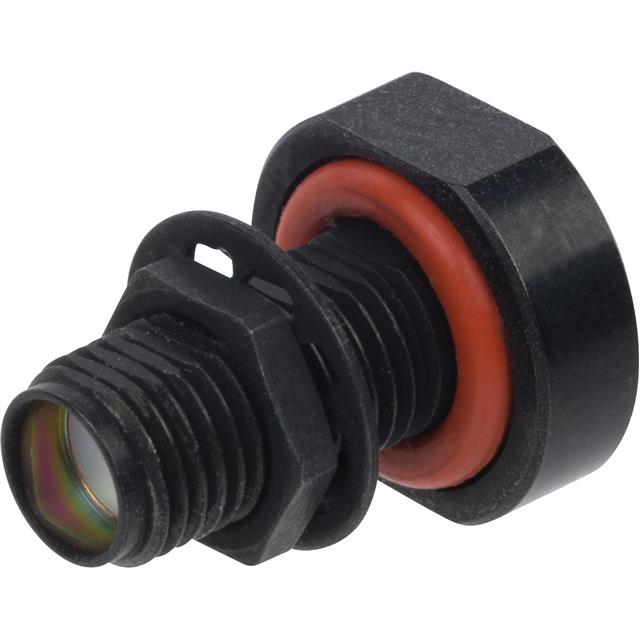

 McGill Microwave Systems | 500 cycles | -65 °C | 165 °C | Gold | Black Chromate | Stainless Steel | Polytetrafluoroethylene (PTFE) | 18 GHz | Black | 1 | Female Socket Jack | Clamp | 0.085 in | RG-405 | Threaded | Solder | Bulkhead Front Side Nut | SMA | Beryllium Copper | Panel Mount | 50 Ohm | ||||
 McGill Microwave Systems | 500 cycles | -65 °C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 18 GHz | Silver | 1 | Female Socket Jack | Clamp | Semi Rigid | Threaded | Solder | Bulkhead Front Side Nut | SMA | Beryllium Copper | Panel Mount | 50 Ohm | 0.047 " | |||||
 McGill Microwave Systems | Gold | Stainless Steel | SMA | SMA Plugs | Cap (Cover) Dust | ||||||||||||||||||||

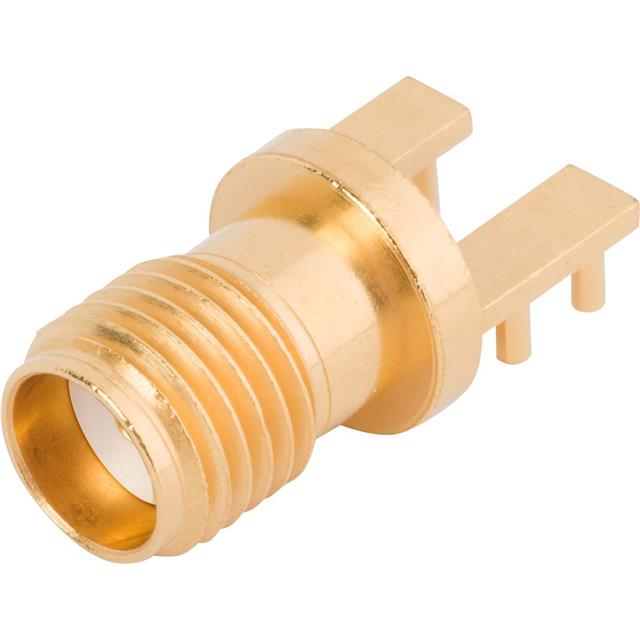

 McGill Microwave Systems | 500 cycles | -65 °C | 165 °C | Gold | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 18 GHz | Gold | 1 | Female Socket Jack | Solder | Threaded | Solder | SMA | Beryllium Copper | Board Edge End Launch | 50 Ohm | 0.13 dB | ||||||
 McGill Microwave Systems | 500 cycles | -65 °C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 26.5 GHz | Silver | 1 | Female Socket Jack | Screw | Threaded | Compression | SMA | Beryllium Copper | Board Edge End Launch | 50 Ohm |
