SS16 Series

Catalog

CONTACT SOCKET 16AWG SZ16 CRIMP

Part	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Type	Type	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Finish	Contact Size	Contact Termination	Features	Contact Material	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Termination Finish
McGill Microwave Systems SS16M2G10	0.75 mm²	1.5 mm²	Socket	Signal Stamped	18 AWG	16 AWG	Gold	16 S	Crimp	Insulation Support	Copper Alloy	10 Ąin
McGill Microwave Systems SS16M2N	0.75 mm²	1.5 mm²	Socket	Signal Stamped	18 AWG	16 AWG	Nickel	16 S	Crimp	Insulation Support	Copper Alloy

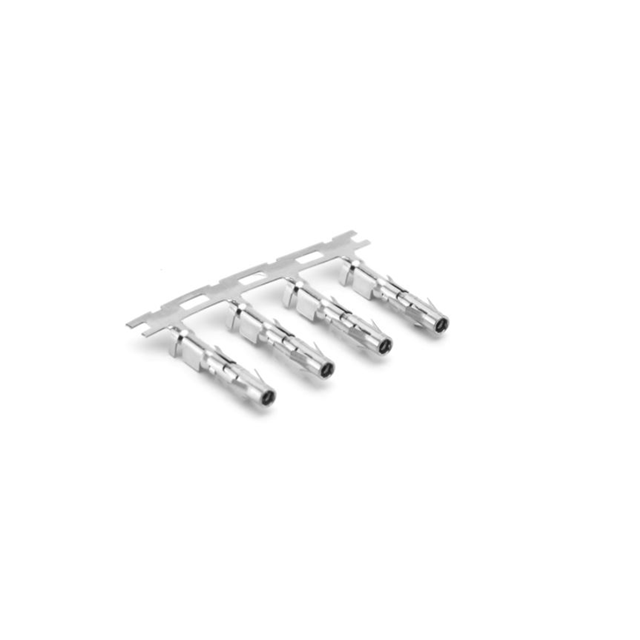

McGill Microwave Systems SS16M1T	0.75 mm²	1.5 mm²	Socket	Signal Stamped	18 AWG	16 AWG	Tin	16 S	Crimp	Insulation Support	Copper Alloy
McGill Microwave Systems SS16M2F	0.75 mm²	1.5 mm²	Socket	Signal Stamped	18 AWG	16 AWG	Gold	16 S	Crimp	Insulation Support	Copper Alloy	0	Flash	Flash

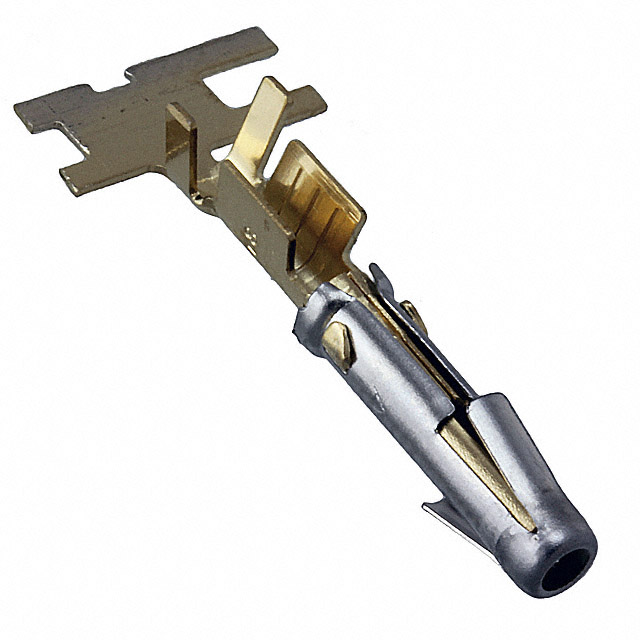

McGill Microwave Systems SS16M1F	0.75 mm²	1.5 mm²	Socket	Signal Stamped	18 AWG	16 AWG	Gold	16 S	Crimp	Insulation Support	Copper Alloy	0	Flash	Flash	Copper Alloy
McGill Microwave Systems SS16M2G30	0.75 mm²	1.5 mm²	Socket	Signal Stamped	18 AWG	16 AWG	Gold	16 S	Crimp	Insulation Support	Copper Alloy	30 µin
McGill Microwave Systems SS16M1G10	0.75 mm²	1.5 mm²	Socket	Signal Stamped	18 AWG	16 AWG	Gold	16 S	Crimp	Insulation Support	Copper Alloy	10 Ąin
