ADCMP393 Series

Catalog

QUAD COMPARATOR WITH KNOWN POWER-UP STATE

Part	Package Name	Number of Elements	Supply Configuration	Voltage - Supply (Single) Minimum	Voltage - Supply (Single) Maximum	Voltage - Input Offset (Max)	Package Width	Package Length	Type	Propagation Delay (Max)	Output Type	Current - Input Bias (Max)	Current - Quiescent (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Hysteresis	CMRR (Typ)	PSRR (Typ)	Mounting Type

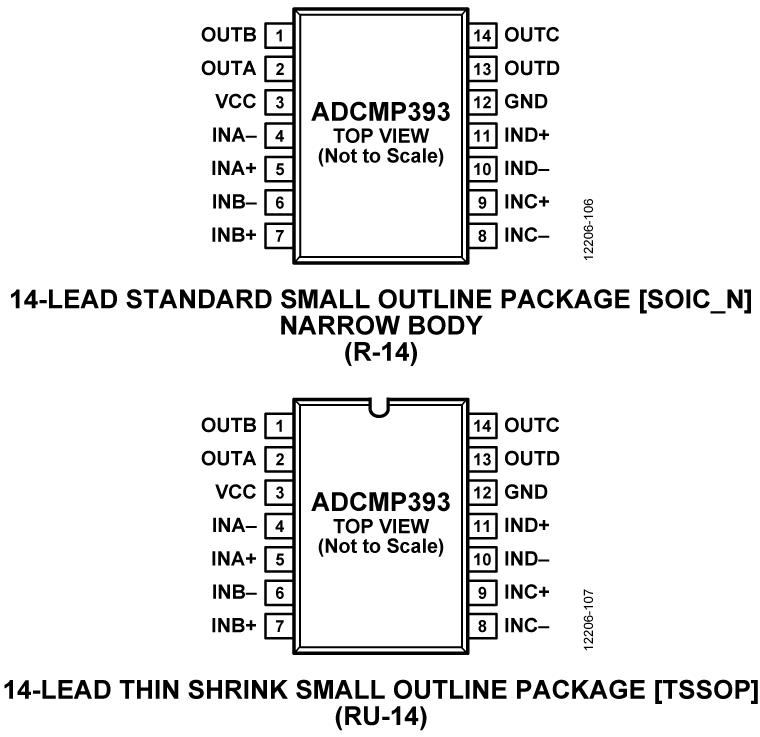

Analog Devices Inc./Maxim Integrated ADCMP393ARZ-RL7	14-SOIC	4	Dual Single	2.3 V	5.5 V	2.5 mV	3.9 mm	0.154 in	General Purpose Standard (General Purpose)	4.2 µs	Rail-to-Rail	0.03 µA	36.8 µA	125 °C	-40 °C	4 mV	74 dB	80 dB	Surface Mount
Analog Devices Inc./Maxim Integrated ADCMP393ARUZ	14-TSSOP	4	Dual Single	2.3 V	5.5 V	2.5 mV	4.4 mm	0.173 in	General Purpose Standard (General Purpose)	4.2 µs	Rail-to-Rail	0.03 µA	36.8 µA	125 °C	-40 °C	4 mV	74 dB	80 dB	Surface Mount
Analog Devices Inc./Maxim Integrated ADCMP393ARZ	14-SOIC	4	Dual Single	2.3 V	5.5 V	2.5 mV	3.9 mm	0.154 in	General Purpose Standard (General Purpose)	4.2 µs	Rail-to-Rail	0.03 µA	36.8 µA	125 °C	-40 °C	4 mV	74 dB	80 dB	Surface Mount
Analog Devices Inc./Maxim Integrated ADCMP393ARUZ-RL7	14-TSSOP	4	Dual Single	2.3 V	5.5 V	2.5 mV	4.4 mm	0.173 in	Standard (General Purpose)	4.2 µs	Rail-to-Rail	0.03 µA	36.8 µA	125 °C	-40 °C	4 mV	74 dB	80 dB	Surface Mount
