RT00142 Series

Catalog

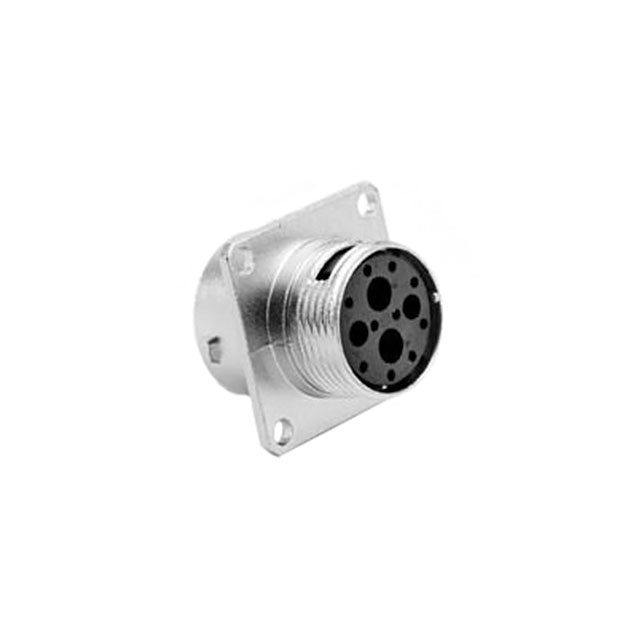

SQUARE FLANGE RECEPTACLE, FEMALE

Part	Shell Material	Material Flammability Rating	Number of Positions	Orientation	Insert Material	Shielding	Mounting Type	Contact Shape	Note	Type	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Housing Color	Fastening Type	Connector Type	Contact Type	Shell Finish	Shell Size - Insert Length	Shell Size - Insert Width	Features	Mounting Feature	Contact Size
McGill Microwave Systems RT00142SNHEC	Zinc Alloy	UL94 V-0	4	N (Normal)	Thermoplastic	Shielded	Panel Mount	Circular	Contacts Not Included	For Female Sockets	Dust Tight Waterproof	IP67	-40 °C	105 °C	Silver	Bayonet Lock	Receptacle Housing	Crimp	Nickel	14 mm	2 mm	Backshell	Flange	2.5 mm 16
McGill Microwave Systems RT00142PNH03	Zinc Alloy	UL94 V-0	4	N (Normal)	Thermoplastic	Shielded	Panel Mount	Circular	Contacts Not Included	For Male Pins	Dust Tight Waterproof	IP67	-40 °C	125 °C	Silver	Bayonet Lock	Receptacle Housing	Crimp	Nickel	14 mm	2 mm		Flange	2.5 mm 16
McGill Microwave Systems RT00142PNH	Zinc Alloy	UL94 V-0	4	N (Normal)	Thermoplastic	Shielded	Panel Mount	Circular	Contacts Not Included	For Male Pins	Dust Tight Waterproof	IP67	-40 °C	105 °C	Silver	Bayonet Lock	Receptacle Housing	Crimp	Nickel	14 mm	2 mm		Flange	2.5 mm 16
McGill Microwave Systems RT00142SNH	Zinc Alloy	UL94 V-0	4	N (Normal)	Thermoplastic	Shielded	Panel Mount	Circular	Contacts Not Included	For Female Sockets	Dust Tight Waterproof	IP67	-40 °C	105 °C	Silver	Bayonet Lock	Receptacle Housing	Crimp	Nickel	14 mm	2 mm		Flange	2.5 mm 16
