EZ-1700 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

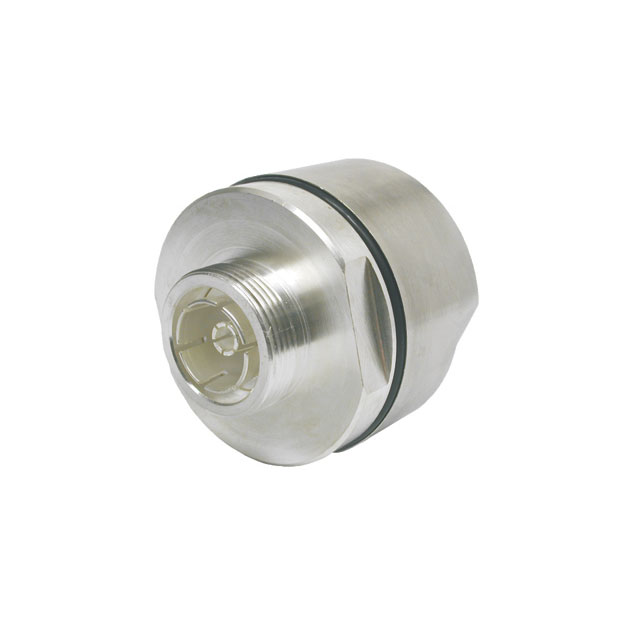

7/16 DIN FEMALE CLAMP CONNECTOR,
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Body Material | Insertion Loss | Dielectric Material | Body Finish | Mating Cycles | Center Contact Material | Connector Style | Housing Color | Shield Termination | Number of Ports | Connector Type | Mounting Type | Impedance | Fastening Type | Cable Group | Frequency - Max | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | -40 °C | 85 °C | Gold | Brass | 0.1 dB | Polytetrafluoroethylene (PTFE) | White Bronze | 500 cycles | Beryllium Copper | 7/16 DIN | Silver | Clamp | 1 | Female Socket Jack | Free Hanging (In-Line) | 50 Ohm | Threaded | LMR-1700 | 3 GHz | Press-Fit |
 McGill Microwave Systems | -55 °C | 155 °C | Tin | Brass | 0.1 dB | Polytetrafluoroethylene (PTFE) | White Bronze | Beryllium Copper | N Type | Silver | Clamp | 1 | Male Pin Plug | Free Hanging (In-Line) | 50 Ohm | Threaded | LMR-1700 | 3.6 GHz | Press-Fit | |

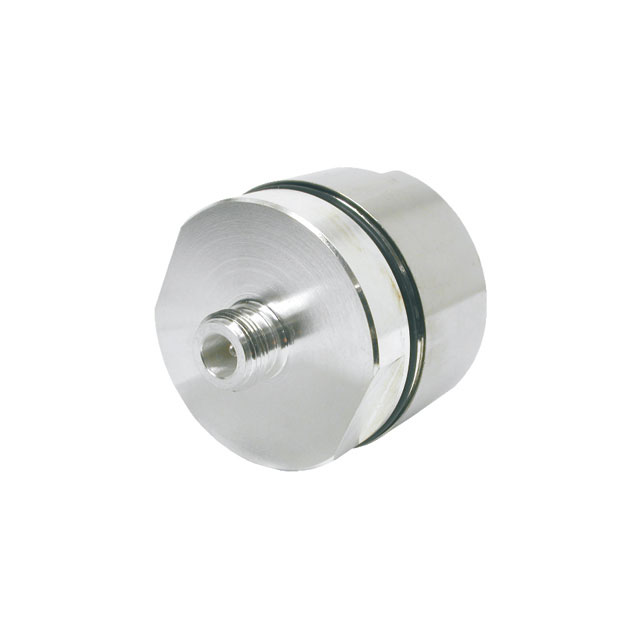

 McGill Microwave Systems | -55 °C | 155 °C | Tin | Brass | 0.1 dB | Polytetrafluoroethylene (PTFE) | White Bronze | 500 cycles | Beryllium Copper | N Type | Silver | Clamp | 1 | Female Socket Jack | Free Hanging (In-Line) | 50 Ohm | Threaded | LMR-1700 | 3 GHz | Press-Fit |
