RTS016 Series

Catalog

CONN RCPT HSG MALE 19POS PNL MT

Part	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Size	Material Flammability Rating	Ingress Protection IP Rating	Ingress Protection Description	Housing Color	Fastening Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Includes	Includes Total Count	Mounting Type	Shielding	Number of Positions	Contact Shape	Contact Type	Features	Mounting Feature	Insert Material	Orientation	Type	Note	Connector Type	Shell Size - Insert Length	Shell Size - Insert Width
McGill Microwave Systems RTS016N19PHEC03	Thermoplastic	125 °C	-40 °C	16 S	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Bayonet Lock	19	16 S	Backshell Connector Gasket O-Ring Ring Seal	6 pcs	Panel Mount	Unshielded	19	Circular	Crimp	Backshell	Flange	Thermoplastic	N (Normal)	For Male Pins	Contacts Not Included	Receptacle Housing
McGill Microwave Systems RTS016N26SHEC03	Thermoplastic	125 °C	-40 °C	20	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Bayonet Lock	26	16 S	Backshell Connector Gasket O-Ring Ring Seal	6 pcs	Panel Mount	Unshielded	26	Circular	Crimp	Backshell	Flange	Thermoplastic	N (Normal)	For Female Sockets	Contacts Not Included	Receptacle Housing

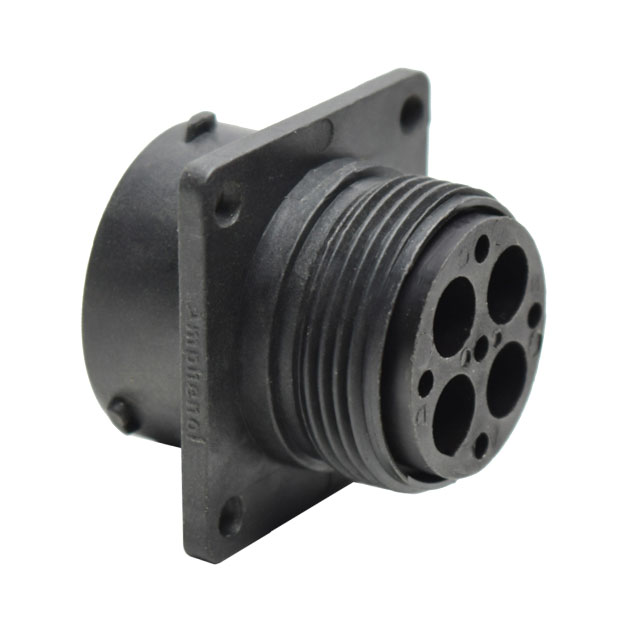

McGill Microwave Systems RTS016N4P03	Thermoplastic	125 °C	-40 °C	8	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Bayonet Lock			Connector Gasket	2 pcs	Panel Mount	Unshielded	4	Circular	Crimp		Flange	Thermoplastic	N (Normal)	For Male Pins	Contacts Not Included	Receptacle Housing	16 mm	4 mm
McGill Microwave Systems RTS016N26S03	Thermoplastic	125 °C	-40 °C	20	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Bayonet Lock	26	16 S	Connector Gasket	2 pcs	Panel Mount	Unshielded	26	Circular	Crimp		Flange	Thermoplastic	N (Normal)	For Female Sockets	Contacts Not Included	Receptacle Housing

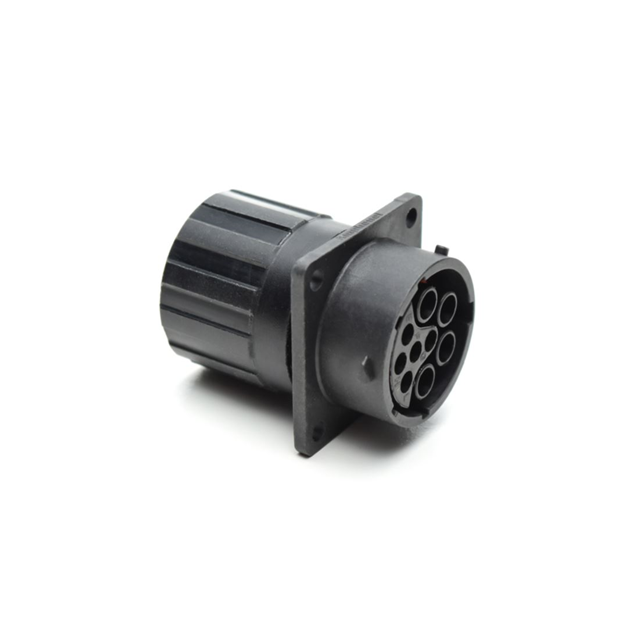

McGill Microwave Systems RTS016N09SHEC03	Thermoplastic	125 °C	-40 °C	2.5 mm 16	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Bayonet Lock			Backshell Connector Gasket O-Ring Ring Seal	6 pcs	Panel Mount	Unshielded	9	Circular	Crimp	Backshell	Flange	Thermoplastic	N (Normal)	For Female Sockets	Contacts Not Included	Receptacle Housing	16 mm	9 mm
McGill Microwave Systems RTS016N26P03	Thermoplastic	125 °C	-40 °C	20	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Bayonet Lock	26	16 S	Connector Gasket	2 pcs	Panel Mount	Unshielded	26	Circular	Crimp		Flange	Thermoplastic	N (Normal)	For Male Pins	Contacts Not Included	Receptacle Housing
McGill Microwave Systems RTS016N09P03	Thermoplastic	125 °C	-40 °C	2.5 mm 16	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Bayonet Lock			Connector Gasket	2 pcs	Panel Mount	Unshielded	9	Circular	Crimp		Flange	Thermoplastic	N (Normal)	For Male Pins	Contacts Not Included	Receptacle Housing	16 mm	9 mm
McGill Microwave Systems RTS016N4PHEC03	Thermoplastic	125 °C	-40 °C	8	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Bayonet Lock			Backshell Connector Gasket O-Ring Ring Seal	6 pcs	Panel Mount	Unshielded	4	Circular	Crimp	Backshell	Flange	Thermoplastic	N (Normal)	For Male Pins	Contacts Not Included	Receptacle Housing	16 mm	4 mm
