CLX6B Series
Manufacturer: CreeLED, Inc.
Beta
⌘K

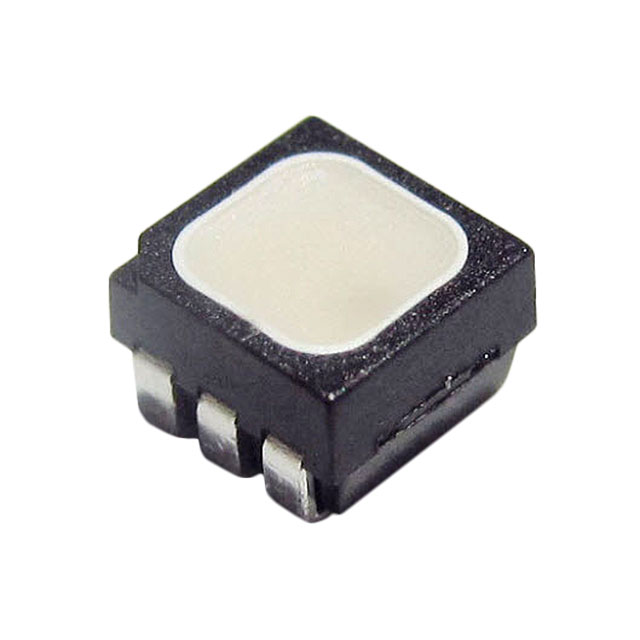

LED RGB DIFFUSED 6PLCC SMD
| Part | Height (Max) | Configuration | Lens Transparency | Lens Style | Package Name | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Green) | Voltage - Forward (Vf) (Typ) (Blue) | Voltage - Forward (Vf) (Typ) (Red) | Color | Wavelength - Dominant (Red) | Wavelength - Dominant Color | Wavelength - Dominant (Green) | Wavelength - Dominant (Blue) | Lens Color | Millicandela Rating Colors | Millicandela Rating (Red) | Millicandela Rating (Green) | Millicandela Rating (Blue) | Package / Case | Size / Dimension Width | Size / Dimension Length | Current - Test (Green) | Current - Test Colors | Current - Test (Red) | Current - Test (Blue) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CreeLED, Inc. | 2.6 mm | Independent | Diffused | Flat Top Square | 6-PLCC | Blue Green Red | 3 V | 3.2 V | 2.1 V | Blue (RGB) Green Red | 622 nm | Blue Green Red | 530 nm | 470 nm | White | Blue Green Red | 1150 mcd | 2300 mcd | 675 mcd | 6-SMD J-Lead | 3.4 mm | 3.5 mm | 20 mA | Blue Green Red | 20 mA | 20 mA | Surface Mount |
