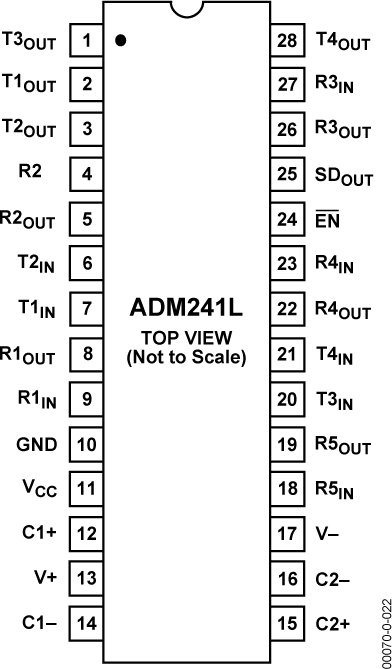

ADM241L Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

LOW POWER, +5V CMOS RS-232 100KBPS TRANSCEIVER WITH 4 DRIVERS, 5 RECEIVERS, SHUTDOWN AND ENABLE PINS

Part	Data Rate	Protocol	Type	Package Name	Duplex	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Receiver Hysteresis	Package Width	Package Length	Number of Receivers	Number of Drivers	Mounting Type
Analog Devices Inc./Maxim Integrated ADM241LARZ	120 Kbps	RS232	Transceiver	28-SOIC	Full	5.25 V	4.75 V	-40 °C	85 °C	650 mV	7.5 mm	0.295 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LARS		RS232	Transceiver	28-SSOP		5.25 V	4.75 V				5.3 mm	0.209 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LJRSZ-REEL	120 Kbps	RS232	Transceiver	28-SSOP	Full	5.25 V	4.75 V	0 °C	70 °C	650 mV	5.3 mm	0.209 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LARZ-REEL	120 Kbps	RS232	Transceiver	28-SOIC	Full	5.25 V	4.75 V	-40 °C	85 °C	650 mV	7.5 mm	0.295 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LJRZ-REEL	120 Kbps	RS232	Transceiver	28-SOIC	Full	5.25 V	4.75 V	0 °C	70 °C	650 mV	7.5 mm	0.295 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LJRS-REEL		RS232	Transceiver	28-SSOP		5.25 V	4.75 V				5.3 mm	0.209 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LARSZ	120 Kbps	RS232	Transceiver	28-SSOP	Full	5.25 V	4.75 V	-40 °C	85 °C	650 mV	5.3 mm	0.209 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LARSZ-REEL	120 Kbps	RS232	Transceiver	28-SSOP	Full	5.25 V	4.75 V	-40 °C	85 °C	650 mV	5.3 mm	0.209 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LARS-REEL		RS232	Transceiver	28-SSOP		5.25 V	4.75 V				5.3 mm	0.209 in	5	4	Surface Mount
Analog Devices Inc./Maxim Integrated ADM241LJRSZ	120 Kbps	RS232	Transceiver	28-SSOP	Full	5.25 V	4.75 V	0 °C	70 °C	650 mV	5.3 mm	0.209 in	5	4	Surface Mount
