RT002028 Series

Catalog

28 POSITION SQUARE FLANGE RECEPTACLE, MALE, SHELL SIZE 20, SILICONE SEAL, AND END CAP WITH INDIVIDUAL WIRE SEALING /BAG ROHS COM

Part	Shell Material	Housing Color	Shell Finish	Primary Material	Mounting Feature	Number of Positions	Mounting Type	Connector Type	Contact Size	Features	Contact Shape	Material Flammability Rating	Contact Type	Fastening Type	Note	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Orientation	Type	Shielding	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish Thickness - Mating	Applications	Current Rating	Contact Material	Termination	Voltage Rating	Contact Finish - Mating	Color

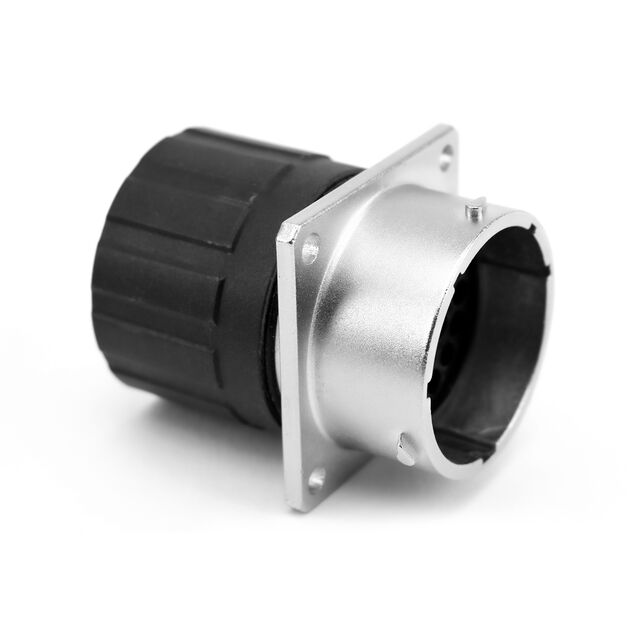

McGill Microwave Systems RT002028PNHEC03	Zinc Alloy	Silver	Nickel	Metal	Flange	28	Panel Mount	Receptacle Housing	16 S	Cap (Cover)	Circular	UL94 V-0	Crimp	Bayonet Lock	Contacts Not Included	125 °C	-40 °C	Thermoplastic	N (Normal)	For Male Pins	Shielded	28	20	Dust Tight Waterproof	IP67
McGill Microwave Systems RT002028PNHECR	Zinc Alloy	Silver	Nickel	Metal	Flange	28	Panel Mount	Receptacle Housing	16 S	Cap (Cover)	Circular	UL94 V-0	Crimp	Bayonet Lock	Contacts Not Included	105 °C	-40 °C	Thermoplastic	N (Normal)	For Male Pins	Shielded	28	20	Dust Tight Waterproof	IP67

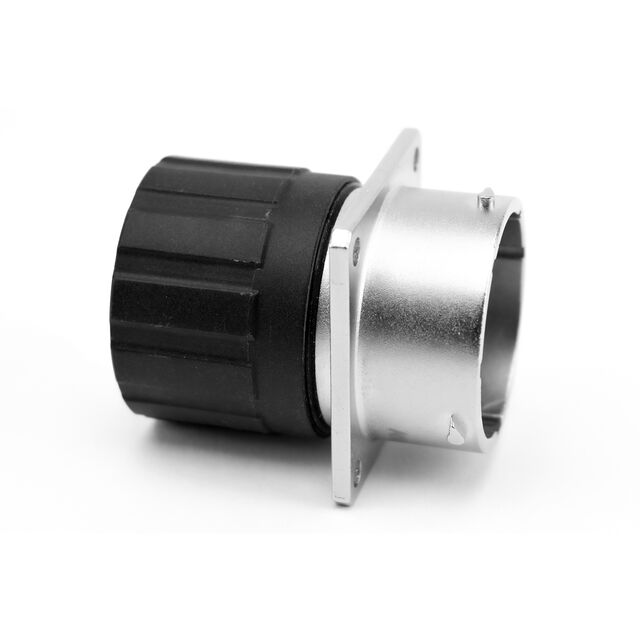

McGill Microwave Systems RT002028SNHECR	Zinc Alloy	Silver	Nickel	Metal	Flange	28	Panel Mount	Receptacle Housing	16 S	Cap (Cover)	Circular	UL94 V-0	Crimp	Bayonet Lock	Contacts Not Included	105 °C	-40 °C	Thermoplastic	N (Normal)	For Female Sockets	Shielded	28	20	Dust Tight Waterproof	IP67
McGill Microwave Systems RT002028SNHEC03R	Zinc Alloy	Silver	Nickel		Flange	28	Panel Mount	Receptacle Housing	16 S	Backshell	Circular	UL94 V-0	Crimp	Bayonet Lock	Contacts Not Included	125 °C	-40 °C	Thermoplastic	N (Normal)	For Female Sockets	Shielded	28	20	Dust Tight Waterproof	IP67
McGill Microwave Systems RT002028SNHEC03	Zinc Alloy	Silver	Nickel	Metal	Flange	28	Panel Mount	Receptacle Housing	16 S	Cap (Cover)	Circular	UL94 V-0	Crimp	Bayonet Lock	Contacts Not Included	125 °C	-40 °C	Thermoplastic	N (Normal)	For Female Sockets	Shielded	28	20	Dust Tight Waterproof	IP67

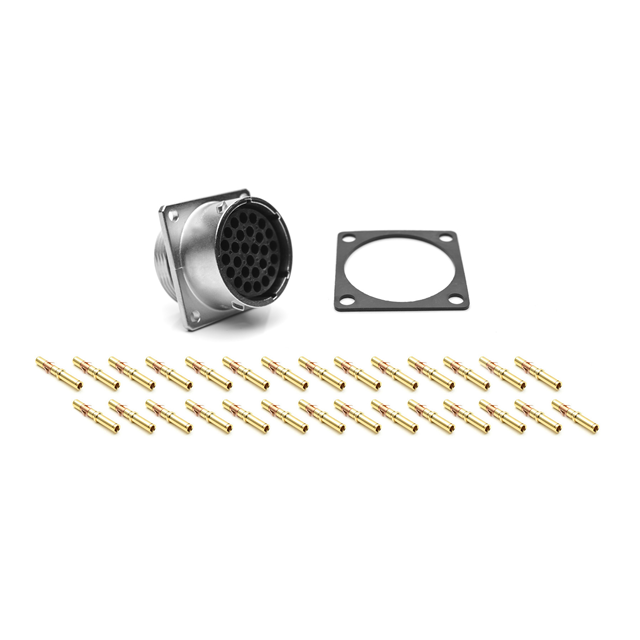

McGill Microwave Systems RT002028SKNH03-K	Zinc Die Cast		Nickel	Metal	Flange	28	Panel Mount	Female Sockets Receptacle				UL94 V-0		Bayonet Lock		105 °C	-40 °C	Nylon 6/6 PA66 Polyamide	N (Normal)		Shielded	28	20	Dust Tight Water Resistant Waterproof	IP67 IP69K	Flash	Aerospace Automation Industrial Telecom Transportation	13 A	Brass	Crimp	250 V	Gold	Silver

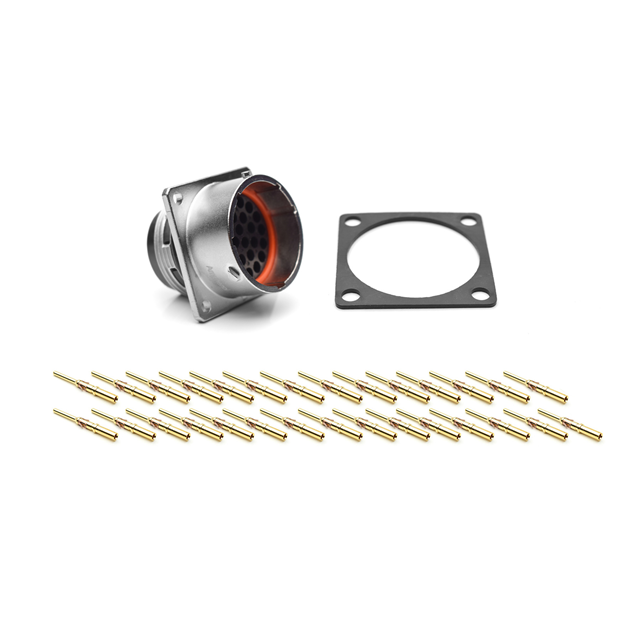

McGill Microwave Systems RT002028PKNH03-K	Zinc Die Cast		Nickel	Metal	Flange	28	Panel Mount	Male Pins Receptacle				UL94 V-0		Bayonet Lock		105 °C	-40 °C	Nylon 6/6 PA66 Polyamide	N (Normal)		Shielded	28	20	Dust Tight Water Resistant Waterproof	IP67 IP69K	Flash	Aerospace Automation Industrial Telecom Transportation	13 A	Brass	Crimp	250 V	Gold	Silver
