162A100 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

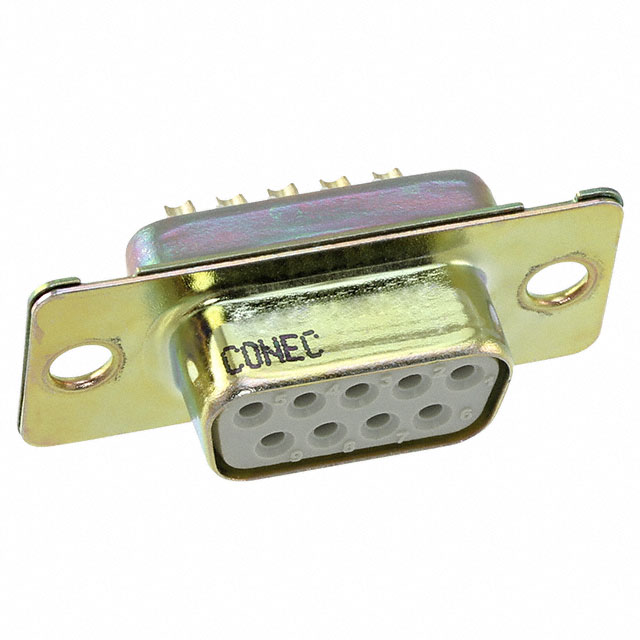

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating | Shell Size | Connector Layout | Number of Rows | Number of Positions | Flange Feature | Shell Material, Finish | Mounting Type | Contact Type | Connector Style | Contact Finish | Termination | Connector Type | Contact Material | Dielectric Material | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 125 °C | -55 °C | 125 V | 1 | DE E | 2 | 9 | Housing Shell (Unthreaded) | Steel Yellow Chromate Plated Zinc | Through Hole | Signal | D-Sub | Gold | Solder | Female Sockets Receptacle | |||
 McGill Microwave Systems | 125 °C | -55 °C | 125 V | 1 | DE E | 2 | 9 | Housing Shell (Unthreaded) | Steel Yellow Chromate Plated Zinc | Panel Mount | Signal | D-Sub | Gold | Solder Cup | Female Sockets Receptacle | Copper Alloy | Polyester | 5 A |
 McGill Microwave Systems | 125 °C | -55 °C | 5 | D DD | 3 | 50 | Housing Shell (Unthreaded) | Steel Yellow Chromate Plated Zinc | Panel Mount | Signal | D-Sub | Gold | Solder Cup | Female Sockets Receptacle | Copper Alloy | Polyester | 5 A | |

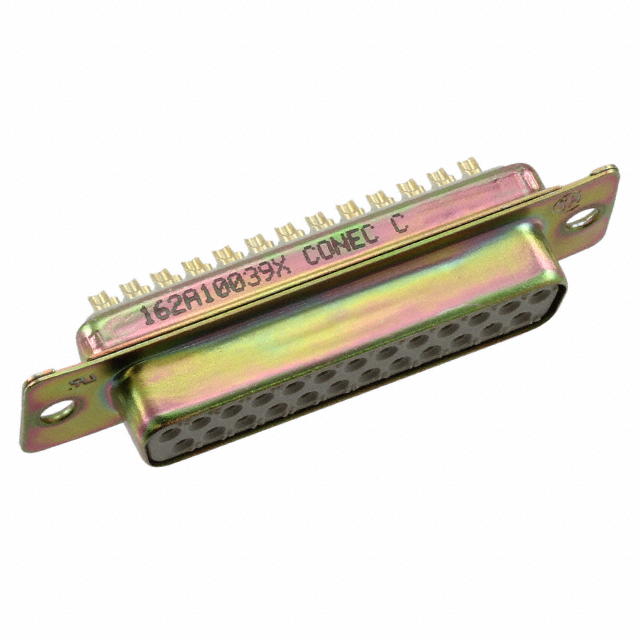

 McGill Microwave Systems | 125 °C | -55 °C | 125 V | 3 | B DB | 2 | 25 | Housing Shell (Unthreaded) | Steel Yellow Chromate Plated Zinc | Panel Mount | Signal | D-Sub | Gold | Solder Cup | Female Sockets Receptacle | Copper Alloy | Polyester | 5 A |
McGill Microwave Systems | ||||||||||||||||||
McGill Microwave Systems | ||||||||||||||||||
McGill Microwave Systems | ||||||||||||||||||
 McGill Microwave Systems | 125 °C | -55 °C | 4 | C DC | 2 | 37 pos | Housing Shell (Unthreaded) | Steel Yellow Chromate Plated Zinc | Panel Mount | Signal | D-Sub | Gold | Solder Cup | Female Sockets Receptacle | Copper Alloy | Polyester | 5 A |
