082-664 Series

Catalog

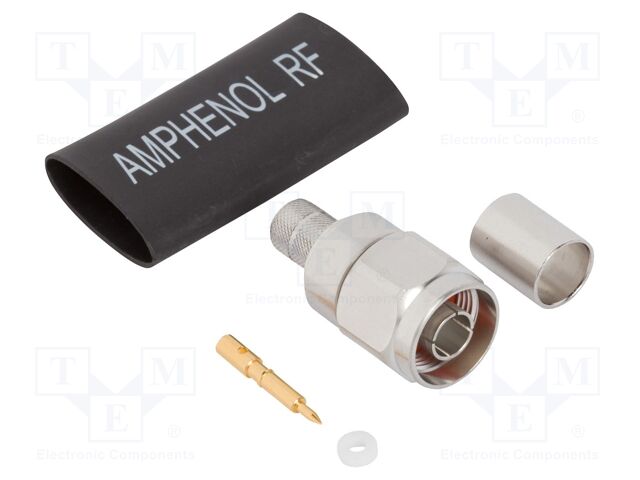

RF / COAXIAL CONNECTOR, LOW SIGNAL LOSS, N TYPE, RIGHT ANGLE PLUG, CRIMP, 50 OHM, LMR-400, BRASS

Part	Number of Ports	Center Contact Material	Impedance	Shield Termination	Connector Style	Contact Termination	Cable Group	Fastening Type	Connector Type	Mounting Type	Frequency - Max	Housing Color	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Body Material	Dielectric Material	Includes	Includes Total Count	Center Contact Plating	Mounting Feature
McGill Microwave Systems 082-6641	1	Brass	50 Ohm	Crimp	N Type	Solder	LMR-400	Threaded	Male Pin Plug	Free Hanging (In-Line) Right Angle	6000 MHz	Silver	500 cycles	-65 °C	165 °C	White Bronze	Brass	Polytetrafluoroethylene (PTFE)	Connector End Cap Ferrule Insulator	4 pcs	Gold
McGill Microwave Systems 082-6644	1	Beryllium Copper	50 Ohm	Crimp	N Type	Solder	LMR-400	Threaded	Female Socket Jack	Free Hanging (In-Line)	6000 MHz	Silver	500 cycles	-55 °C	85 °C	White Bronze	Brass	Polytetrafluoroethylene (PTFE)	Connector Contact Ferrule Heat Shrink Insulator	5 pcs	Gold
McGill Microwave Systems 082-6643	1	Beryllium Copper	50 Ohm	Crimp	N Type	Solder	LMR-400	Threaded	Female Socket Jack	Panel Mount	6000 MHz	Silver	500 cycles	-55 °C	85 °C	White Bronze	Brass	Polytetrafluoroethylene (PTFE)	Connector Contact Ferrule Gasket Heat Shrink Insulator Lockwasher Nut	8 pcs	Gold	Bulkhead Front Side Nut
McGill Microwave Systems 082-6642	1	Brass	50 Ohm	Crimp	N Type	Solder	LMR-400	Threaded	Male Pin Plug	Free Hanging (In-Line)	6000 MHz	Silver	500 cycles	-65 °C	165 °C	White Bronze	Brass	Polytetrafluoroethylene (PTFE)	Connector Contact Ferrule Heat Shrink Insulator	5 pcs	Gold
