ATM04 Series

Catalog

8-WAY RECEPTACLE, MALE CONNECTOR WITH D POSITION KEY / ROHS COMPLIANT: YES

Part	Note	Contact Type	Contact Termination	Color	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Mounting Type	Insulation Material	Features	Number of Positions	Fastening Type	Number of Rows

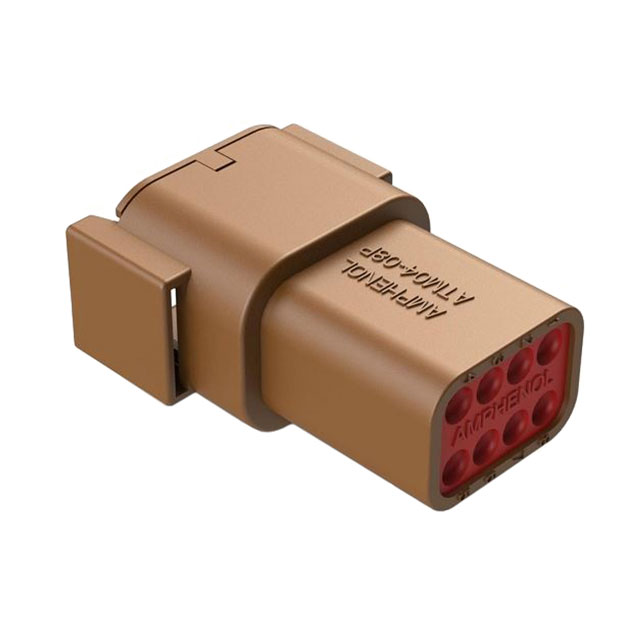

McGill Microwave Systems ATM04-08PD	Contacts Not Included	Male Pin	Crimp	Brown	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Sealed	8	Latch Holder	2
McGill Microwave Systems ATM04-6P-SR01BN		Male Pin	Crimp	Brown	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Cap (Cover) IP67 Sealed Strain Relief	6	Latch Holder	3

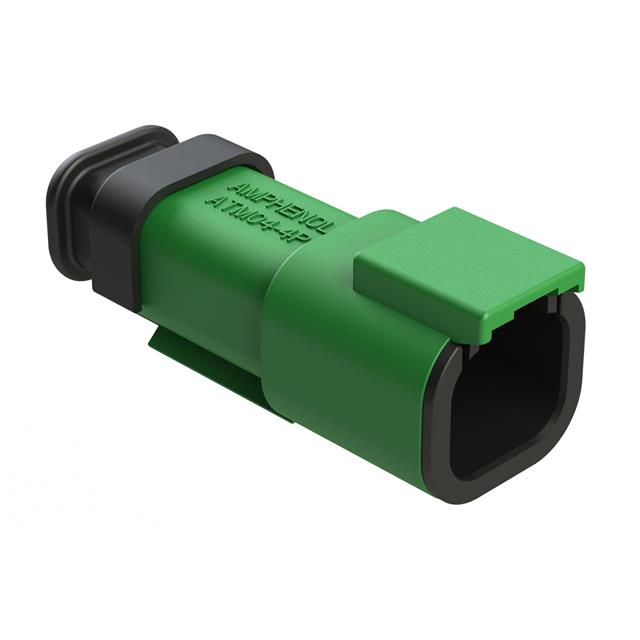

McGill Microwave Systems ATM04-4P-SR01GN		Male Pin	Crimp	Green	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Cap (Cover) IP67 Sealed Strain Relief	4	Latch Holder	2
McGill Microwave Systems ATM04-08PA	Contacts Not Included	Male Pin	Crimp	Gray	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Sealed	8	Latch Holder	2

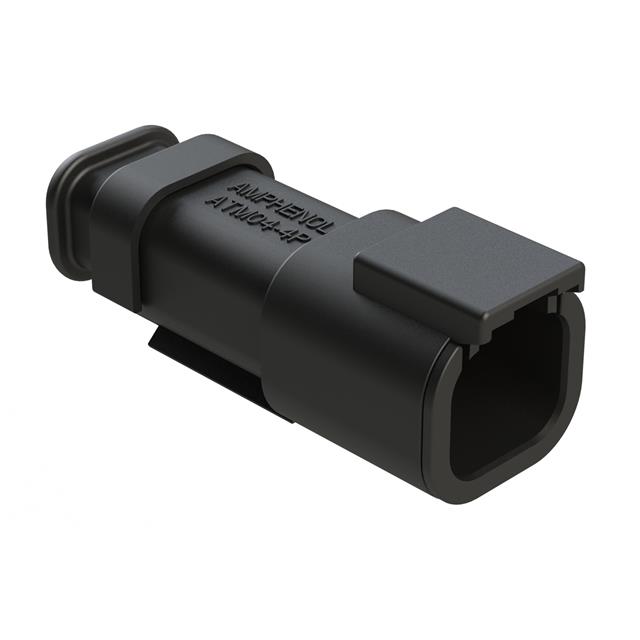

McGill Microwave Systems ATM04-4P-SR01BK		Male Pin	Crimp	Black	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Cap (Cover) IP67 Sealed Strain Relief	4	Latch Holder	2
McGill Microwave Systems ATM04-3P-SR01BL		Male Pin	Crimp	Blue	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Cap (Cover) IP67 Sealed Strain Relief	3	Latch Holder	1

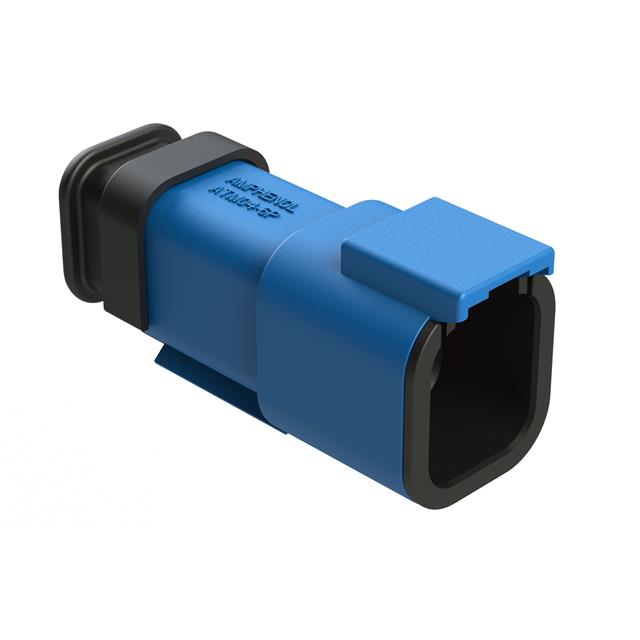

McGill Microwave Systems ATM04-6P-SR01BL		Male Pin	Crimp	Blue	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Cap (Cover) IP67 Sealed Strain Relief	6	Latch Holder	3

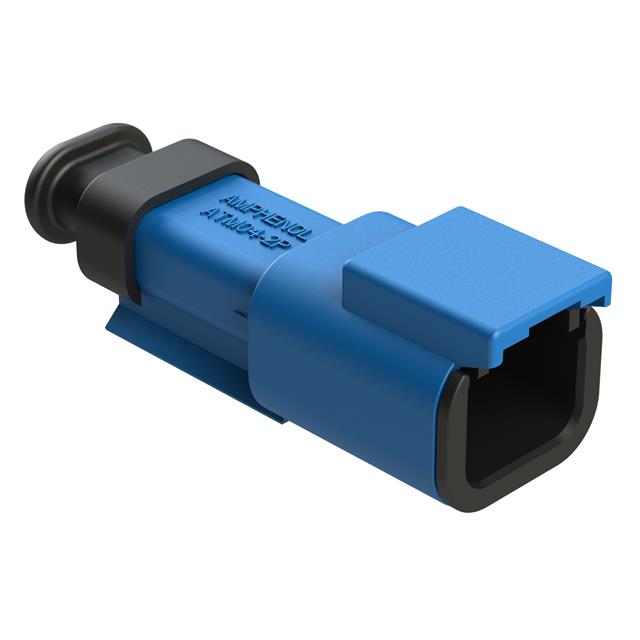

McGill Microwave Systems ATM04-2P-SR01BL		Male Pin	Crimp	Blue	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Cap (Cover) IP67 Sealed Strain Relief	2	Latch Holder	1
McGill Microwave Systems ATM04-12PC-SR1GN	Contacts Not Included	Male Pin	Crimp	Green	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Cap (Cover) Sealed Strain Relief	12		2

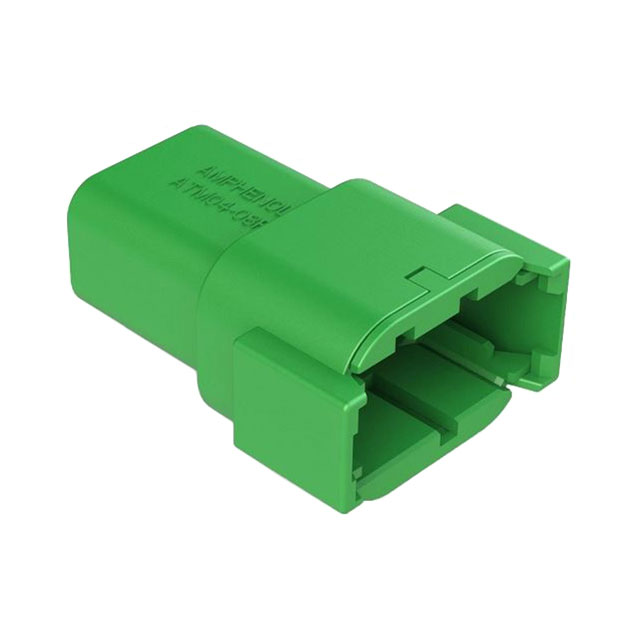

McGill Microwave Systems ATM04-08PC	Contacts Not Included	Male Pin	Crimp	Green	125 °C	-55 °C	Receptacle	Free Hanging (In-Line)	Thermoplastic	Sealed	8	Latch Holder	2
