AT06-08SA Series

Catalog

8-WAY PLUG, BLACK FEMALE CONNECTOR WITH A POSITION KEY AND END CAP / ROHS COMPLIANT: YES

Part	Note	Number of Rows	Contact Termination	Operating Temperature (Max)	Operating Temperature (Min)	Color	Insulation Material	Contact Type	Features	Connector Type	Fastening Type	Number of Positions	Mounting Type

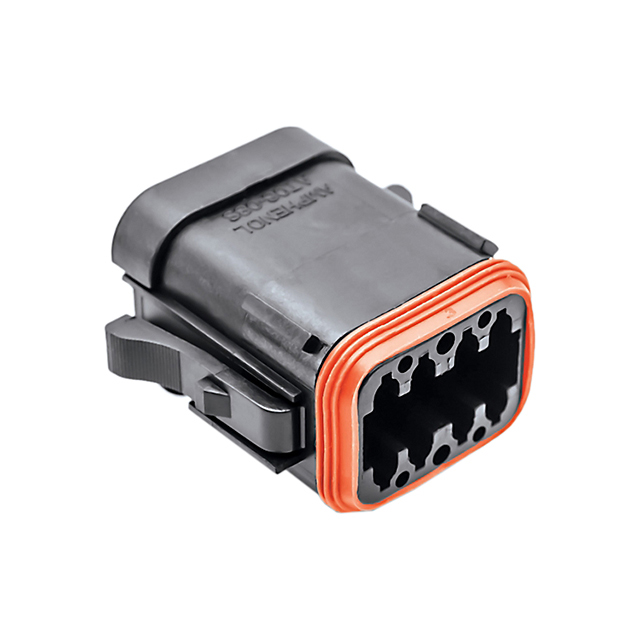

McGill Microwave Systems AT06-08SA-ECBLK	Contacts Not Included	2	Crimp	125 °C	-55 °C	Black	Thermoplastic	Female Socket	Cap (Cover)	Plug	Latch Lock	8	Free Hanging (In-Line)
McGill Microwave Systems AT06-08SA-OMGRY	Contacts Not Included	2	Crimp	125 °C	-55 °C	Gray	Glass Filled Nylon 6/6 Polyamide (PA66)	Female Socket	Sealed	Plug	Latch Lock	8	Free Hanging (In-Line)
McGill Microwave Systems AT06-08SA	Contacts Not Included	2	Crimp	125 °C	-55 °C	Gray	Thermoplastic	Female Socket	Sealed	Plug	Latch Lock	8	Free Hanging (In-Line)

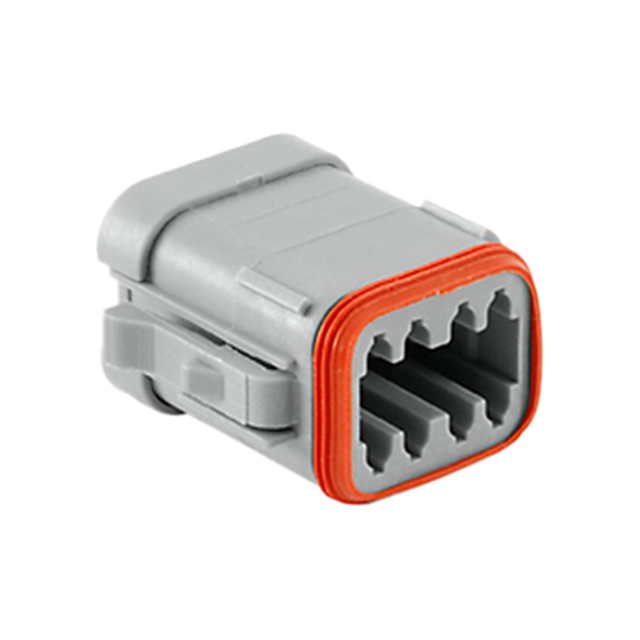

McGill Microwave Systems AT06-08SA-SS01	Contacts Not Included	2	Crimp	125 °C	-55 °C	Gray	Thermoplastic	Female Socket	Cap (Cover) Sealed	Plug	Latch Lock	8	Free Hanging (In-Line)

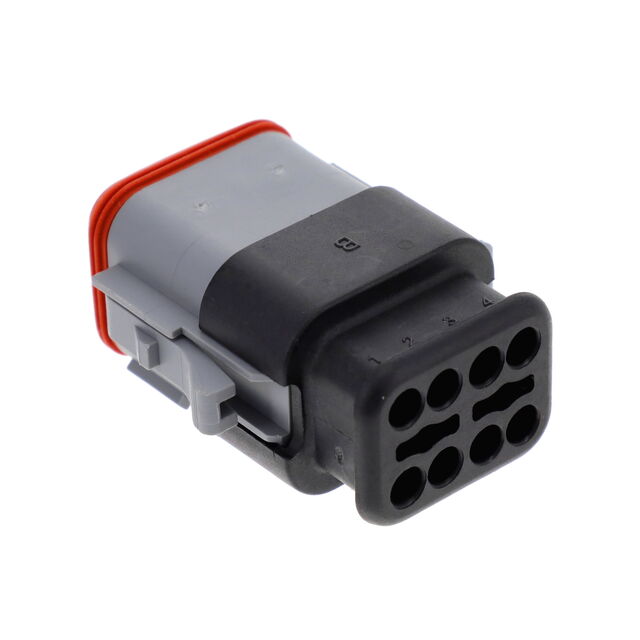

McGill Microwave Systems AT06-08SA-SRGRY	Contacts Not Included	2	Crimp	125 °C	-55 °C	Gray	Thermoplastic	Female Socket	Cap (Cover) Sealed Strain Relief	Plug	Latch Lock	8	Free Hanging (In-Line)

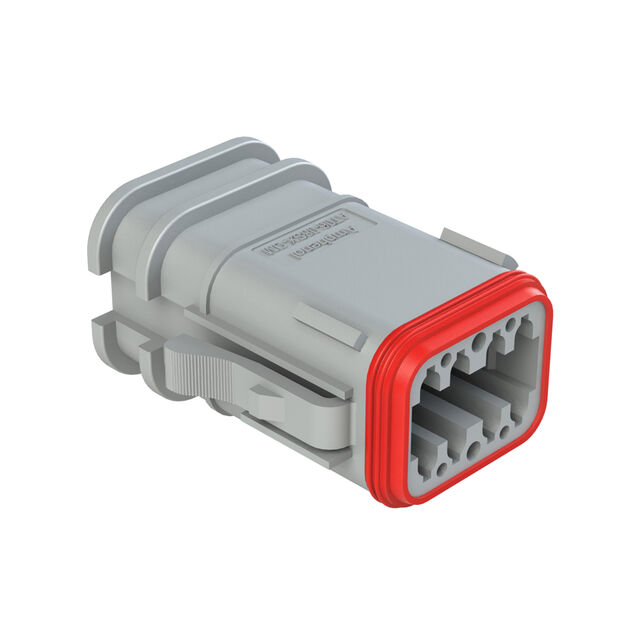

McGill Microwave Systems AT06-08SA-OMRDGRY		2	Crimp	125 °C	-55 °C	Gray	Glass Filled Nylon 6/6 Polyamide (PA66)	Female Socket	Sealed	Plug	Latch Lock	8	Free Hanging (In-Line)
McGill Microwave Systems AT06-08SA-EC01	Contacts Not Included	2	Crimp	125 °C	-55 °C	Gray	Thermoplastic	Female Socket	Cap (Cover)	Plug	Latch Lock	8	Free Hanging (In-Line)

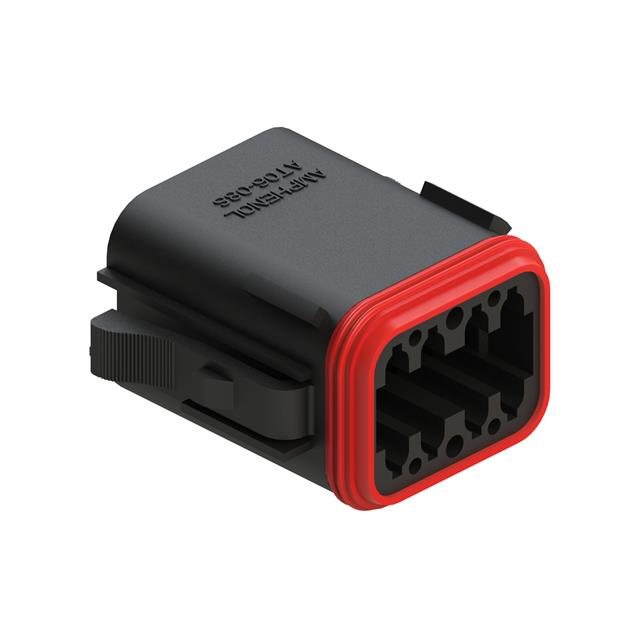

McGill Microwave Systems AT06-08SA-RDBLK	Contacts Not Included	2	Crimp	125 °C	-55 °C	Black	Thermoplastic	Female Socket	Sealed	Plug	Latch Lock	8	Free Hanging (In-Line)
McGill Microwave Systems AT06-08SA-BLK	Contacts Not Included	2	Crimp	125 °C	-55 °C	Black	Thermoplastic	Female Socket	Sealed	Plug	Latch Lock	8	Free Hanging (In-Line)
McGill Microwave Systems AT06-08SA-MM01	Contacts Not Included	2	Crimp	125 °C	-55 °C	Gray	Thermoplastic	Female Socket	Cap (Cover) Sealed	Plug	Latch Lock	8	Free Hanging (In-Line)
