MLEROY Series

Catalog

XLAMP ML-E LIGHT EMITTING DIODE ROYAL BLUE

Part	Thermal Resistance of Package	Current - Max	Size / Dimension Length	Size / Dimension Width	Current - Test	Package / Case	Height - Seated (Max)	Wavelength	Wavelength (Nominal)	Wavelength (Minimum)	Wavelength (Maximum)	Mounting Type	Viewing Angle	Temperature - Test	Luminous Flux (Minimum)	Luminous Flux (Maximum)	Luminous Flux	Color	Voltage - Forward (Vf) (Typ)	Package Name

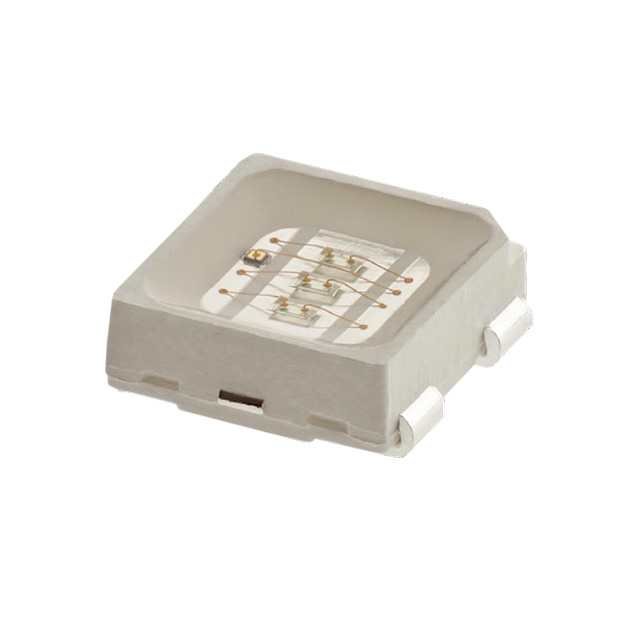

CreeLED, Inc. MLEROY-A1-0000-000506	11 °C/W	350 mA	0.138 in	0.124 in	150 mA	4-SMD J-Lead Exposed Pad	0.052 in	463 nm	463 nm	460 nm	465 nm	Surface Mount	125 °	25 °C	175 mW	210 mW	193 mW	Blue	3.2 V	SMD
CreeLED, Inc. MLEROY-A1-0000-000502	11 °C/W	350 mA	0.138 in	0.124 in	150 mA	4-SMD J-Lead Exposed Pad	0.052 in	455 nm	455 nm	450 nm	460 nm	Surface Mount	125 °	25 °C	175 mW	210 mW	193 mW	Blue	3.2 V	SMD
CreeLED, Inc. MLEROY-A1-0000-000505	11 °C/W	350 mA	0.138 in	0.124 in	150 mA	4-SMD J-Lead Exposed Pad	0.052 in	458 nm	458 nm	455 nm	460 nm	Surface Mount	125 °	25 °C	175 mW	210 mW	193 mW	Blue	3.2 V	SMD
