YK66C Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

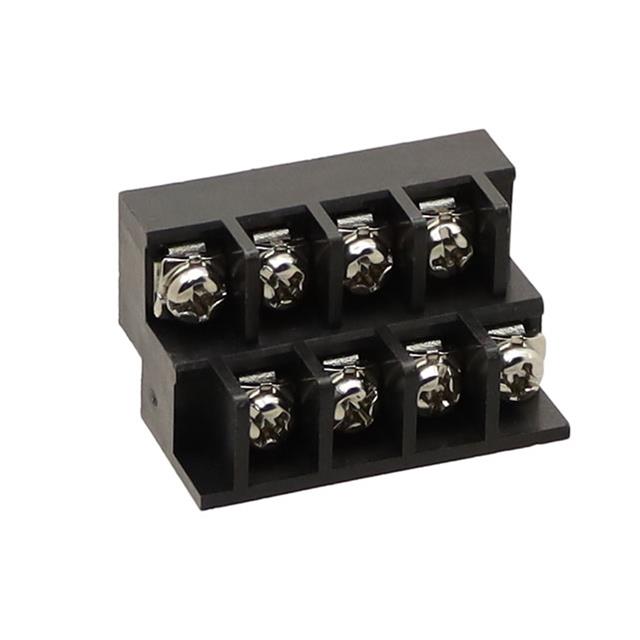

BARRIER TERMINAL BLOCKS 2X4, 8PO
| Part | Terminal Screw Finish | Terminal Screw Material | Material - Insulation | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Material Flammability Rating | Terminal Block Type | Current Rating | Pitch | Top Termination | Number of Wire Entries | Number of Rows | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Barrier Type | Voltage Rating | Bottom Termination | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Nickel | Steel | PBT Polybutylene Terephthalate | Through Hole | 130 °C | -40 °C | UL94 V-0 | Barrier Block | 10 A | 0.3 in | Screws with Captive Plate | 8 | 2 | 26 AWG | 16 AWG | 3 Wall (Tri) | 300 VAC/DC | PC Pin | 4 |
