ADG5436 Series

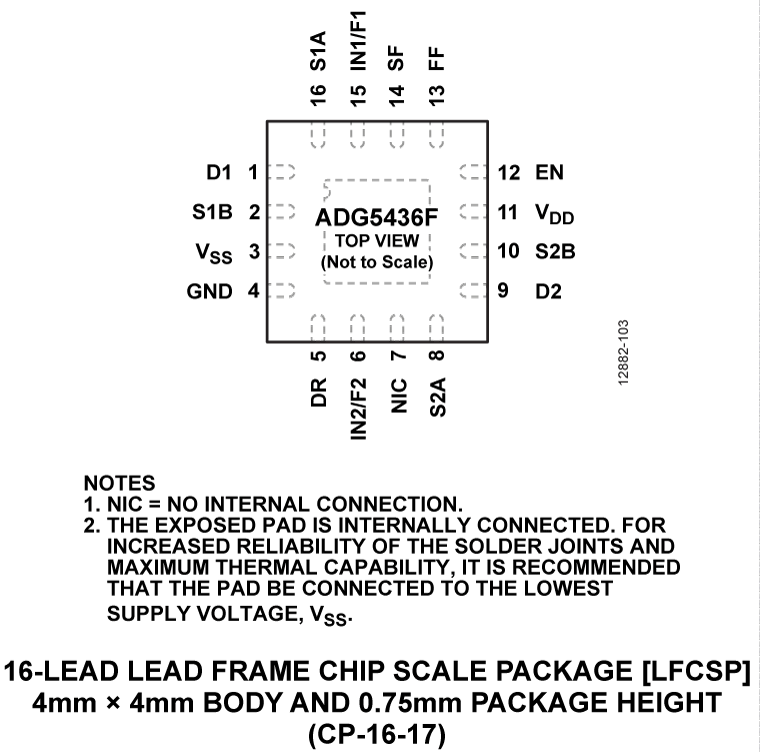

The ADG5436 is a monolithic CMOS device containing two independently selectable single-pole/double-throw (SPDT) switches. An EN input on the LFCSP package enables or disables the device. When disabled, all channels switch off. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. Both switches exhibit break-before-make switching action for use in multiplexer applications.The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals.Product HighlightsTrench isolation guards against latch-up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.Low RON.Dual-supply operation. For applications where the analog signal is bipolar, the ADG5436 can be operated from dual supplies up to ±22 V.Single-supply operation. For applications where the analog signal is unipolar, the ADG5436 can be operated from a single-rail power supply up to 40 V.3 V logic compatible digital inputs: VINH= 2.0 V, VINL= 0.8 V.No VLlogic power supply required.ApplicationsRelay replacementAutomatic test equipment Data acquisitionInstrumentationAvionics Audio and video switchingCommunication systems
