338314 Series

Catalog

CONN D-SUB RCPT 15POS VERT SLDR

Part	Termination	Features	Current Rating	Number of Rows	Material Flammability Rating	Connector Type	Contact Type	Flange Feature	Contact Finish	Mounting Type	Shell Size	Connector Layout	Number of Positions	Connector Style	Finish	Shell Material	Color	Dielectric Material	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)

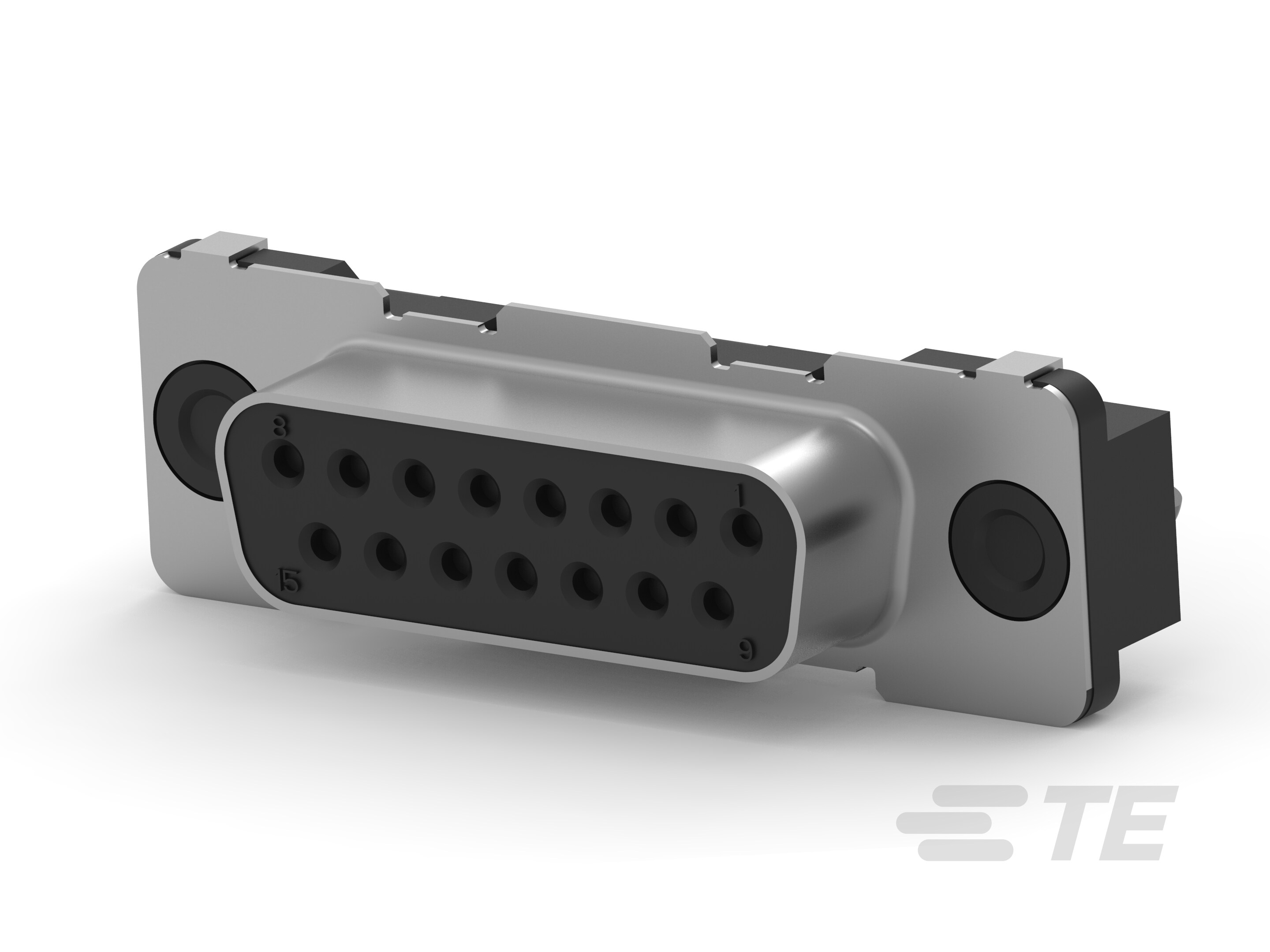

TE Connectivity AMP Connectors 1-338314-2	Solder	Board Lock	6 A	2	UL94 V-0	Female Sockets Receptacle	Signal	Housing Shell (4-40)	Gold	Through Hole	2	A DA	15	D-Sub	Tin Plated	Steel	Black	Glass Filled Polyester	Phosphor Bronze	-55 °C	105 °C
TE Connectivity AMP Connectors 3-338314-2	Solder	Board Lock	6 A	2	UL94 V-0	Female Sockets Receptacle	Signal	Female Screwlock (4-40) Mating Side	Gold	Through Hole	2	A DA	15	D-Sub	Tin Plated	Steel	Black	Glass Filled Polyester	Phosphor Bronze	-55 °C	105 °C

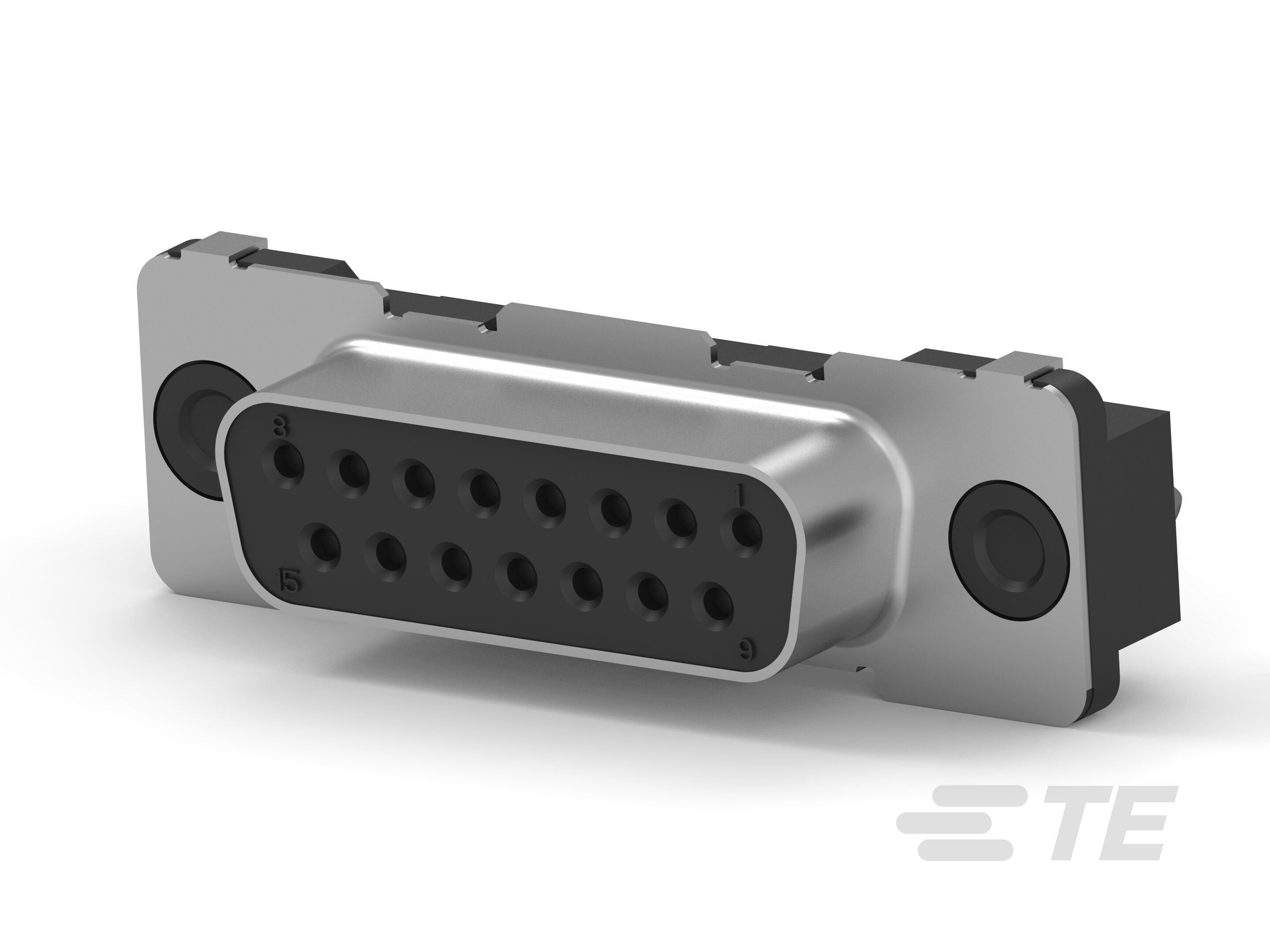

TE Connectivity AMP Connectors 6-338314-2	Solder		6 A	2	UL94 V-0	Female Sockets Receptacle	Signal	Housing Shell (4-40)	Gold	Through Hole	2	A DA	15	D-Sub	Tin Plated	Steel	Black	Glass Filled Polyester	Phosphor Bronze	-55 °C	105 °C
