8-03PMMP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

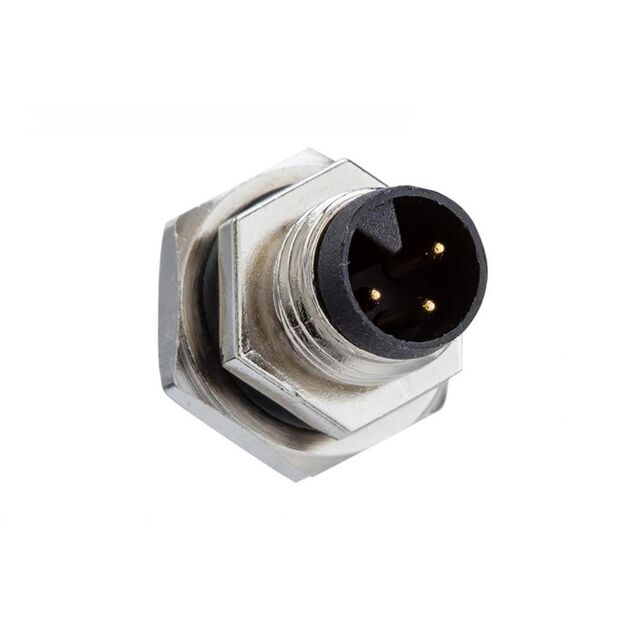

M8 CONN
| Part | Fastening Type | Connector Type | Operating Temperature (Min) | Operating Temperature (Max) | Termination | Ingress Protection Description | Ingress Protection IP Rating | Color | Material Flammability Rating | Mounting Feature | Mounting Type | Primary Material | Number of Positions | Shell Size - Insert | Current Rating | Contact Material | Voltage Rating | Orientation | Contact Finish - Mating | Shielding | Shell Material | Shell Finish | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Threaded | Male Pins Receptacle | -40 °C | 105 °C | Solder | Dust Tight Waterproof | IP67 | Silver | UL94 V-0 | Bulkhead Front Side Nut | Panel Mount Through Hole | Metal | 3 | M8-3 | 3 A | Copper Alloy | 60 V | Keyed | Gold | Shielded | Zinc Alloy | Nickel | Glass Filled Nylon PA Polyamide |
