B24B-XAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

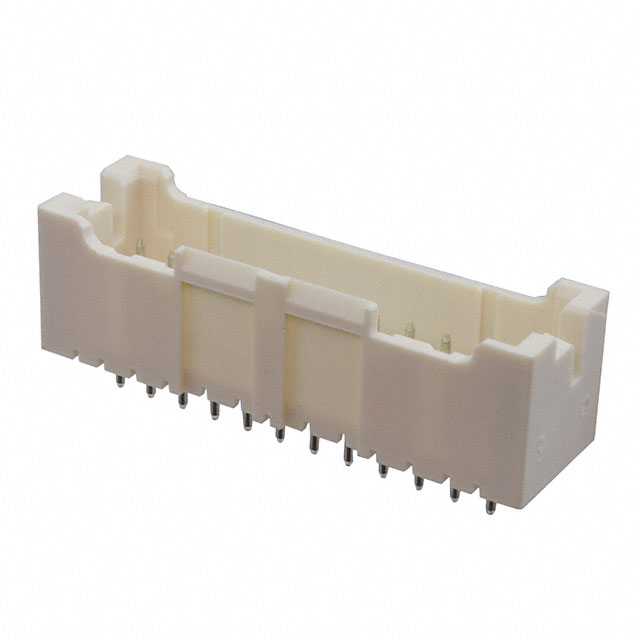

CONN HEADER VERT 24POS 2.5MM
| Part | Pitch - Mating | Number of Positions Loaded | Voltage Rating | Insulation Material | Contact Material | Contact Length - Post | Insulation Height | Insulation Color | Current Rating | Mounting Type | Contact Finish - Post | Operating Temperature (Max) | Operating Temperature (Min) | Termination | Contact Type | Row Spacing - Mating | Number of Positions | Connector Type | Contact Finish - Mating | Features | Material Flammability Rating | Shrouding | Contact Shape | Style | Fastening Type | Number of Rows | Mated Stacking Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.098 in | All | 250 V | Glass Filled Nylon 6/6 Polyamide (PA66) | Copper Alloy | 0.138 in | 0.398 in | Natural | 3 A | Through Hole | Tin | 85 °C | -25 °C | Solder | Male Pin | 0.098 in | 24 pos | Header | Tin | Board Guide | UL94 V-0 | Shrouded - 4 Wall | Circular | Board Cable/Wire | Locking Ramp | 2 | |
 JST Sales America Inc. | 0.098 in | All | 250 V | Glass Filled Nylon 6/6 Polyamide (PA66) | Copper Alloy | 0.138 in | 0.398 in | Natural | 3 A | Through Hole | Tin | 85 °C | -25 °C | Solder | Male Pin | 0.098 in | 24 pos | Header | Tin | UL94 V-0 | Shrouded - 4 Wall | Circular | Board Cable/Wire | Locking Ramp | 2 | 13.8 mm |
