RT06104 Series

Catalog

PLUG, 4 POSITION, FEMALE, SHELL

Part	Primary Material	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Shielding	Housing Color	Shell Size - Insert Width	Shell Size - Insert Length	Contact Shape	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Contact Size	Material Flammability Rating	Fastening Type	Contact Type	Mounting Type	Type	Connector Type	Note	Features	Shell Finish	Orientation	Cable Opening (Min)	Cable Opening (Max)	Contact Material	Plating	Backshell Material	Color	Applications	Termination	Current Rating	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Voltage Rating (Type)
McGill Microwave Systems RT06104SNHEC03	Metal	Thermoplastic	125 °C	-40 °C	4	Shielded	Silver	4 mm	10 mm	Circular	Dust Tight Waterproof	IP67	Zinc Alloy	16 S	UL94 V-0	Bayonet Lock	Crimp	Free Hanging (In-Line)	For Female Sockets	Plug Housing	Contacts Not Included	Coupling Nut	Nickel	N (Normal)
McGill Microwave Systems RT06104PNH03SS-K	Metal	Nylon 6/6 PA66 Polyamide	105 °C	-40 °C	4	Shielded		4 mm	10 mm		Dust Tight Water Resistant Waterproof	IP67 IP69K	Zinc Die Cast		UL94 V-0	Bayonet Lock		Free Hanging (In-Line)		Male Pins Plug		Backshell Coupling Nut	Nickel	N (Normal)	0.118 in	0.256 in	Brass	Nickel	Zinc Die Cast	Silver	Aerospace Automation Industrial Telecom Transportation	Crimp	13 A	250 V	Gold	Flash

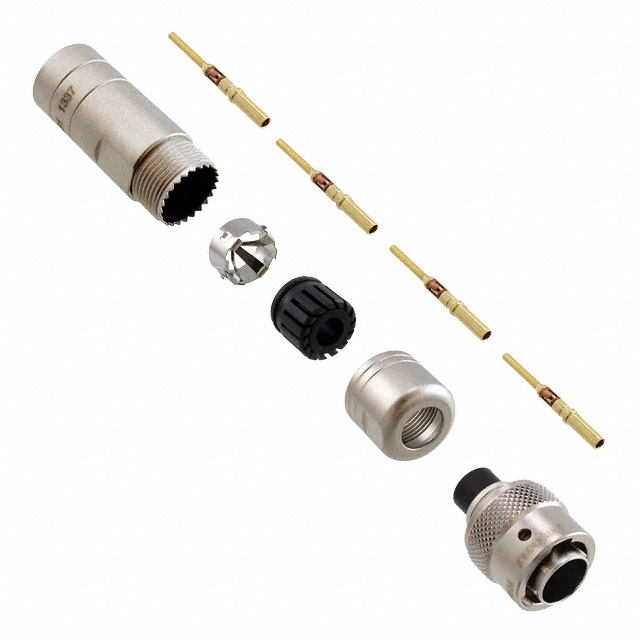

McGill Microwave Systems RT06104PNH-K	Metal		105 °C	-40 °C	4			4 mm	10 mm		Dust Tight Waterproof	IP67	Zinc Die Cast			Bayonet Lock		Free Hanging (In-Line)		Male Pins Plug			Nickel	N (Normal)						Silver		Crimp	13 A	250 V	Gold	Flash	DC

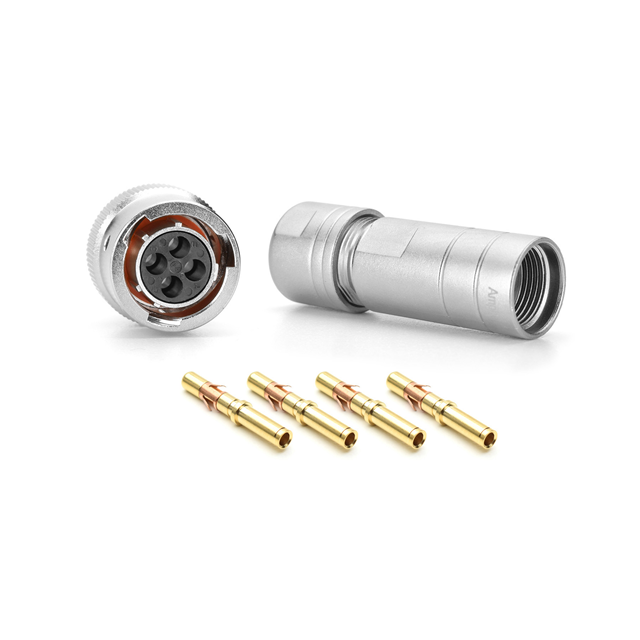

McGill Microwave Systems RT06104SNH03SS-K	Metal	Nylon 6/6 PA66 Polyamide	105 °C	-40 °C	4	Shielded		4 mm	10 mm		Dust Tight Water Resistant Waterproof	IP67 IP69K	Zinc Die Cast		UL94 V-0	Bayonet Lock		Free Hanging (In-Line)		Female Sockets Plug		Backshell Coupling Nut	Nickel	N (Normal)	0.118 in	0.256 in	Brass	Nickel	Zinc Die Cast	Silver	Aerospace Automation Industrial Telecom Transportation	Crimp	13 A	250 V	Gold	Flash

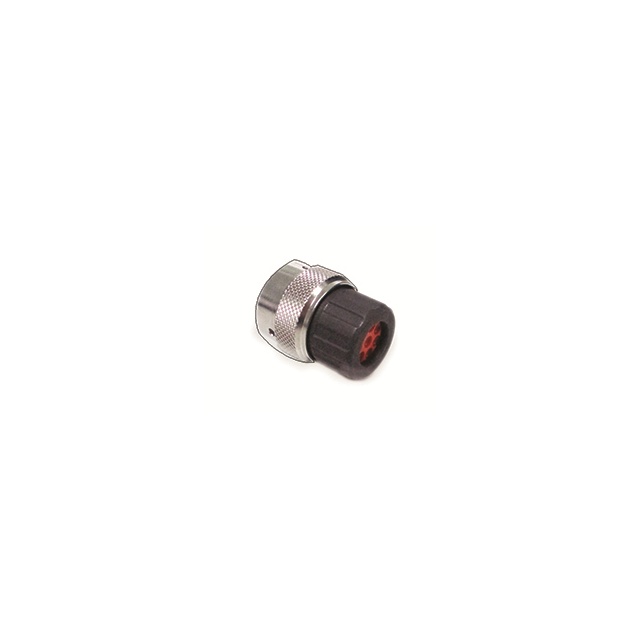

McGill Microwave Systems RT06104SNHEC		Thermoplastic	105 °C	-40 °C	4	Shielded	Silver	4 mm	10 mm	Circular	Dust Tight Waterproof	IP67	Zinc Alloy	16 S	UL94 V-0	Bayonet Lock	Crimp	Free Hanging (In-Line)	For Female Sockets	Plug Housing	Contacts Not Included	Backshell Coupling Nut	Nickel	N (Normal)
McGill Microwave Systems RT06104PNH		Thermoplastic	105 °C	-40 °C	4	Shielded	Silver	4 mm	10 mm	Circular	Dust Tight Waterproof	IP67	Zinc Alloy	16 S	UL94 V-0	Bayonet Lock	Crimp	Free Hanging (In-Line)	For Male Pins	Plug Housing	Contacts Not Included	Coupling Nut	Nickel	N (Normal)
