Q-040040 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

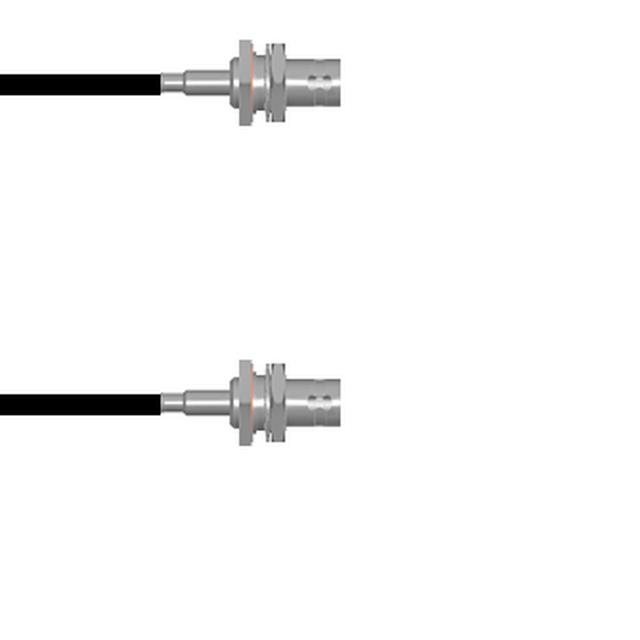

CBL ASSY BNC JACK TO JACK 9.843"
| Part | Length | 1st Connector Mounting Type | Color | 1st Contact Gender | 2nd Connector Mounting Feature | Style | 2nd Contact Gender | 2nd Connector | Frequency - Max | Cable Type | 1st Connector | 2nd Connector Mounting Type | 1st Connector Mounting Feature | Overall Impedance | Features | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 9.843 in | Panel Mount | Copper | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 316 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | |
 McGill Microwave Systems | 98.4 in | Panel Mount | Black | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 174 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | 8.2 ft |
McGill Microwave Systems | 12 in | Panel Mount | Copper | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 316 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | |
McGill Microwave Systems | 98.4 in | Panel Mount | Copper | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 316 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | 8.2 ft |
McGill Microwave Systems | 9 ft | Panel Mount | Copper | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 316 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | |
McGill Microwave Systems | 0.5 ft | Panel Mount | Copper | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 316 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | |
McGill Microwave Systems | 59.1 in | Panel Mount | Black | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 174 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | 4.9 ft |
McGill Microwave Systems | 36 in | Panel Mount | Copper | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 316 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | |
McGill Microwave Systems | 59.1 in | Panel Mount | Copper | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 316 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded | 4.9 ft |
McGill Microwave Systems | 72 in | Panel Mount | Black | Female | Bulkhead - Front Side Nut | BNC | Female | BNC Jack | 4 GHz | 174 RG | BNC Jack | Panel Mount | Bulkhead Front Side Nut | 50 Ohms | Shielded |
