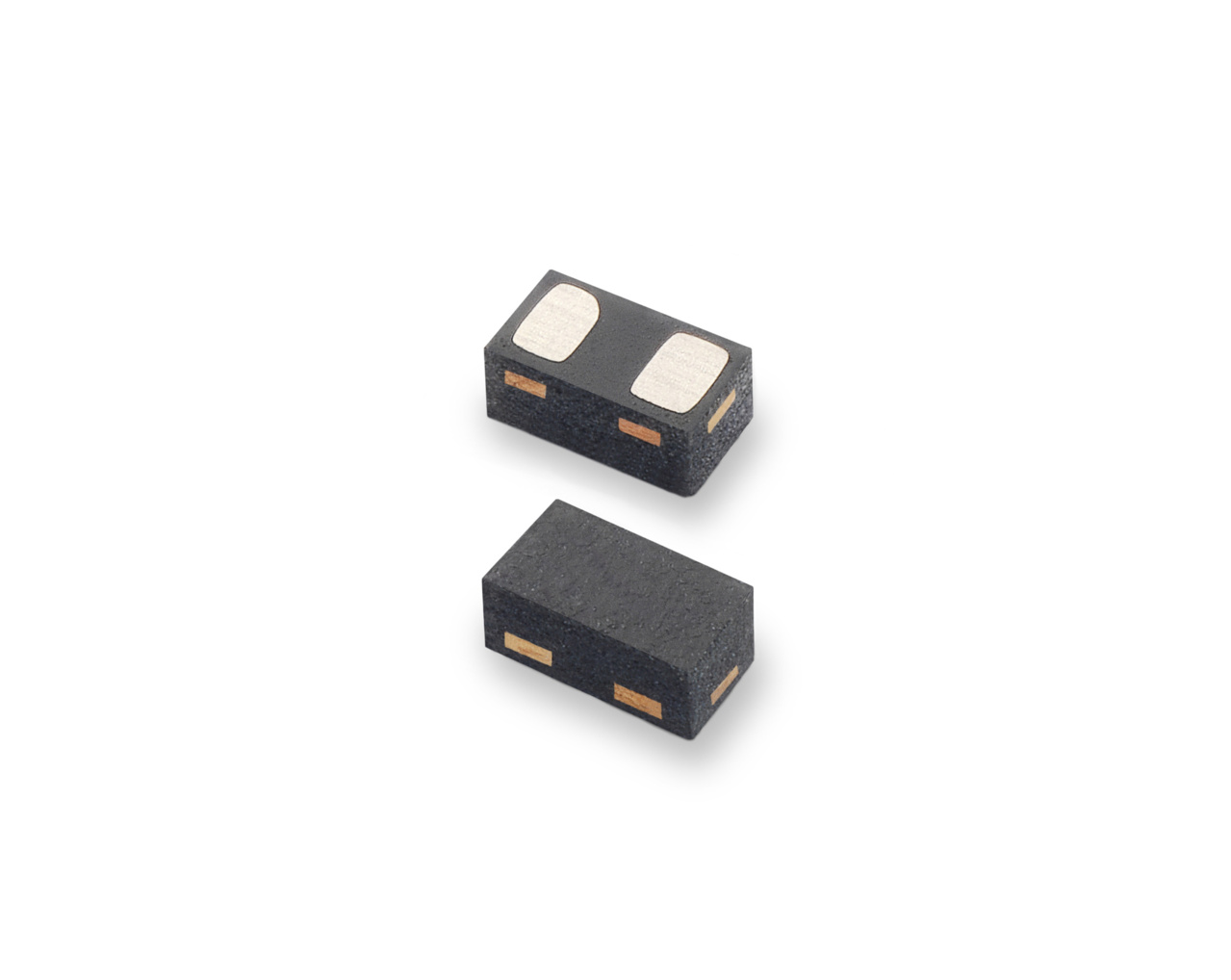

AQ1026-01UTG Series

15pF 30KV Diode Array

Catalog

15pF 30KV Diode Array

Part	Type	Voltage - Clamping (Max) (Typ)	Bidirectional Channels	Current - Peak Pulse	Package Name	Package Width	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Qualification	Voltage - Breakdown (Typ)	Power Line Protection	Grade	Capacitance	Mounting Type	Voltage - Reverse Standoff (Max)	Package / Case
LITTELFUSE AQ1026-01UTG	Zener	13.4 V	1	2 A	2-µDFN	0.3 mm	0.6 mm	125 °C	-40 °C	AEC-Q101	7.8 V	No	Automotive	15 pF	Surface Mount	6 V	0201 (0603 Metric)

Catalog

15pF 30KV Diode Array

Description

The AQ1026 back-to-back diodes are fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The AQ1026 TVS can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation. Additionally, each diode can safely dissipate 5A of 8/20μs surge current (IEC 61000-4-5 2nd edition) with very low clamping voltages.
