FJ9STST Series

Catalog

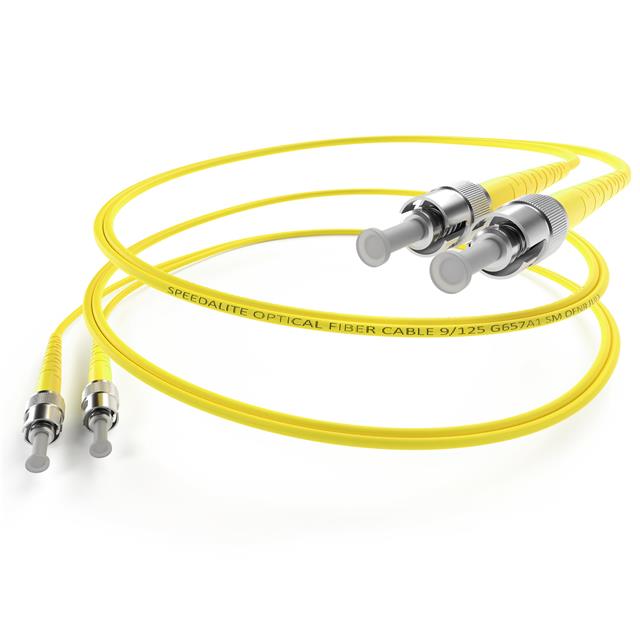

SINGLEMODE ST TO ST FIBER 12M

Part	Features	Cable Diameter	Type	Return Loss	Fiber Core Diameter	Fiber Cladding Diameter	Cable Type	2nd Connector Count	2nd Connector	Ratings	Jacket (Insulation) Material	1st Connector Quantity	1st Connector	Length - Overall	Color - Cable	Operating Temperature (Max)	Operating Temperature (Min)	Color - Connectors	Insertion Loss	Bend Radius
UNC Group, LLC FJ9STST-12M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode	55 dB	9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR	Poly-Vinyl Chloride (PVC)	2	ST	39.4 ft	Yellow	60 °C	-20 °C	Yellow	0.2 dB	10 mm
UNC Group, LLC FJ9STST-07M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode	55 dB	9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR	Poly-Vinyl Chloride (PVC)	2	ST	23 ft	Yellow	60 °C	-20 °C	Yellow	0.2 dB	10 mm
UNC Group, LLC FJ9STST-04M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode		9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR		2	ST	13.1 ft
UNC Group, LLC FJ9STST-06M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode	55 dB	9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR	Poly-Vinyl Chloride (PVC)	2	ST	19.7 ft	Yellow	60 °C	-20 °C	Yellow	0.2 dB	10 mm
UNC Group, LLC FJ9STST-20M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode		9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR		2	ST	65.6 ft
UNC Group, LLC FJ9STST-09M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode		9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR		2	ST	29.5 ft
UNC Group, LLC FJ9STST-04M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode	55 dB	9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR	Poly-Vinyl Chloride (PVC)	2	ST	13.1 ft	Yellow	60 °C	-20 °C	Yellow	0.2 dB	10 mm
UNC Group, LLC FJ9STST-25M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode	55 dB	9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR	Poly-Vinyl Chloride (PVC)	2	ST	82 ft	Yellow	60 °C	-20 °C	Yellow	0.2 dB	10 mm
UNC Group, LLC FJ9STST-06M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode		9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR		2	ST	19.7 ft
UNC Group, LLC FJ9STST-30M	Dust Cap Riser Zipcord	0.08 "	Duplex OS2 Singlemode		9 µm	125 µm	Bend Insensitive Fiber (BIF) Twin Zip	2 pcs	ST	OFNR		2	ST	98.4 ft
