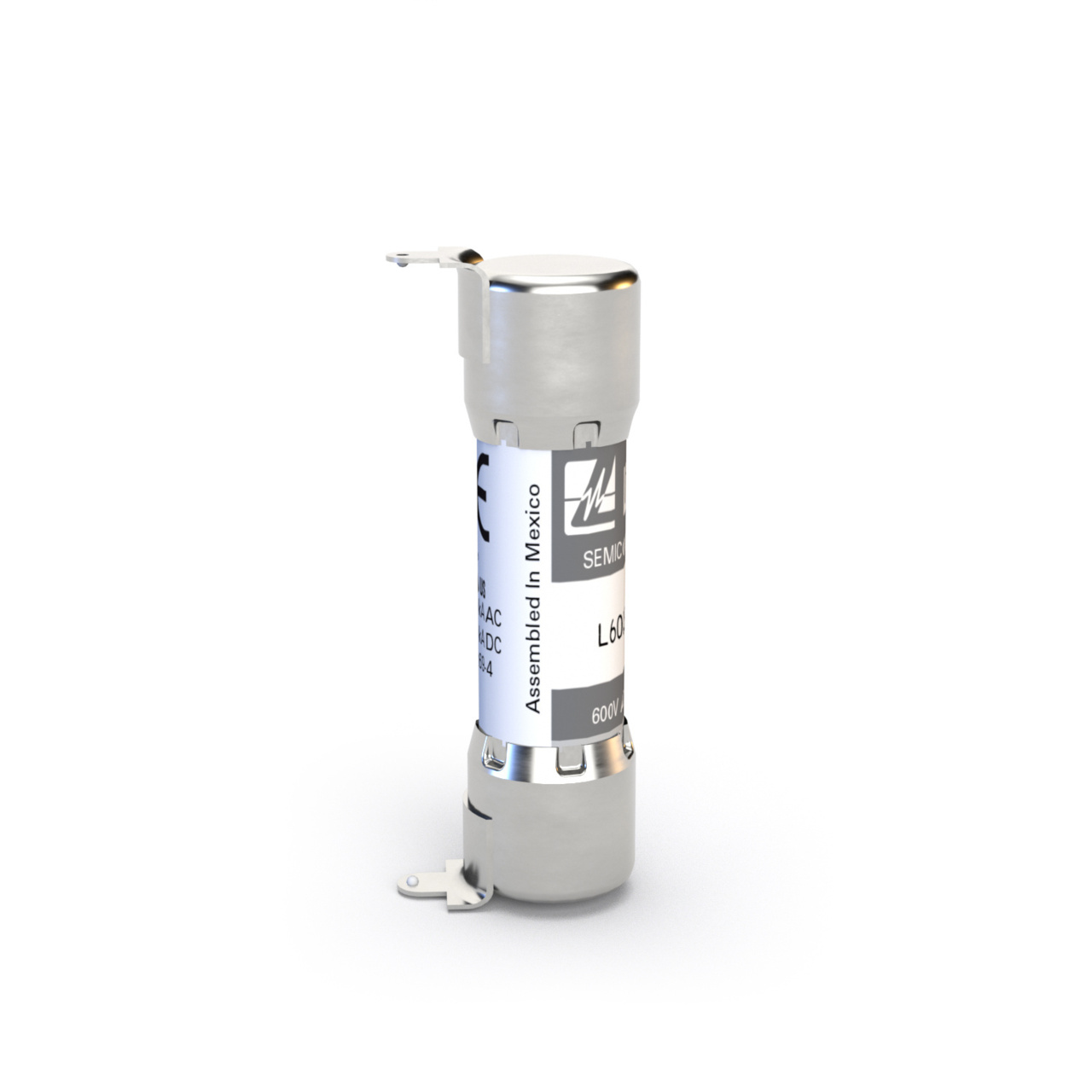

L60QS040R Series

HSF 10X38 CYL PCB 600V AC/DC 40A

Catalog

HSF 10X38 CYL PCB 600V AC/DC 40A

Part	Melting I²t	DC Cold Resistance	Applications	Package Diameter	Package / Case	Package Name	Package Length	Package Width	Voltage Rating - AC	Fuse Type	Breaking Capacity (AC)	Breaking Capacity (DC)	Approval Agency	Current Rating	Voltage Rating - DC	Size / Dimension Length	Size / Dimension Diameter	Response Time	Class	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type
LITTELFUSE L60QS040.HXR	277	0.0025 Ohms	Electrical Industrial	10 mm 38.1 mm	10mm x 38.1mm 5AG	5AG	10 mm	38.1 mm	600 VAC	Cartridge	200 kA	100 kA	CE cURus	40 A	600 V	1.496 in	0.406 in	Fast Blow	aR	125 °C	-55 °C	Requires Holder

Catalog

HSF 10X38 CYL PCB 600V AC/DC 40A

Description

The Littelfuse QS series of High-speed Semiconductor Fuses is designed to safeguard power semiconductor devices.These cylindrical-shaped, 10x38 mm fuses with higher current ratings, are fast-acting and extremely current limiting. Theyprovide balanced performance and reliable short-circuit protection to extend product longevity while lowering potentiallydamaging heat energy to the device being protected.
